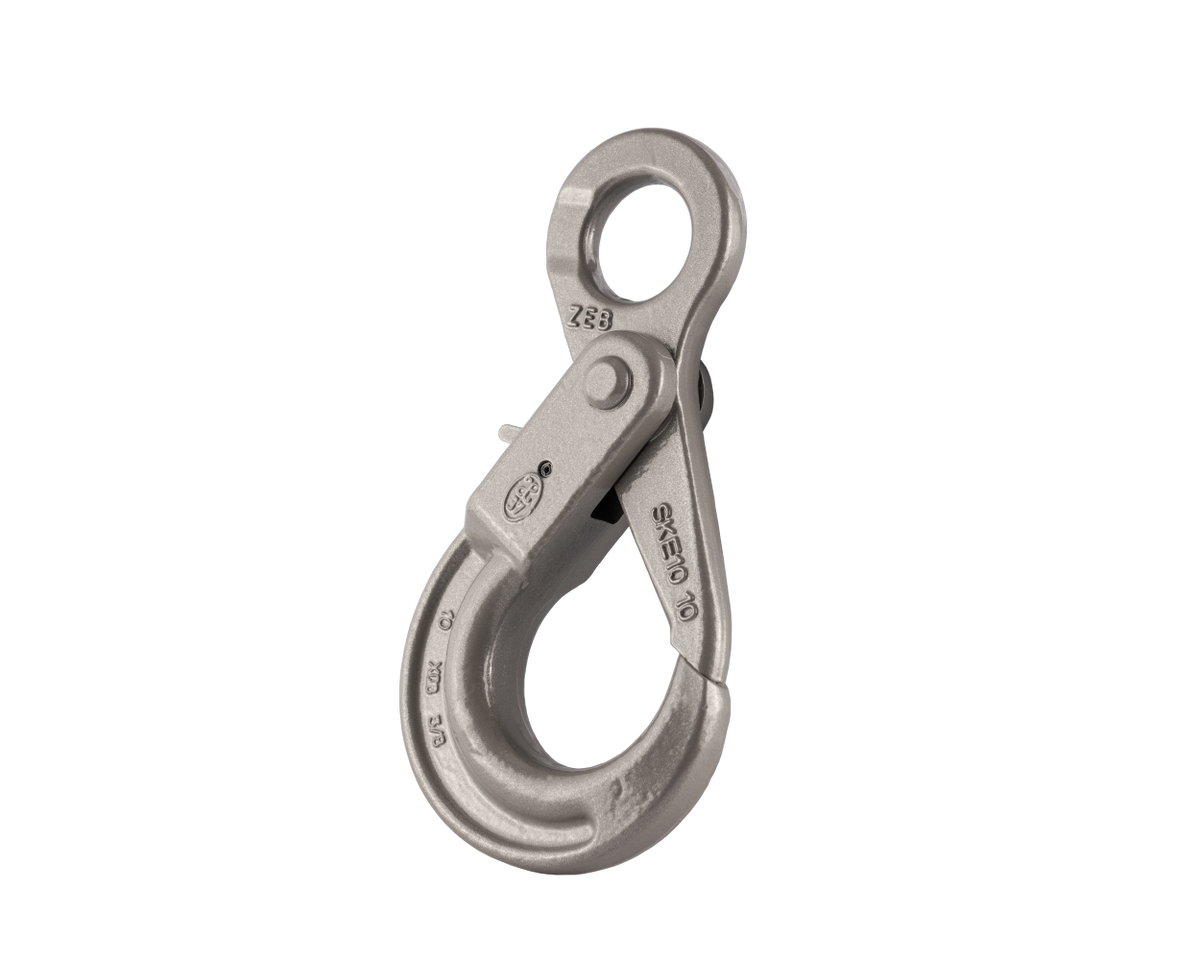

Kito Weissenfels Grade 10 Eye Self Locking Hook
Available in chain diameters: 6mm / 7-8mm / 10mm / 13mm / 16mm
Eye design with Self Locking Hook
Suitable for use with G10 chain/wire rope slings
Meets BS EN 1677-3 +25% of loads
Come with full traceability markings

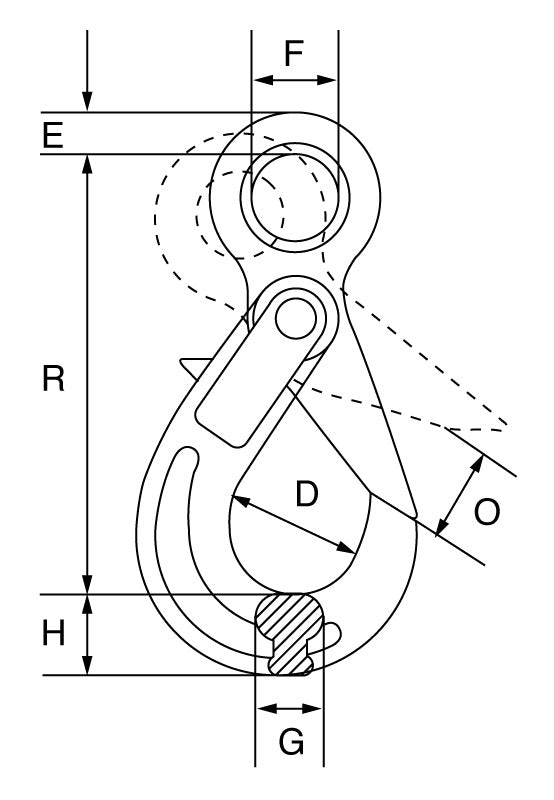

| Product Code | Part No. | Chain Dia | D | E | F | G | H | O | R |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| G10ESLH6 | SKE6 | 6 | 35 | 13 | 35 | 16 | 20.5 | 28 | 110 |
| G10ESLH8 | SKE7-8 | 7/8 | 43.5 | 13 | 35 | 20 | 26 | 34 | 136 |
| G10ESLH10 | SKE10 | 10 | 56 | 16 | 42 | 24.5 | 30 | 45 | 168.5 |
| G10ESLH13 | SKE13 | 13 | 69 | 20 | 49 | 34.5 | 40 | 51.5 | 205 |
| G10ESLH16 | SKE16 | 16 | 80 | 24 | 60 | 35.5 | 50 | 60 | 251.5 |
| G10ESLH20 | SKE19-20 | 19/20 | 101 | 30 | 60 | 46 | 61 | 77 | 306 |
| G10ESLH22 | SKE22 | 22 | 110 | 32 | 70 | 51 | 67 | 84 | 340 |
Technical Data
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 6 | 1.4 | 35.3 | 56.5 | 0.53 |
| 7/8 | 2.5 | 62.8 | 100 | 0.89 |
| 10 | 4 | 98.2 | 157 | 1.58 |
| 13 | 6.7 | 166 | 265 | 3.16 |
| 16 | 10 | 251 | 402 | 6.05 |
| 19/20 | 14 | 393 | 628 | 11 |
| 22 | 19 | 475 | 760 | 15 |
