In stock
SKU: GRA003617

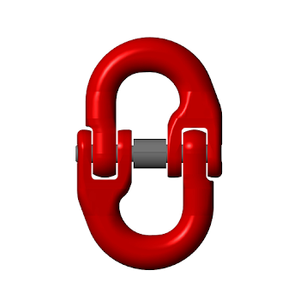

Grade 80 Component Connector

From: £4.96
  • Grade 80, alloy steel
  • Red painted finish
  • Meets the WLL performance requirements of EN1677-1
  • Minimum breaking load is 4 times the W.L.L.
Final Configuration Price:
From: £4.96
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Available from UK up to 22mm. Larger sizes available upon request or available in European grade.

  • Grade 80, alloy steel
  • Red painted finish
  • Meets the WLL performance requirements of EN1677-1
  • Minimum breaking load is 4 times the W.L.L.

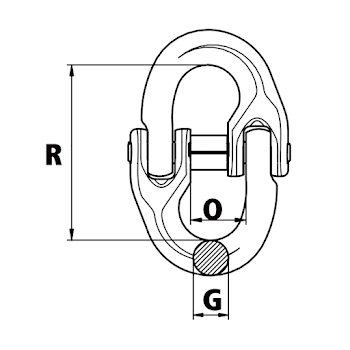

Product Code Model No. Chain Dia O R G
    mm mm mm mm
G80CC8 K1610 7/8 18 62.5 8.5
G80CC10 K1603 10 25 68 10.8
G80CC13 K1604 13 29 87 15
G80CC16 K1605 16 34.5 108.4 19.8
G80CC20 K1606 20 41 121.5 24
G80CC22 K1607 22 48 141.5 26
G80CC26* - 26 57.5 158 30
G80CC32* - 32 67 205 37



Technical Data

Chain Dia Working Load Limit Proof Load Minimum Breaking Load Weight
mm t t t kgs
7/8 2.00 4.00 8.00 0.146
10 3.15 6.30 12.60 0.3
13 5.30 10.60 21.20 0.7
16 8.00 16.00 32.00 1.1
20 12.5 25.00 50.00 1.8
22 15.00 30.00 60.00 3.2
26 21.2 42.4 84.8 4.5
32 31.5 63 126 9
