In stock
SKU: GRA003628

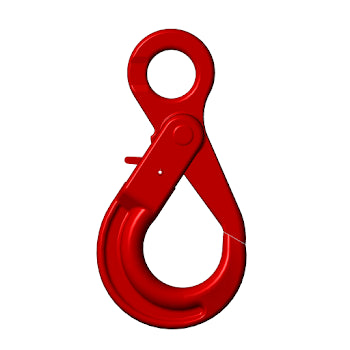

Grade 80 Eye Type Self Locking Hook

From: $27.00
  • Grade 80, alloy steel - to suit grade 80 chain assemblies or a useful wire rope assembly
  • Red painted finish
  • Meets the WLL performance requirements of EN1677-3
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with manufacturers identification, material grade, size and part number
  • Spare triggers available
Final Configuration Price:
From: $27.00
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Our alloy products are manufactured in conformity with common international technical standards and meet the essential safety requirements of the Machinery Directive 2006/42/EC

Certificate of conformity included in purchase

  • Grade 80, alloy steel - to suit grade 80 chain assemblies or a useful wire rope assembly
  • Red painted finish
  • Meets the WLL performance requirements of EN1677-3
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with manufacturers identification, material grade, size and part number
  • Spare triggers available

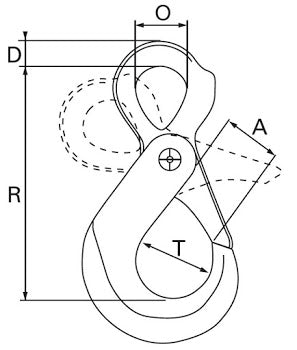

Product Code Model No. Chain Dia O A T R D
    mm mm mm mm mm mm
G80ESLH8 K1851 7/8 25 30.4 35 136 12
G80ESLH10 K1852 10  34.5 48 45 168 14
G80ESLH13 K1853 13  40 54 52.5 207 18
G80ESLH16 K1854 16  50 47 63.3 254 22
G80ESLH20 K1855 20  64.5 54 86 274.5 -
G80ESLH22 K1856 22  70 59.4 76 319 -



Technical Data

Chain Dia Working Load Limit Proof Load Minimum Breaking Load Weight
mm t t t kgs
7/8 2.00 4.00 8.00  0.88
10 3.15 6.30 12.60  1.58
13 5.30 10.60 21.20  3.00
16 8.00 16.00 32.00  5.90
20 12.50 25.00 50.00  8.50
22 15.00 30.00 60.00 13.00
