In stock
SKU: MCK000001

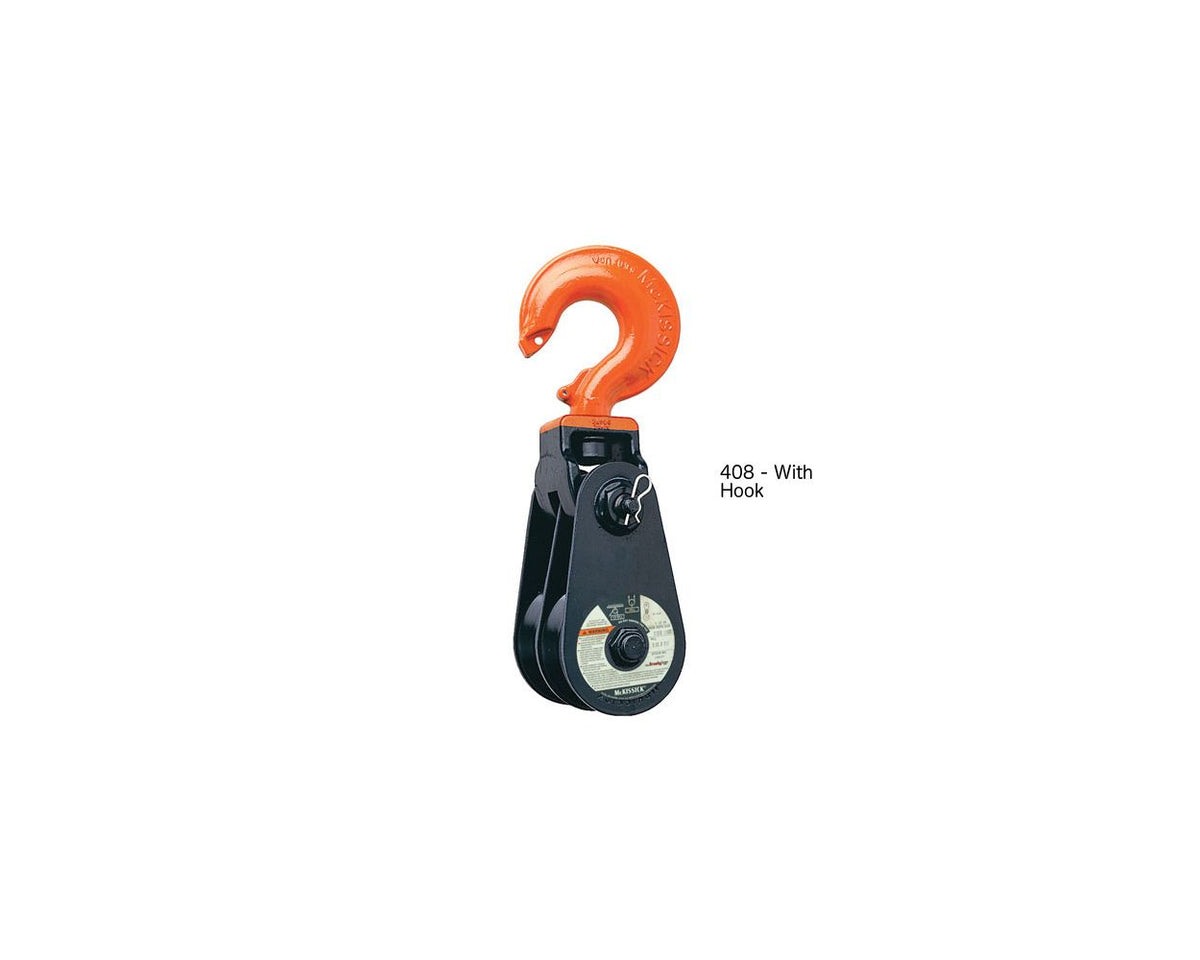

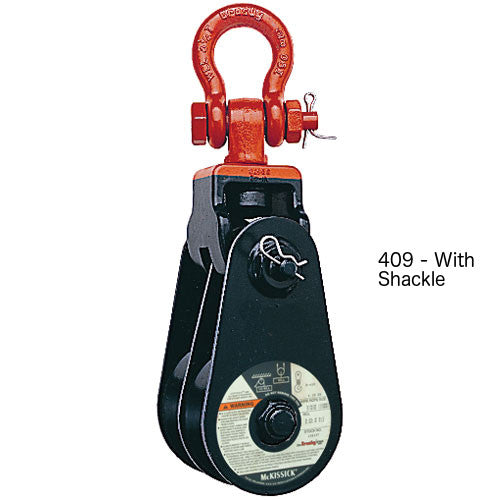

McKissick 408-409 Double Sheave Block

From: £611.08
  • Up to 356 mm Sheave Diameter
  • Up to 19mm Wireline Size
  • Up to 12,000kg Working Load Limit
Final Configuration Price:
£611.08
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout



NOTE: During Black Friday Week delivery might take a little longer due to the increased demand of our Black Friday sale. We thank you for your patience and we'll do our very best to get you your items as soon as we can.



DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The McKissick 408 And 409 Double Sheave Block meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these blocks meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.



  • Drop forged swivel hook or swivel shackle
  • Furnished with bronze bushings
  • Opening feature permits easy insertion of wireline in both sheaves with removal of one bolt
  • The 408 is furnished with an S-4320 Hook latch
  • Pressure lube fittings
  • 114mm through to 254mm models are furnished with dual rated wireline sheave
  • Fatigue rated
  • All Sizes are RFID-Equipped
  • Up to 356 mm Sheave Diameter
  • Up to 19mm Wireline Size
  • Up to 12,000kg Working Load Limit

Sheave Diameter (mm) Bearing Type 408 With Hook SKU 409 With Shackle SKU Wireline Size (mm) Working Load Limit (Tonne) Weight 408 With Hook (kg) Weight 409 With Shackle (kg)
114 BB 104025 105022 10-13 4 8.16 8.16
152 BB 104105 105102 16-19 12 20.4 22.7
203 BB 104187 105184 16-19 12 24 26.3
254 BB 104267 105264 16-19 12 31.8 34

    * BB - Bronze Bushed Bearings
