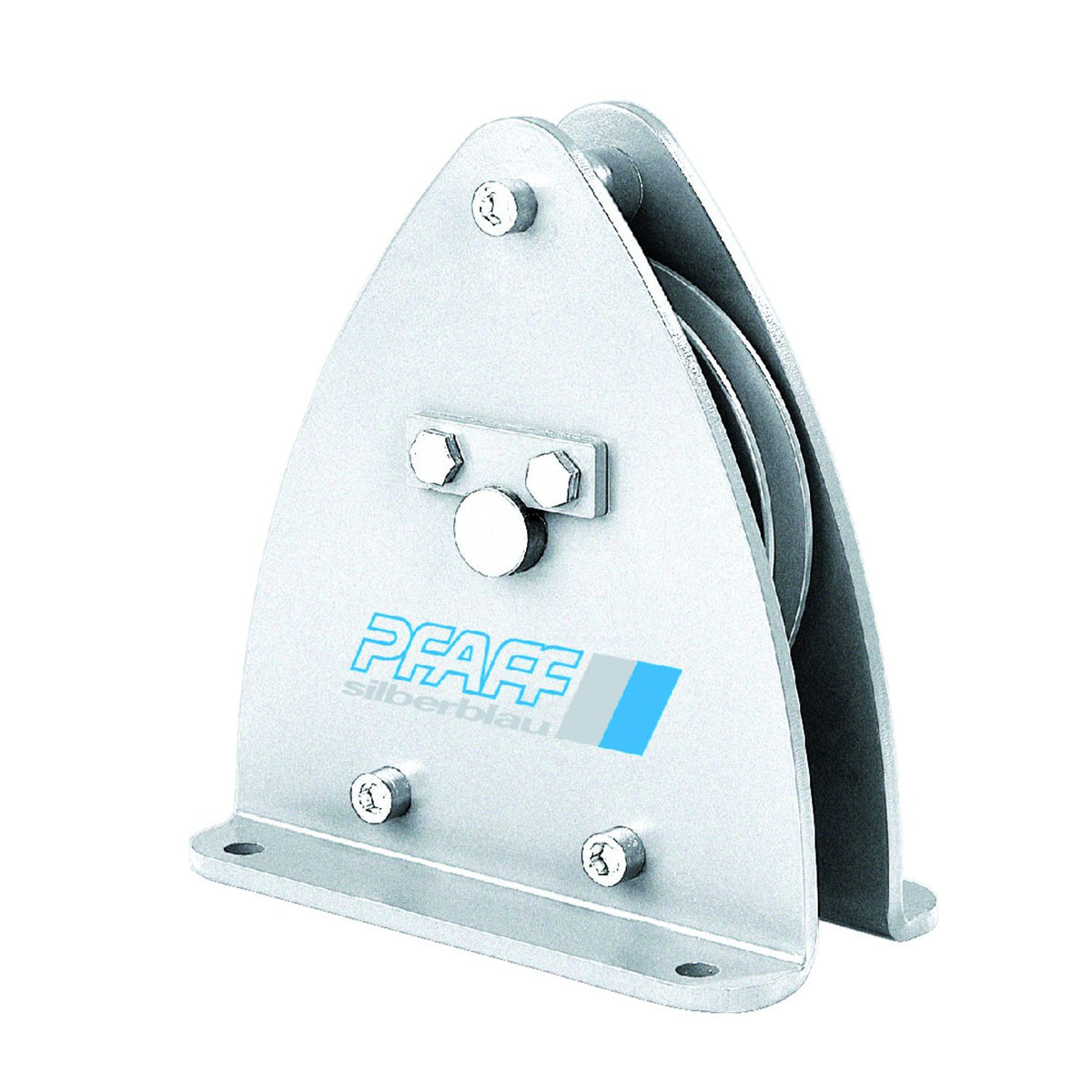

Pfaff DSRB Sheave Blocks
Wire rope sheave block for BETA PROLINE and SILVERLINE winches.
These are guiding with DSRB S wire rope sheave blocks for BETA PROLINE and SILVERLINE manual and electric rope winches. The device boasts variable rope and sheave diameters and cable deflections of up to 180 degrees and is capable of moving loads up to an impressive 8tonnes with ease.
As with all Pfaff products, the device has been designed and manufactured to the highest quality: With a sheave block for manual or powered operation, fully equipped with grease filled sealed ball bearings as standard.
The unit is also wear free due to its perfectly engineered design and high quality materials.
Additional Items (Available on request - please call!)
- Cable suspension gear (1 to 4 strand)
- Sling ropes with loops at both ends
- High strength shackles
- Wire cable blocks with swivel eyes & hooks
- Hinged wire cable blocks
- Wire rope sheave block with plastic sheave
Datasheets

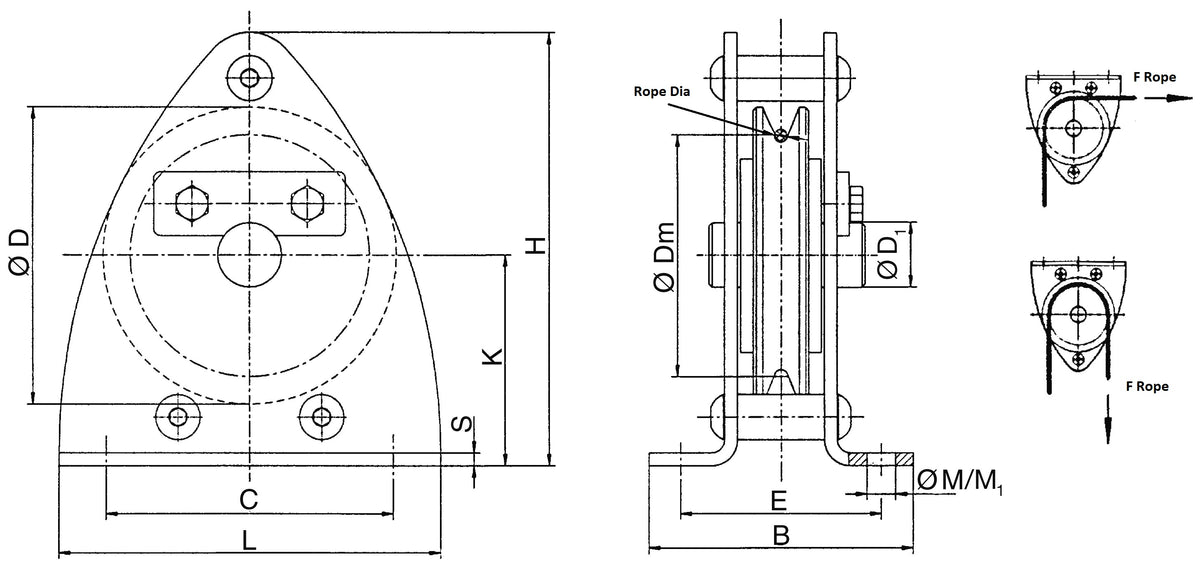

Model | Article number | Rope Ø | D Ø mm |
Dm Ø mm |
Drive group FEM |
Max. tensile load kg at deflection |
D1 Ø mm |
L mm |
C mm |
H mm |
B mm |
E mm |
S mm |
K mm |
M/M1 Ø mm |
||
Manual winch mm |
Electric winch mm |
||||||||||||||||
90 deg | 180 deg | ||||||||||||||||
DSRB S 145/5 DSRB S 145/6 DSRB S 145/7 DSRB S 185/8 DSRB S 185/9 DSRB S 270/12 DSRB S 325/14 DSRB S 400/16 DSRB S 400/18 DSRB S 490/20 |
033447104 033447105 033447106 033447107 033447108 033447111 033447117 033447113 033447114 033447115 |
5 6 7 8 9 9-12 14 13-16 18 20 |
5 6 7 8 9 12 14 16 18 20 |
145 145 145 185 185 270 325 400 400 490 |
125 125 126 160 162 246 297 368 364 450 |
4m 2m 1Am 2m 1Am 2m 2m 3m 2m 3m |
1100 1100 1100 2300 2300 2500 4500 5000 5000 8000 |
800 800 800 1630 1630 1800 3200 3800 3800 6000 |
25 25 25 30 30 40 50 50 50 65 |
200 200 200 245 245 360 440 530 530 650 |
160 160 160 195 195 290 350 430 430 580 |
224 224 224 273 273 407 490 612 612 694 |
125 125 125 138 138 191 260 302 302 313 |
88 88 88 106 106 138 180 212 212 220 |
6 6 6 8 8 10 12 15 15 16 |
110 110 110 135 135 202 242 310 310 340 |
11.5/13 11.5/13 11.5/13 13.5/15 13.5/15 18/20 22/25 26/30 26/30 34/40 |
