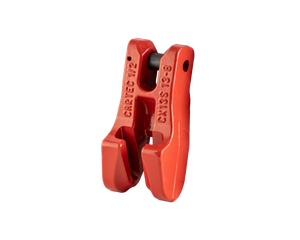

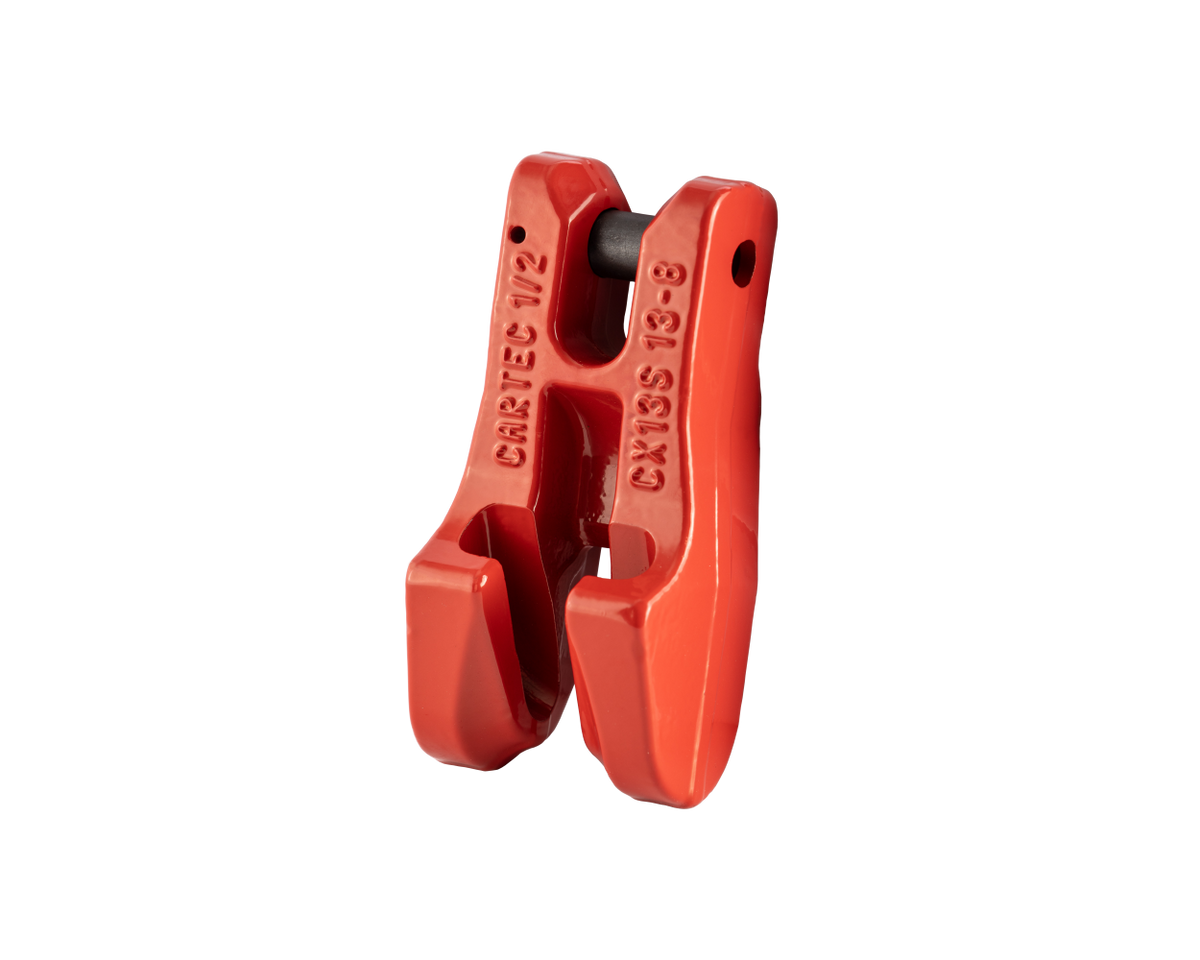

Designed to allow 100% of your chain slings capacity, this Grade 8 Clevis Shortening Clutch from Kito Weissenfels is manufactured from ultra-strong and durable alloy steel, which has been quenched and tempered.
Conforming to BS EN 1677-1, the Clevis fitting enables direct connection to the chain - but for ultimate safe use of this clutch as a shortening device, it MUST be assembled to the master link via three links of chain.
The signature red paint finish offers high visibility, while its extraordinary (-40ºC - +400ºC) temperature range showcases its versatility, highly suited to a wide scope of industrial environments.

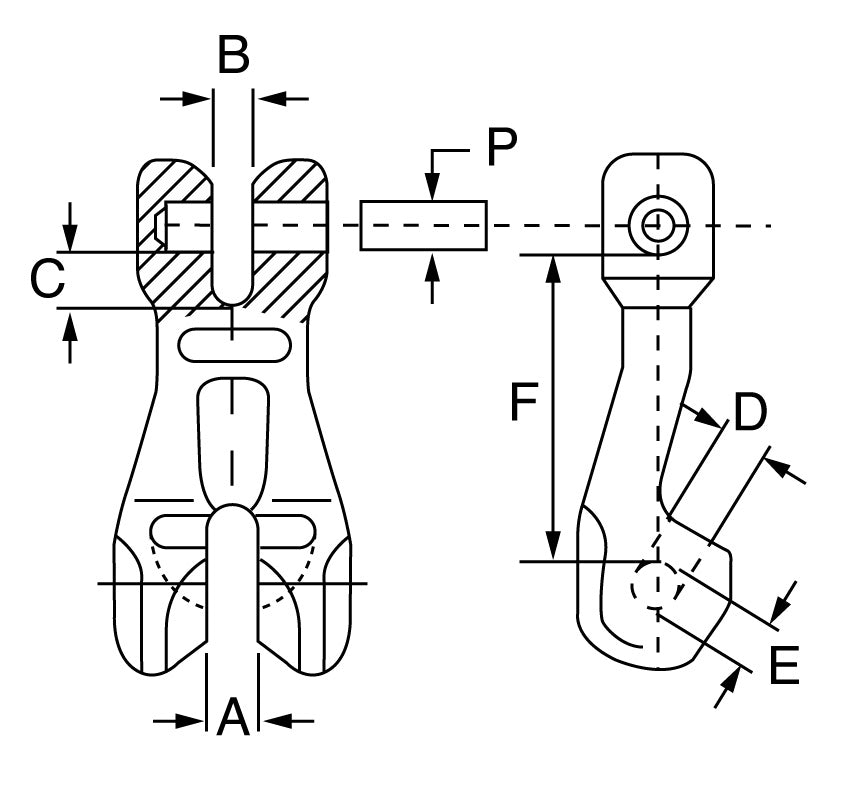

Product Code | Chain Dia | Part No. | A/B | C | D | E | F | P |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | ||
G8CSC8 | 8 | CX08 | 9.5 | 10 | 9.5 | 23.5 | 56 | 10 |
G8CSC10 | 10 | CX10 | 12.5 | 14 | 12 | 25 | 88 | 13 |
G8CSC13 | 13 | CX13 | 16.5 | 17 | 15 | 32.5 | 115 | 16 |
G8CSC16 | 16 | CX16 | 20.5 | 19 | 19 | 39 | 143 | 21 |
Technical Data
Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
---|---|---|---|---|
mm | t | kN | kN | kgs |
8 | 2 | 50.3 | 80.4 | 0.4 |
10 | 3.15 | 78.5 | 126 | 0.94 |
13 | 5.3 | 133 | 212 | 1.92 |
16 | 8 | 201 | 322 | 3.16 |
