In stock
SKU: RED000008

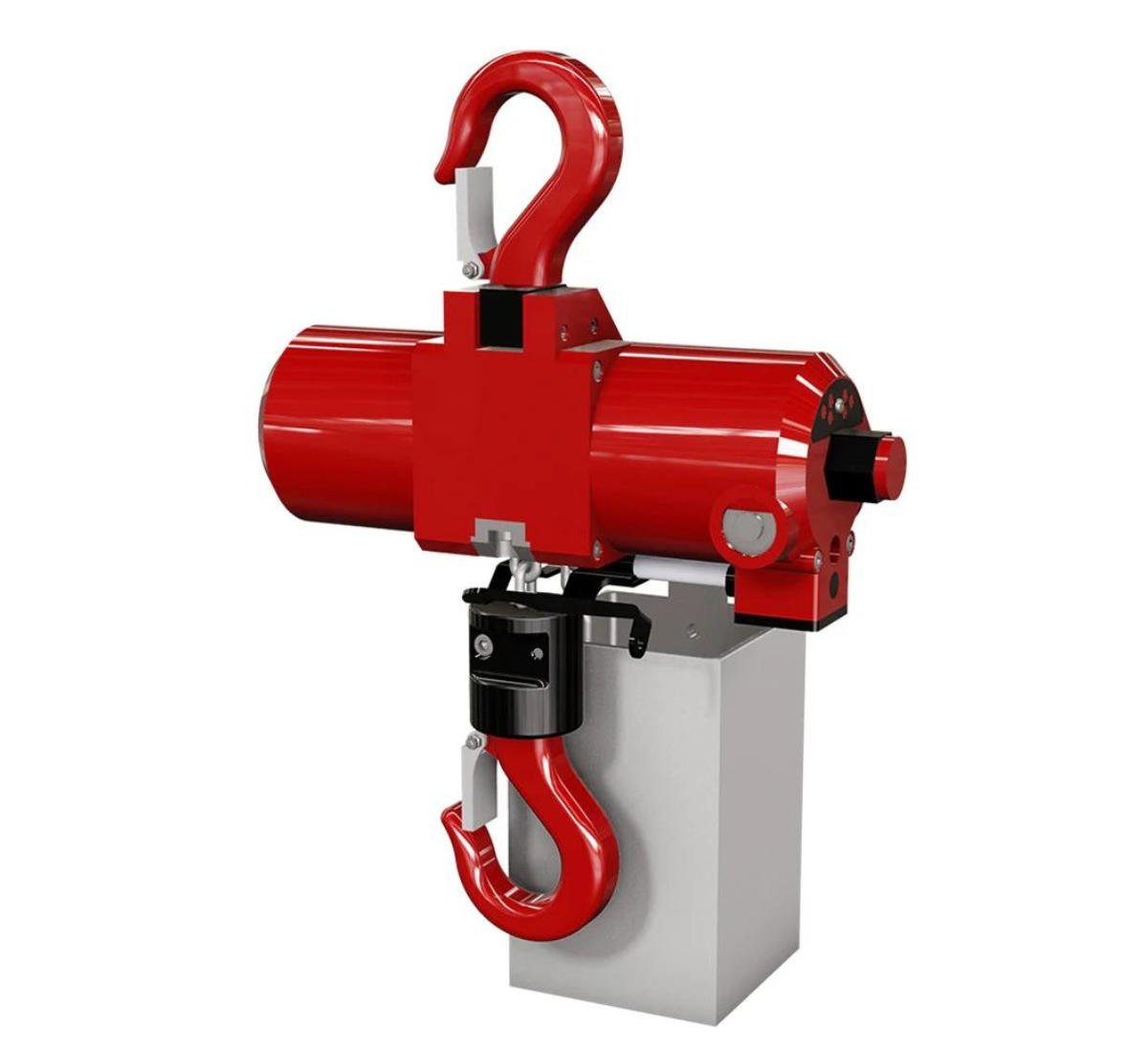

Red Rooster Top Hook Suspension 250kg Mini Air Hoist

From: £2,284.00
  • Compact and lightweight body
  • ATEX zone 2 specification
  • Toku rotary vane motor
  • Robust epicycle gearbox
  • Failsafe automatic internal disc brake
  • Optional: push, geared and pneumatic trollies available on POA
Final Configuration Price:
From: £2,284.00
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The Red Rooster TCR series particularly concentrates on making their air hoists compact and lightweight. Like in previous series the key features are the same but this series also emphases the need for top quality metal and safety catches to ensure no loads fall unwillingly.



What are Air hoists?

Air hoists are ideal for petrochemical projects and other hazardous working environments as they reduce the possibility of accidents caused by sparking. This is their main benefit since they are the best option to use if there is potential for sparks to occurring during the lift process.



The lifting machine can be operated via a pull cord or pendant control for easy use and to ensure that the user can operate the hoist at a safe distance. Make sure there is only one operated at a time to avoid any injuries from occurring.



Keeping the risk of injury or accidents to you and your team to a minimum is essential on every project and these air hoists from Red Rooster are a great way to ensure that that risk is decreased for you and your team.



What Are trolleys?

Trolleys are important tools in helping reduce hazardous tasks that can lead to injuries. This is why they go hand in hand with air hoists since these types of hoists are also used to reduce accidents.  Construction trolleys are used to transport and carry heavy loads. These trolleys are often used in warehouses and other construction type industries.



Variations and weights available?

  • At LES we offer a range of capacities and weight for you to choose from in the Red Rooster range.
  • The TCR series air hoists range from 250kg-15000kg and have 1-5 fall chains to ensure your load stays secure and stable.
  • As with any variation of air hoists the speeds will vary depending on the models so check the spec for further details.
  • Some of our models have an automatic load limiter to ensure you stay safe and to help your air hoists stay within its capacity.



How do you use air hoists and safety measure to take?

Air hoists should only be operated by a competent person to avoid any injuries from occurring. This product is intended to lift or support materials only and have all the required safety features such as; load brakes, emergency stop and shock protection, and hook latch and limit switch.



Daily checks of the air hoist braking function, emergency stop, and lifting / lowering limits should be performed you should bring in an inspector to check everything is working accordingly. For example, an inspector would look at your chains to see if see if they are lubricated.



To avoid underperformance or overloading, the air hoist is operated at a 4 or 6 bar system pressure as stated in the specifications. This means you and your workers do not have to worry about the possibility of overloading. For maximum performance the air supply must be clean and dry for the air hoist to operate properly.



At LES, we have sourced products that comply with the European Machinery Directive and are all CE marked. You can be assured that this product is of high quality and safe to use. Always make sure that only one person operates machinery at a time and that the area around the hoists are clear just in case the load falls. This is to prevent any injuries from occurring.



If you need any further guidance on any of our products, please feel free to contact a member of the LES team and we will happily find a suitable solution for you.



Looking for extras?

We can also supply the following on POA. Contact our sales office for more info:

Push trolley with built-in link plate: Product Code TCR250-PT2

Geared trolley with built-in link plate: Product Code TCR250-GT2

Pneumatic trolley with built-in link plate: TCR250-AT2

  • Compact and lightweight body
  • ATEX zone 2 specification
  • Toku rotary vane motor
  • Robust epicycle gearbox
  • Failsafe automatic internal disc brake
  • Optional: push, geared and pneumatic trollies available on POA

Model



WLL

250kg

Chain falls

1

Lifting speed with full load

9.3  without load: 19 lowering speed: 17.9

Air consumption lifting

13

Air consumption lowering

15

Working pressure

6

Air connection

½ BSP

Minimum hose DIA

1/2

Weight 3M hol

7kg

Additional Meter hol

0.35kg
