In stock
SKU: RUD000185

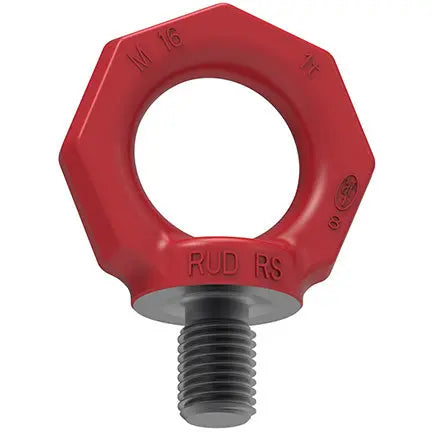

RUD RS Eye Bolt, Metric Fine Thread

From: $1,383.00
  • Up to 8000kg capacity
  • Various thread lengths and diameters
  • Clear marking of WLL
Final Configuration Price:
From: $1,383.00
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The RUD RS Eye Bolt with a metric thread comes with a safety factor of 4:1 and comes fully tested and certified by DGUV. The RS eye bolt has a considerably higher WLL than a DIN 580. Suitable for use in extreme conditions -40˚C - 200˚C. The WLL is shown clearly in all directions to avoid overloading. Some variables are only available in packs of 10, 20, and 30 eye bolts.

  • Up to 8000kg capacity
  • Various thread lengths and diameters
  • Clear marking of WLL

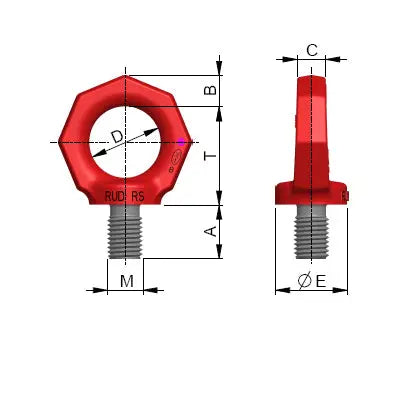

Model Product Code Weight (kg) Nominal WLL (kg) MOQ T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) M (mm)
RS-M12x1.5 59830 0.18 400 1 41 18 13 12 30 30 M12x1.5
RS-M14x1.5 53844 0.30 750 30 48 21 15 14 35 35 M14x1.5
RS-M16x1.5 59832 0.30 1000 1 48 24 15 14 35 35 M16x1.5
RS-M18x1.5 50986 0.45 1200 20 55 30 17 16 40 40 M18x1.5
RS-M20x1.5 57203 0.45 1500 20 55 30 17 16 40 40 M20x1.5
RS-M20x2 59833 0.47 1500 20 55 30 17 16 40 40 M20x2
RS-M22x1.5 7901656 0.78 1500 1 70 34 21 20 50 50 M22x1.5
RS-M24x1.5 57210 0.80 2000 20 70 30 21 20 50 50 M24x1.5
RS-M24x2 59834 0.88 2000 20 70 36 21 20 50 50 M24x2
RS-M27x2 57259 1.60 2000 20 85 45 26 24 60 60 M27x2
RS-M30x2 59835 1.60 3000 10 85 45 26 24 60 60 M30x2
RS-M36x3 53853 6.50 4000 10 130 54 43 38 90 100 M36x3
RS-M42x3 53872 6.50 6000 10 130 63 43 38 90 100 M42x3
RS-M48x3 53885 6.50 8000 10 130 67 43 38 90 100 M48x3
