In stock
SKU: RUD000197

RUD RS Eye Bolt, UNC/UN Thread

From: £54.18
  • Up to 8000kg capacity
  • Various thread lengths and diameters
  • Clear marking of WLL in all directions
Final Configuration Price:
From: £54.18
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

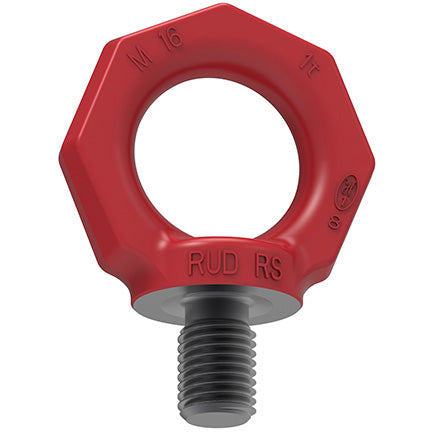

The RUD RS Eye Bolt with an UNC/UN thread comes with a safety factor of 4:1 and comes fully tested and certified by DGUV. The RS eye bolt has a considerably higher WLL than a DIN 580. Suitable for use in extreme conditions -40˚C - 200˚C. The WLL is shown clearly in all directions to avoid overloading. Some variables are only available in packs of 10, 20, eye bolts.

  • Up to 8000kg capacity
  • Various thread lengths and diameters
  • Clear marking of WLL in all directions

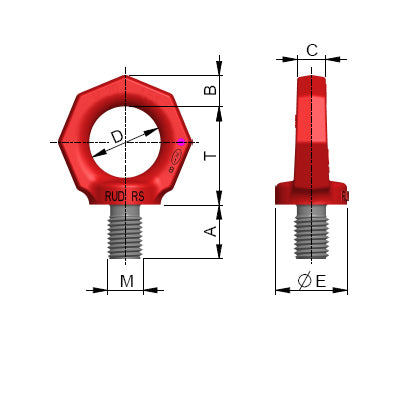

Model Product Code Weight (kg) Nominal WLL (kg) MOQ T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) M (mm)
RS-1/4"-20UNC 56887 0.10 100 20 34 12 11 10 25 25

1/4"-20UNC

RS-5/16"-18UNC 56885 0.10 200 20 34 12 11 10 25 25 5/16"-18UNC
RS-3/8"-16UNC 56879 0.10 250 1 34 15 11 10 25 25 3/8"-16UNC
RS-7/16"-14UNC 56870 0.18 400 1 41 18 13 12 30 30 7/16"-14UNC
RS-1/2"-13UNC 56871 0,18 400 1 41 18 13 12 30 30 1/2"-13UNC
RS-9/16"-12UNC 57120 0.30 750 20 48 22 15 14 35 35 9/16"-12UNC
RS-5/8"-11UNC 57198 0.30 1000 1 48 24 15 14 35 35

5/8"-11UNC

RS- 3/4"-10UNC 57205 0.47 1200 1 55 30 17 16 40 40 3/4"-10UNC
RS- 7/8-9UNC 57212 0.80 1500 1 70 34 21 20 50 50 7/8-9UNC
RS- 1"-8UNC 57213 0.85 2000 1 70 36 21 20 50 50 1"-8UNC
RS-1_1/8"-7UNC 57471 1.60 2500 20 85 45 26 24 60 60 1 1/8"-7UNC
RS- 1_1/8"-8UNC 7985010 1.60 2500 20 85 45 26 24 60 60 1 1/8-8UNC
RS-1_1/4"-7UNC 57685 1.60 3000 1 85 46 26 24 60 60 1 1/4"-7UNC
RS-1_1/4"-8UNC 57686 1.60 3000 1 85 45 26 24 60 60 1 1/4"-8UNC
RS-1_3/8"-6UNC 58599 6.10 3000 10 130 55 43 38 90 100 1 3/8"-6UNC
RS- 1_1/2"-6UNC 58615 6.20 4000 1 130 58 43 38 90 100 1 1/2"-6UNC
RS- 1_1/2"-8UN 7990453 6.50 4000 10 130 58 43 38 90 100 1 1/2"-8UN
RS 1_3/4"-5UNC 58616 6.30 6000 10 130 67 43 38 90 100 1 3/4"-5UNC
RS-1_3/4"-8UN 7990186 6.50 6000 10 130 67 43 38 90 100 1 3/4"-8UN
RS 2"-4.5UNC 58658 6.50 8000 10 130 67 43 28 90 100 2"-4.5UNC
