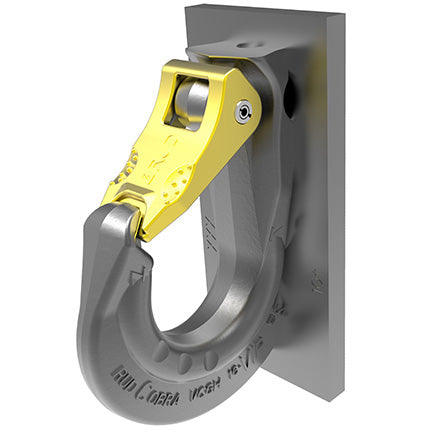

The RUD VCGH-S Excavator Hooks, Ready For Welding are the more heavy duty of the excavator hooks in this category. With a safety rating of 4:1 and comes fully tested and approved by DGUV. The VCGH-S is perfect for use as a weldable lifting point on crossbars and beams. The VCGH-S can be used with wire rope slings, and round slings, and can also be used for lifting means with a hoop or oval suspension ring.
Datasheets

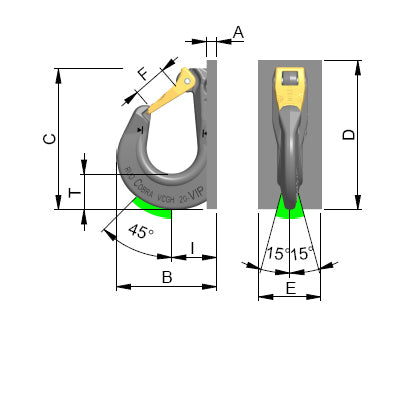

| Model | Product Code | Weight (kg) | Nominal WLL (kg) | T (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | I (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VCGH-S16 | 7984047 | 5.67 | 10,000 | 49 | 15 | 141 | 200 | 220 | 100 | 48 | 70 |
| VCGH-S20 | 7984310 | 8.40 | 16,000 | 69 | 20 | 187 | 272 | 288 | 120 | 63 | 87 |
| VCGH-S22 | 7984312 | 14.50 | 20,000 | 74 | 20 | 196 | 276 | 292 | 120 | 63 | 92 |
