In stock
SKU: RUD000363

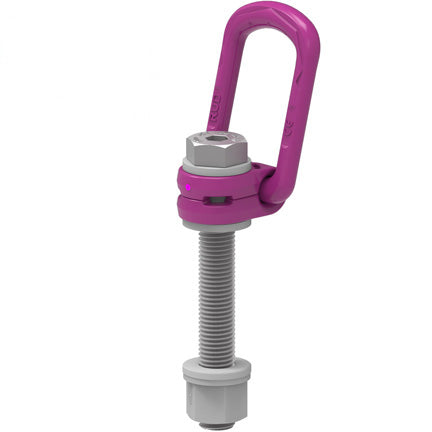

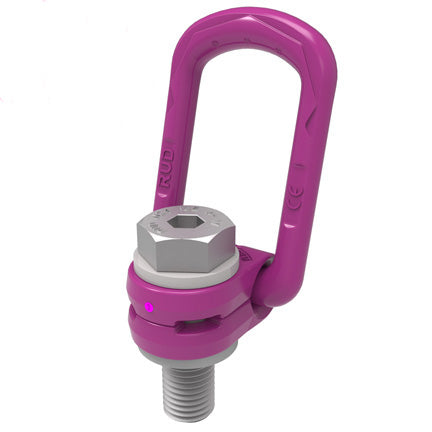

RUD VLBG-PLUS Load Ring Metric Thread

From: £76.35
  • 360˚ swivel and 180˚ pivot
  • Up to 6700 kg capacity
  • Up to M30 Bolt size
  • Grade 12
Final Configuration Price:
From: £76.35
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The RUD VLBG-PLUS Load Ring with metric thread has a safety factor of 4:1and comes fully tested and approved by DGUV. The VLBG-PLUS load ring is grade 12 and is designed for use in extreme temperatures ranging from -40˚C up to 100˚C and maximum temperature of 350˚C with a reduced WLL. Due to the 360˚ swivel and 180˚ pivot, the load ring ensures a perfect connection every time. The VLBG-PLUS features RUD'S famous Grade 12 ICE Bolt that is exchangeable.

  • 360˚ swivel and 180˚ pivot
  • Up to 6700 kg capacity
  • Up to M30 Bolt size
  • Grade 12

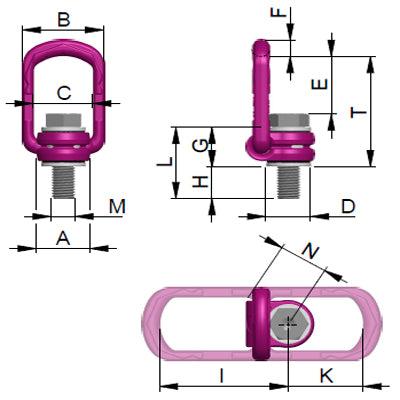

Model Capacity (kg) SKU Weight (kg) T (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) K (mm) L (mm) M (mm) N (mm)
VLBG-PLUS 0.63t M8 630 8504651 0.30 75 30 54 34 24 40 10 29 11 75 45 40 M8 32
VLBG-PLUS 0.9t M10 900 8504652 0.31 75 30 54 34 24 39 10 29 15 75 45 44 M10 32
VLBG-PLUS 1.35t M12 1350 8504653 0.34 75 32 54 34 26 38 10 29 18 75 45 47 M12 32
VLBG-PLUS 2.0t M16 2000 8504655 0.55 85 33 56 36 30 39 13.5 36 22 86 47 58 M16 38
VLBG-PLUS 3.5t M20 3500 8504657 1.30 110 50 82 54 45 55 16.5 43 32 113 64 75 M20 48
VLBG-PLUS 4.5t M24 4500 8504659 1.40 125 50 82 54 45 67 18 43 37 130 78 80 M24 48
VLBG-PLUS 6.7t M30 6700 8504661 3.22 147 60 103 65 60 67 22.5 61 49 151 80 110 M30 67
