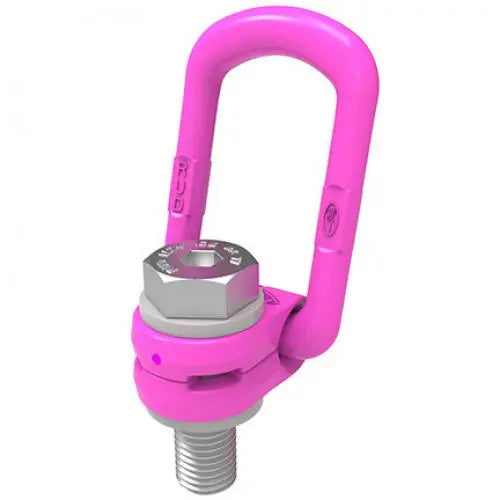

This is the RUD VLBG load ring with UNC thread, which is effectively the same as the VLBG load ring but the thread length is different. ALL of the VLBG load rings are have a safety rating of 4:1 and comes fully tested and approved by DGUV. The load rings feature captive ICE bolts that are exchangeable. This product is very popular in the lifting industry thanks to its ability to use the full WLL in all directions.
Datasheets

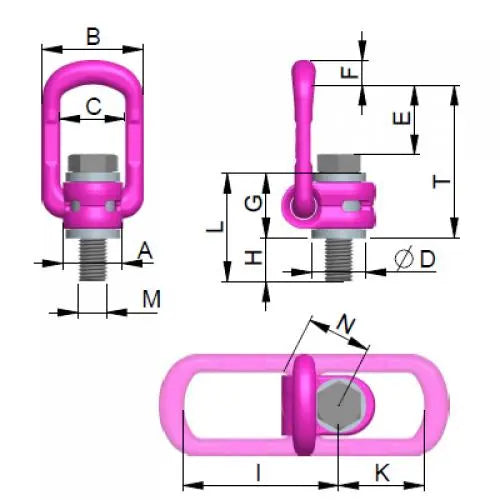

| Model | Product Code | Weight (kg) | Nominal WLL (kg) | T (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | K (mm) | L (mm) | M (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VLGB-Z 0.63t 3/8"-16UNC | 8504256 | 0.29 | 630 | 75 | 30 | 54 | 34 | 24 | 39 | 10 | 29 | 16 | 75 | 45 | 45 | 3/8"-16UNC | 32 |
| VLBG-Z 1.0t 1/2"-13UNC | 8502349 | 0.36 | 1000 | 75 | 32 | 54 | 34 | 26 | 38 | 10 | 29 | 22 | 75 | 45 | 50 | 1/2"-13UNC | 32 |
| VLBG-Z 1.5t 5/8"-11UNC | 8502350 | 0.50 | 1500 | 85 | 33 | 56 | 36 | 30 | 39 | 13.5 | 36 | 24 | 86 | 47 | 60 | 5/8"-11UNC | 38 |
| VLBG-Z 2.5t 3/4"-10UNC | 8502351 | 1.30 | 2500 | 110 | 50 | 82 | 54 | 45 | 55 | 16.5 | 43 | 28 | 113 | 64 | 71 | 3/4"-10UNC | 48 |
| VLBG-Z 2.5t 7/8"-9UNC | 8502352 | 1.25 | 2500 | 110 | 50 | 82 | 54 | 45 | 55 | 16.5 | 43 | 27 | 113 | 64 | 70 | 7/8"-9UNC | 48 |
| VLBG-Z 4.0t 1"-8UNC | 8502353 | 1.50 | 4000 | 125 | 50 | 82 | 54 | 45 | 67 | 18 | 43 | 41 | 130 | 78 | 84 | 1"-8UNC | 48 |
| VLBG-Z 5t 1 1/4"-7UNC | 8503187 | 3.33 | 5000 | 147 | 60 | 103 | 65 | 60 | 64 | 22.5 | 61 | 41 | 151 | 80 | 102 | 1 1/4"-7UNC | 67 |
| VLBG-Z 5t 1 1/4"-8UN | 8502354 | 3.33 | 5000 | 147 | 60 | 103 | 65 | 60 | 64 | 22.5 | 61 | 41 | 151 | 80 | 102 | 1 1/4"-8UN | 67 |
| VLBG-Z 8t 1 1/2"-6UNC | 8504257 | 6.14 | 8000 | 197 | 77 | 122 | 82 | 70 | 97 | 26.5 | 77 | 62 | 205 | 110 | 140 | 1 1/2"-6UNC | 87 |
| VLBG-Z 20t 2"-4 1/2UNC | 8504258 | 11.77 | 20,000 | 222 | 95 | 156 | 100 | 95 | 105 | 36 | 87 | 69 | 230 | 130 | 156 | 2"-4 1/2UNC | 100 |
