In stock
SKU: RUD000316

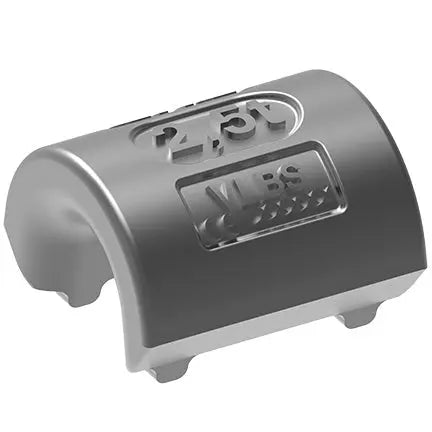

RUD VLBS Weld On Block

From: £8.63
  • up to 16,000kg capacity
  • The chosen welding point must be suitable for the correct corresponding introduction of force
Final Configuration Price:
From: £8.63
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The RUD VLBS Weld On Block is forged out of The material 1.0577+N (St52-3) and is marked with the identification number of the permissible nominal WLL. The distance lugs have a distance measurement function for the required spacing to the root weld (approx 3mm), Welding should always be carried out by a qualified person according to iso 9606-1. The chosen welding point must be suitable for the correct corresponding introduction of force.

  • up to 16,000kg capacity
  • The chosen welding point must be suitable for the correct corresponding introduction of force

Model Product Code  Weight (kg) Nominal WLL (mm) T (mm) A (mm) B (mm) C (mm)
VLBS 1.5t Welding block 7993021 0.08 1500 16 33 33 25
VLBS 2.5t Welding Block 7994849 0.13 2500 16 36 40 27
VLBS 4.0t Welding Block 7993022 0.20 4000 19 42 46 31
VLBS 6.7t Weling Block 7993023 0.58 6700 26 63 60 44
VLBS 10t Welding Block 7993024 0.89 10,000 31 75 60 55
VLBS 16t Welding Block 7993025 2.28 16,000 40 96 90 69
