SKU: RUD000110

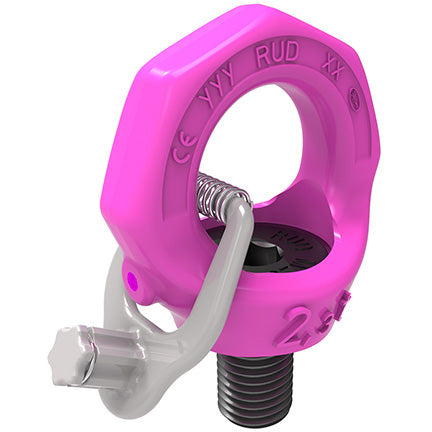

RUD VRS-F Starpoint Eye Bolt- Metric Thread

From: £37.39
  • Up to 12,000kg capacity
  • 360˚ adjustable in force direction
  • With star key as standard
Final Configuration Price:
From: £37.39
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

The RUD VRS-F Starpoint with a metric thread has a safety factor of 4:1 and comes fully tested and approved by DGUV. By using a Starpoint you get a WLL that is several times higher than the DIN 580 Eye bolt. The starpoint come with a starkey as standard and is used for easy assembly and disassembly.

  • Up to 12,000kg capacity
  • 360˚ adjustable in force direction
  • With star key as standard

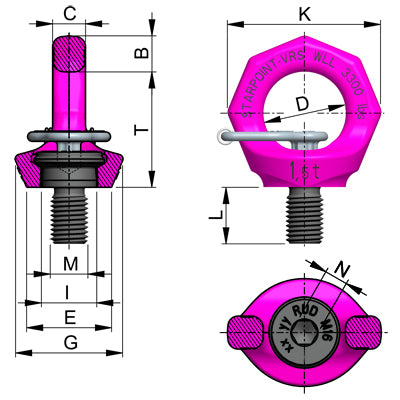

Model Product Code Weight (kg) Nominal WLL (kg) T (mm) B (mm) C (mm) D (mm) E (mm) G (mm) I (mm) K (mm) L (mm) M (mm) N (mm)
VRS-F-M6 7900906 0.07 100 28 9 7 20 23 28 13 37 9 M6 6
VRS-F-M8 8500911 0.12 300 35 11 9 25 25 30 16.3 47 12 M8 6
VRS-F-M10 7104029 0.12 400 35 11 9 25 25 30 16.3 47 15 M10 6
VRS-F-M12 7101313 0.20 750 42 13 10 30 30 34 19.8 56 19 M12 8
VRS-F-M14 7999330 0.21 750 42 13 10 30 30 34 19.8 58 18 M14 8
VRS-F-M16 7101314 0.30 1500 49 15 13 35 36 40 23.5 65 24 M16 10
VRS-F-M16=L35 7983306 0.37 1500 49 15 13 35 36 40 23.5 65 35 M16 10
VRS-F-M18 7903387 0.35 1500 49 15 13 35 35 40 23.5 65 24 M18 10
VRS-F-M20 7101315 0.47 2300 58 17 16 40 41 50 29.3 76 30 M20 12
VRS-F-M22 7992197 0.61 2300 58 17 16 40 41 50 29.3 76 30 M22 12
VRS-F-M24 7101316 1.05 3200 70 20 19 49 51 60 35 92 36 M24 14
VRS-F-M27 7994138 1.00 3200 70 20 19 49 51 60 35 92 36 M27 14
VRS-F-M30 7101317 1.83 4500 87 26 24 60 66 75 44 114 45 M30 17
VRS-F-M33 7993439 1.80 4500 87 26 24 60 66 75 44 114 45 M33 17
VRS-F-M36 7984201 3.60 7000 103 32 29 72 76 97 53 135 54 M36 22
VRS-F-M42 7984202 4.60 9000 121 37 33 84 86 111 62 158 63 M42 24
VRS-F-M48 7984203 7.60 12,000 138 42 42 94 100 128 70 180 72 M48 27
