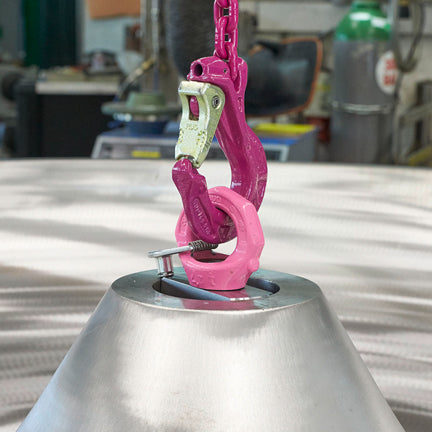

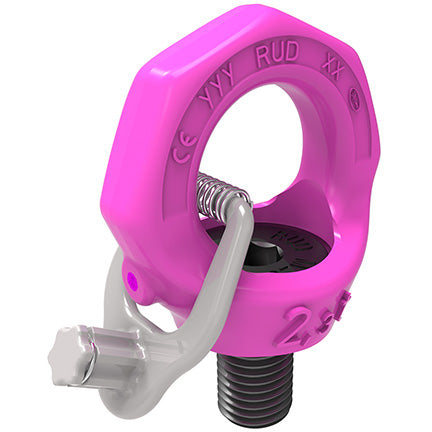

The RUD VRS-F Starpoint with a UNC thread comes with a 4:1 safety factor and comes fully tested and approved by DGUV. By using a starpoint you can expect up to expect a WLL that is several times higher than what you would find in a DIN 580 eye bolt. The starpoint comes with a starkey as standard that can be used for easy assembly and disassembly.

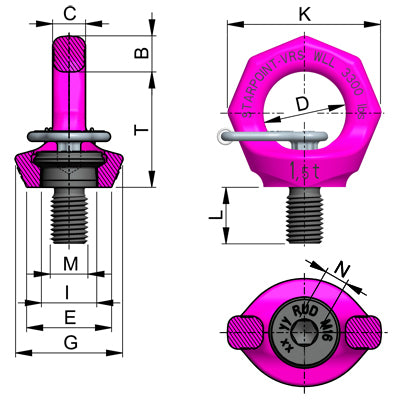

| Model | Product Code | Weight (kg) | Nominal WLL (kg) | T (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | I (mm) | K (mm) | L (mm) | M (") | N (") |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRSF-5/16"-18UNC | 7999106 | 0.13 | 300 | 35 | 11 | 9 | 25 | 25 | 30 | 16.3 | 47 | 12 | 5/16"-18UNC | 1/4" |
| VRSF-3/8"-16UNC | 7104480 | 0.12 | 400 | 35 | 11 | 9 | 25 | 25 | 30 | 16.3 | 47 | 19 | 3/8"-16UNC | 1/4" |
| VRSF- 7/16"-14UNC | 7904195 | 0.12 | 400 | 35 | 11 | 9 | 25 | 25 | 30 | 16.3 | 47 | 15 | 7/16"-14UNC | 1/4" |
| VRSF-1/2"-13UNC | 7104481 | 0.22 | 750 | 42 | 13 | 10 | 30 | 30 | 34 | 19.8 | 56 | 19 | 1/2"-13UNC | 5/16" |
| VRSF-5/8"-11UNC | 7104482 | 0.33 | 1500 | 49 | 15 | 13 | 35 | 36 | 40 | 23.5 | 65 | 24 | 5/8"-11UNC |
3/8" |
|
VRSF- 3/4"-10UNC |
7104483 | 0.54 | 2300 | 58 | 17 | 16 | 40 | 41 | 50 | 29.3 | 76 | 29 | 3/4"-10UNC | 1/2" |
| VRSF- 7/8"-9UNC | 7104484 | 0.64 | 2300 | 58 | 17 | 16 | 40 | 41 | 50 | 29.3 | 76 | 33 | 7/8"-9UNC | 1/2" |
| VRSF- 1"-8UNC | 7104485 | 0.98 | 3200 | 70 | 20 | 19 | 49 | 51 | 60 | 35 | 92 | 36 | 1"-8UNC | 9/16" |
| VRSF-1,1/8"-8UNC | 7903386 | 1.00 | 3200 | 70 | 20 | 19 | 49 | 51 | 60 | 35 | 92 | 36 | 1 1/8"-8UNC | 9/16" |
| VRSF-1.1/8"-7UNC | 7903383 | 1.00 | 3200 | 70 | 20 | 19 | 49 | 51 | 60 | 35 | 92 | 36 | 1 1/7"-UNC | 9/16" |
| VRSF- 1,1/4"-7UNC | 7104486 | 1.82 | 4500 | 87 | 26 | 24 | 60 | 66 | 75 | 44 | 114 | 48 | 1 1/4"-7UNC | 3/4" |
| VRSF- 1,1/2"-6UNC | 7104487 | 3.60 | 7000 | 103 | 32 | 29 | 72 | 76 | 97 | 53 | 135 | 54 | 1 1/2"-6UNC | 7/8" |
| VRSF- 1,3/4"-5UNC | 7104488 | 4.95 | 9000 | 121 | 37 | 33 | 84 | 86 | 111 | 62 | 158 | 63 | 1 3/4"-5UNC | 1" |
| VRSF- 2"-4.5UNC | 7104489 | 7.60 | 12,000 | 138 | 42 | 42 | 94 | 100 | 128 | 70 | 180 | 72 | 2"-4.5UNC | 1-1/8" |
