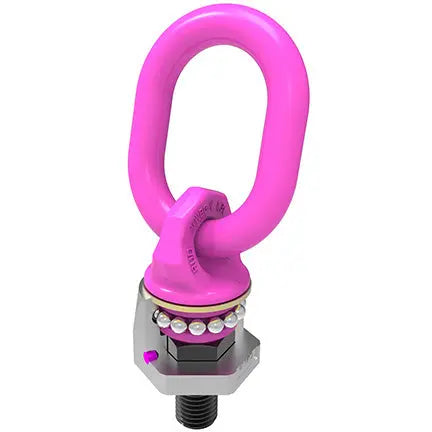

The RUD VWBG-V load ring with a UNC thread has a safety factor of 4:1 and comes fully tested and approved by DGUV. The load ring is able to rotate full 360˚ thanks to its integrated ball bearings, using this the load ring ensures a perfect connection every time. The load ring features optical markings for easy determination for withdrawing from service. In true RUD fashion, all the load rings are finished in a gloss pink.

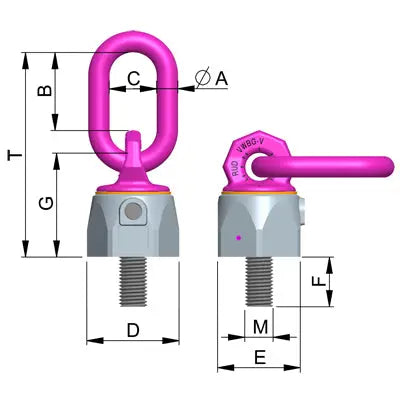

| Model | Product Code | Weight (kg) | Nominal WLL (kg) | T (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VWBG-V 0.3t- 5/16"-18UNC | 7991090 | 0.18 | 300 | 76 | 8 | 31 | 29 | 30 | 28 | 13 | 36 | 5/16"-18UNC |
| VWBG-V 0.45t- 3-8"-16UNC | 7991091 | 0.29 | 450 | 78 | 8 | 31 | 29 | 33.5 | 30 | 17 | 38 |
3/8"-16UNC |
| VWBG-V 0.6t - 1/2"-13UNC | 7991092 | 0.41 | 600 | 107 | 10 | 49 | 35 | 42 | 36 | 21 | 47 | 1/2"-13UNC |
| VWBG-V 1.3t - 5/8"-11UNC | 7991093 | 0.70 | 1300 | 114 | 13 | 46 | 38 | 48 | 41 | 29 | 56 | 5/8"-11UNC |
| VWBG-V 2.0t - 3/4"-10UNC | 7991094 | 1.42 | 2000 | 137 | 13 | 54 | 35 | 62 | 55 | 28 | 67 | 3/4"-10UNC |
| VWBG-V 3.5t - 1"-8UNC | 7991095 | 2.63 | 3500 | 173 | 18 | 66 | 40 | 81 | 70 | 40 | 88 | 1"-8UNC |
| VWBG-V 5.0t - 1 1/4"-7UNC | 7991096 | 5.09 | 5000 | 221 | 22 | 90 | 50 | 99 | 85 | 47 | 106 | 1 1/4"-7UNC |
