In stock
SKU: STR000046

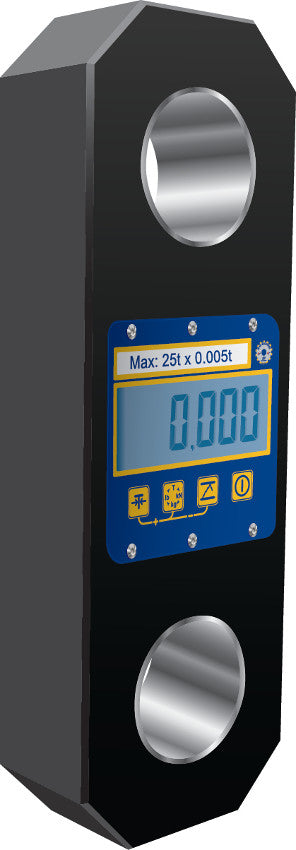

Straightpoint Loadlink Plus Load Cell

From: £1,362.86
  • Up to 300,000kg capacity
  • Large LCD display
  • High accuracy
Final Configuration Price:
£1,362.86
Estimated time to dispatch
Estimated time to dispatch: 5-7 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The Straightpoint Loadlink Plus is known as the first and original electronic force measurement device to feature an integrated integral digital display, now the Loadlink Plus is used on a frequently for heavy lifts and monitoring of tension and loads ranging in capacity from 1tonne all the way up to 500tonne, The Loadlink Plus load cell is used by a variety of commercial and industrial industries including transportation, manufacturing, agriculture, oil and gas, utilities, aerospace and clean energy companies.

High-speed read rates at 500/second are achieved with high precision advanced microprocessor electronics that are found in most of Straightpoints products. Combined with extreme resistance to industrial-level noise and remarkable stability makes this load link stand out above the crowd.

The Loadlink plus is made of high-grade aircraft quality aluminium. This premium quality load link stands unrivalled in its weight to strength radio as a result of Straightpoint's innovative internal design.

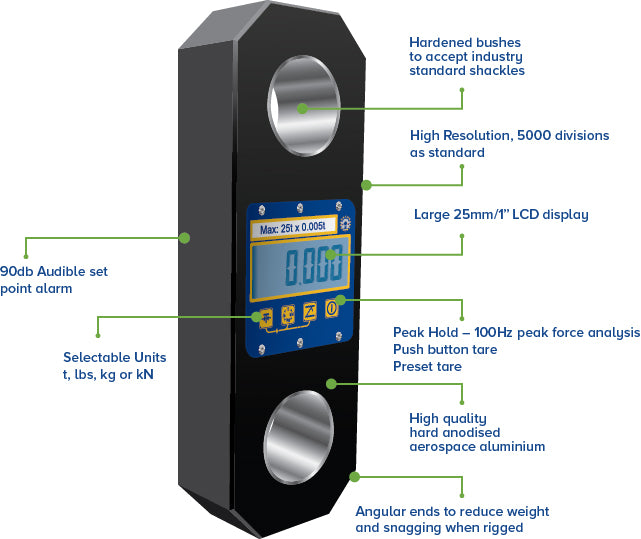

  • Large LCD display
  • High accuracy
  • Selectable units
  • High resolution
  • Peak hold
  • Tare
  • Lightweight
  • Preset tare
  • Overload counter
  • Audible set pint alarm
  • Choice of units lbs, kg, kN and tonnes
  • RS-485 serial output
  • Design validated by F.E.A
  • Due to this high stability gives the loadlink plus over 5000 divisions and the highest standard resolution of any digital dynamometer on the market today.

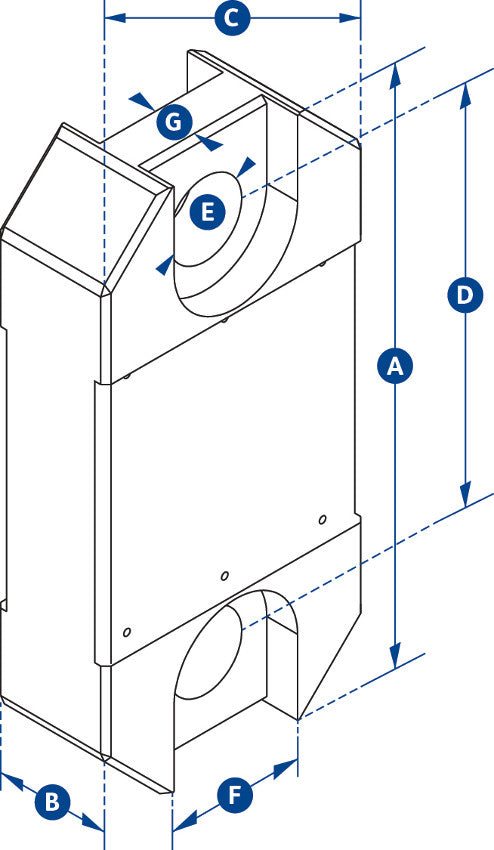

Model Capacity (kg) Weight (kg) Safety factor Battery Type Battery life Display Type Operating Temperature Protection A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Crosby Shackle Size Loading Pin Diameter (mm)
LLP1T 1000 1.4 12:1 9v PP3 80 Hours Continuous  6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 204 43 101 146 24.5 48 19 G2130 19
LLP2T5 2500 1.4 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 204 43 101 146 24.5 48 19 G2130 19
LLP5T 5000 2 5:1 9v PP3​ 80 Hours Continuous 6 Digit 25mm LCD -10˚C Up to 50˚C IP65 249 43 101 165 38 66 32 G2130 25
LLP12T 12,000 3.2 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 305 47 101 193 47.5     G2130 35
LLP25T 25,000 5 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 340 60 115 215 55     G2130 51
LLP35T 35,000 8.6 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 393 60 115 215 55     G2130 57
LLP50T 50,000 11.5 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 424 75 163 230 76     G2140 57
LLP75T 75,000 16 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 470 75 202 260 76     G2140 70
LLP100T 100,000 34 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 608 99 303 360 109     G2140 83
LLP150T 150,000 46 4:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 670 99 303 360 109     G2140 95
LLP200T 200,000 72 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 700 144 320 350 132     G2140 121
LLP250T 250,000 72 4:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 700 144 320 350 132     G2140 127
LLP300T 300,000 118 5:1 9v PP3 80 Hours Continuous 6 Digit 25mm LCD -10ËšC Up to 50ËšC IP65 806 150 426 350 160     G2140 152
