In stock
SKU: LES744

Tiger TCB14 Chain Block

£136.25
  • Safe Working Load: 500kg - 30,000kg
  • Standard Height of Lift: 3m
Final Configuration Price:
£136.25
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

 Safe Working Load: 500kg - 30,000kg
Standard Height of Lift: 3m

The Tiger TCB chain block is constructed of a rugged steel lightweight body enabling great portability in any application. The Tiger chain block is aimed at the off-shore rigging industry however it can easily be used in a number of other industries.

Extra protection
The Tiger chain block has a few extra features that some regular chain block's lack:

  • Double cover protection for brake chamber
  • Drop forged and heat treated alloy hooks
  • High quality alloy calibrated load chain
  • Efficient, high safety reliable twin pawl mechanical brake
  • Guaranteed light load protection
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Operating temperature of -50 C to + 50 C
  • Proof load tested to 1.5 times rated capacity

Manufactured from the highest quality steel's providing a ruggid lightweight hoist unit. Tiger proud their hoist on its exceptionally short headroom and ability to be used in applications where ever centimeter of headroom counts.

The super reliable and ultra efficient twin brake pawl system provides instant protection from any slipping of dropping of the load when the hand chain is released, this also allows for lowering under perfect control for precise operations.

Double Protection- Always.
The hoist's brake chamber is protected against the harshest of enviroments and foeign objects by the ratchet brake cover and hand chain wheel cover.

Only the highest quality load chain's are used to build Tiger chain blocks, a combination of the highest quality alloy, calibrated in grades 80 or 100.

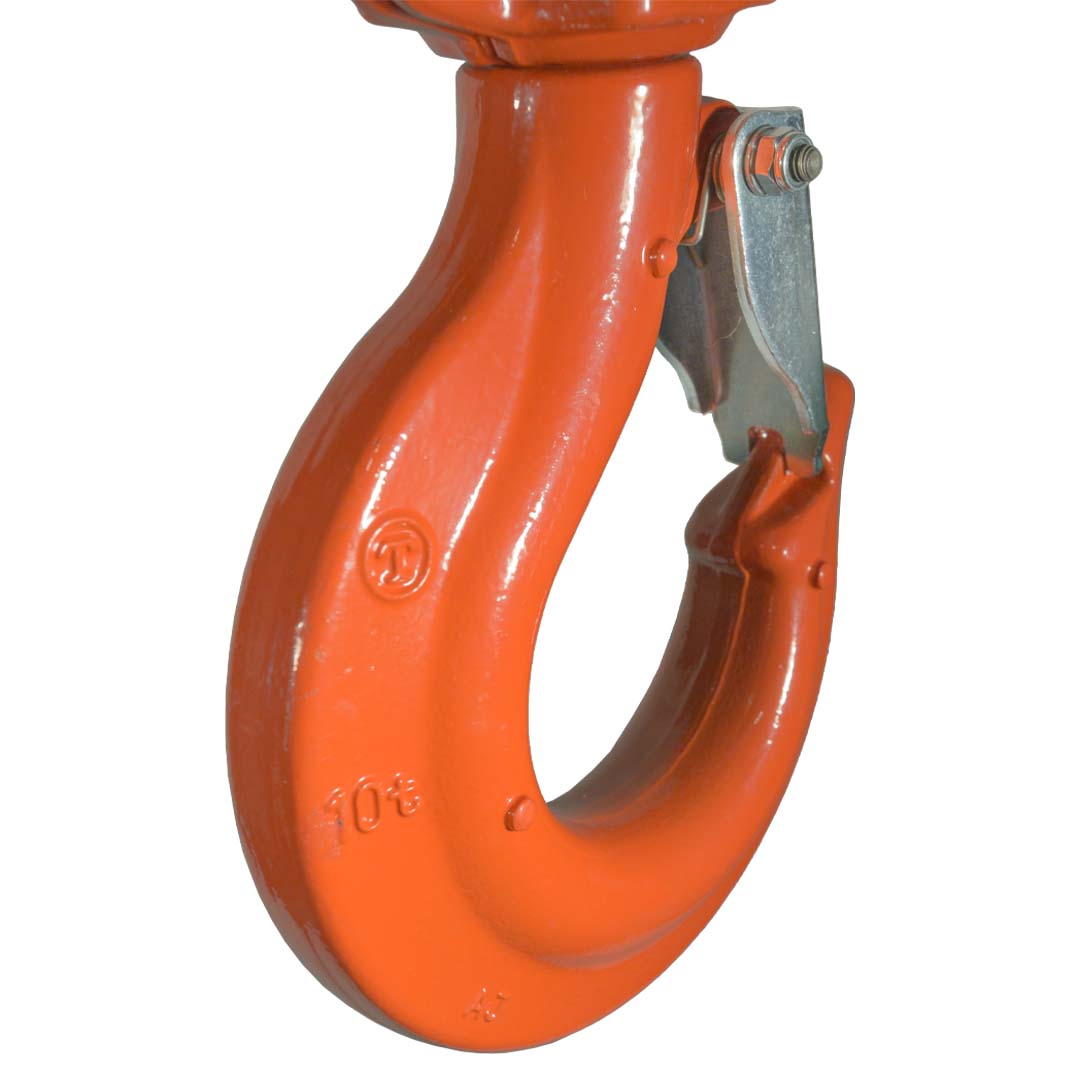

Drop forged and heat treated alloy top hooks and load hooks are used to suspend and lift. Heavy duty latch kits ensure that once the load is secure it cannot slip away by accident, providing maximum load security. Swivel hooks are attached to the YOke using only high grade fixtures.

Superb Quality
All major components are heat treated to ensure maximum efficiency, these are precisely machined to ensure long term smooth operation in the toughest of applications. High gear ration keep physical efforts to a minimum. Finished in a high quality powder coating to ensure superb corrosion protection.

The Tiger Chain block can also be directly mounted to a beam trolley to ensure lowest headroom.


  • Safe Working Load: 500kg - 30,000kg
  • Standard Height of Lift: 3m

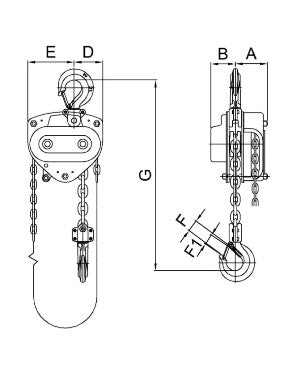

Product Code Capacity (Tonne) Effort (Kg)                 Load Chain Load Chain Height of Lift (standard) (m) Mass @ STD HOL (Kg)
      A B C D E F F1 G Diameter (mm) No. of Falls
CB-0050 0.5 21 92 66   52 78   24 305 6.3 1 3 10.8
CB-0100 1.0 25 93 66   63 87   28 340 6.3 1 3 11.8
CB-0150 1.5 32 98 73   78 102   34 385 7.1 1 3 16.2
CB-0200 2.0 34 101 79   87 113   35 420 8.0 1 3 20.0
CB-020L 2.0 42 98 73   78 102   35 399 7.1 1 3 16.7
CB-0300 3.0 38 109 84   98 157   36 550 10.0 1 3 30.6
CB-030T 3.0 34 99 73   60 148   36 465 7.1 2 3 23.3
CB-0500 5.0 37 101 79   122 209   49 575 8.0 3 3 37.8
CB-0800 8.0 37 101 79   140 238   51 745 8.0 4 3 64.0
CB-1000 10.0 40 109 84   153 263   54 660 10.0 3 3 64.0
CB-1500 15.0 41 110 84   225 378   59 840 10.0 5 3 128.5
CB-2000 20.0 43 161 90   148 360   81 1050 10.0 6 3 178.7
CB-200T 20.0 43 161 161   383 383   81 1050 10.0 6 3 210.4
CB-3000 30.0 42 220 220   388 388   91 1200 10.0 10 3 306.9
