SKU: TRA000394

Tractel ballsafe

£66.00

The ballsafe anchor point is made up of a four block plug and a female socket. It is sealed into concrete or a material of equal density using a chemical compound - Complies with Standard EN 795 A and B.

Final Configuration Price:
£66.00
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

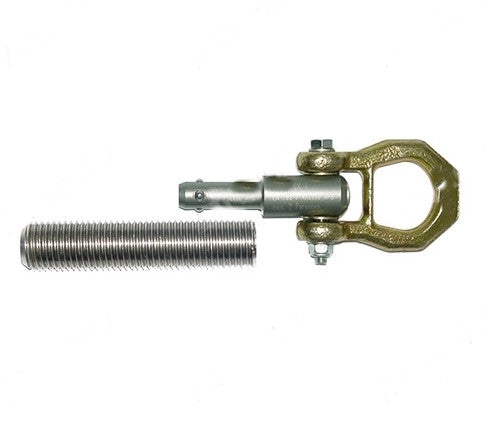

The BALLSAFE anchoring point is designed for discrete, esthetic installation on architectural structures. It is also used on sites where the anchoring point must be mobile so that it does not interfere with the operation of machines. The BALLSAFE anchoring point is formed by two main components:

The peg or female sleeve: this is installed permanently in the structure.
It can be used sealed in concrete, or sandwiched in a metal structure. Once in place, the sleeve is discrete and cannot be used without a BALLSAFE anchoring point.

The BALLSAFE anchoring point or ball pin is an anchoring point provided to the user. It can connect to the anchoring sleeve by manually applying pressure to the ball unlocking system. This device is easy to use and allows the user to easily move and connect with no difficulty.

Description

The female sleeve is simple and fast to install. No special tool is required. The sleeve is simple to test before it is put into use by means of a DYNAPLUG dynamometer set for 500 kg for 15 seconds.

The BALLSAFE is approved per EN795 class A for the sleeve and per EN795 class B for the ball pin. The ball pin is supplied with a plastic sealing cover protecting the system from water and soiling.

Technical characteristics

Female sleeve

• Installation in solid structure
- The sleeve must be installed in a structure capable of withs
tanding a force of 1T.

-The sleeve must be secured by a chemically sealed dowel

satisfying the specification requirements.

  • -  The minimum size of the support must be 170 mm.

  • -  The sleeve must never be installed at less than 85 mm from the edge of the structure.

  • -  The sleeve must never protrude by more than 30 mm from the surface of the drilling plane.

  • -  Dowel dimensions: M22 x100

  • -  Drilling dimensions: diameter 30 x 105

  • -  Material: stainless steel

  • -  Weight: 210 g
    • Installation in steel structures

    • -  Drilling dimensions: diameter 30mm

    • -  Minimum thickness of support: 10 mm

      Ball pin

    • -  Material: stainless steel body, anchor rings made of bichromate steel

    • -  Weight: 230 g

The ballsafe anchor point is made up of a four block plug and a female socket. It is sealed into concrete or a material of equal density using a chemical compound - Complies with Standard EN 795 A and B.
