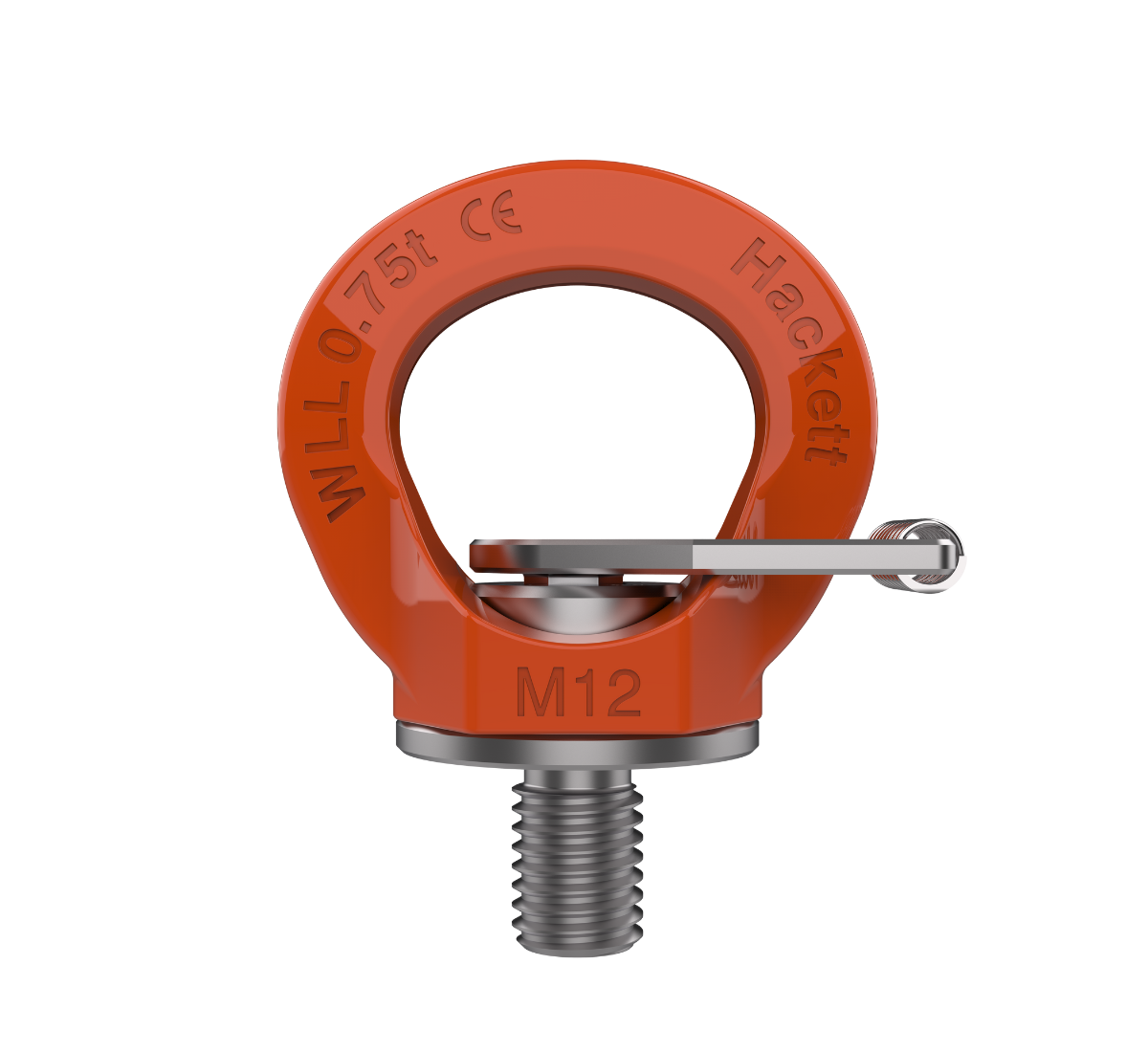

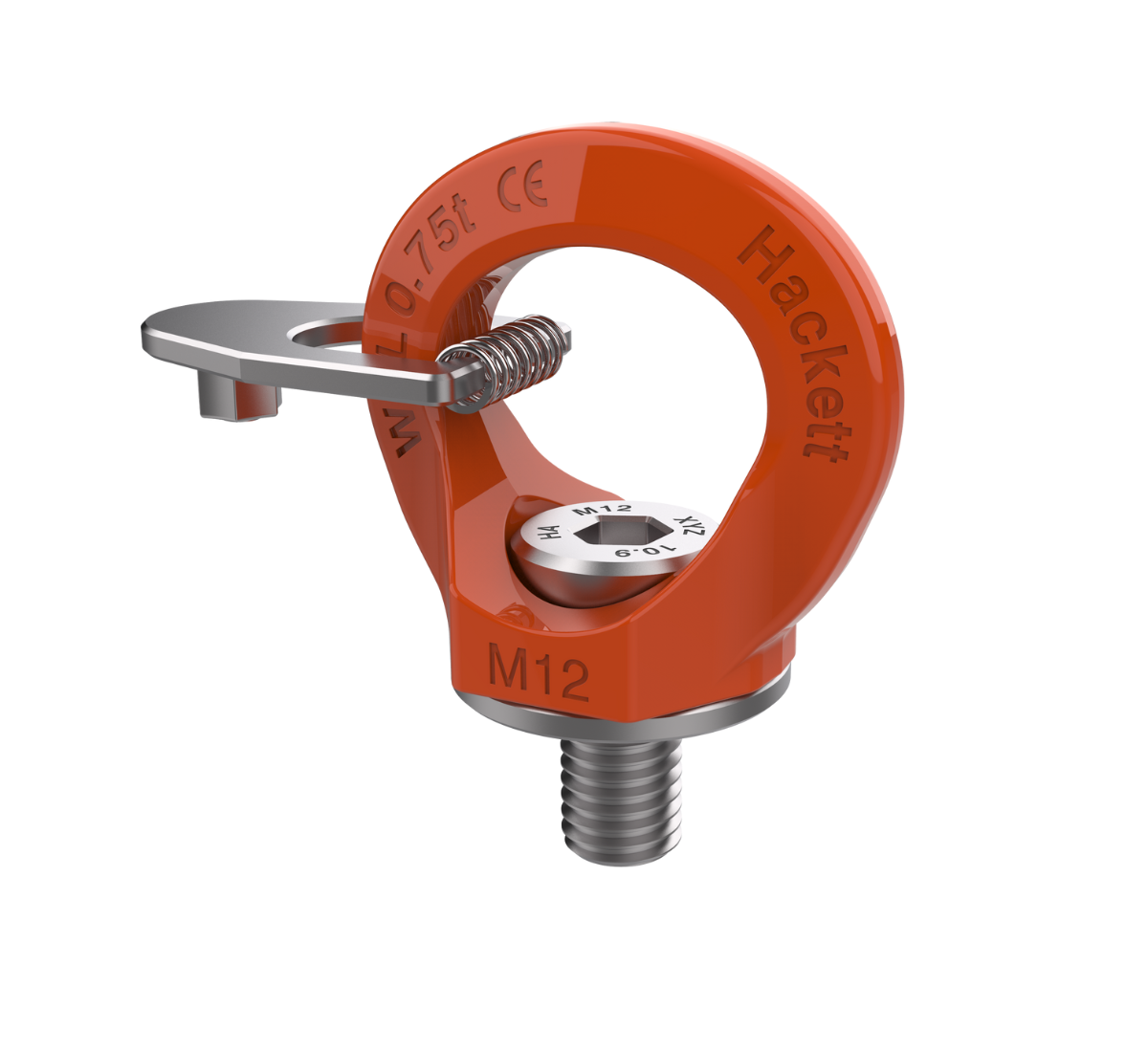

William Hackett's bolt-on Key Eye Point from the HA range has been specifically engineered for use with loads that incorporate tapped holes.
Capable of rotating a full 360-degrees around the bolt axis, allowing the key eye point to adjust to the direction of each specific load, these load attachments feature a locking key that can be used to fix the orientation of the eye point by anchoring it to the bolt.
Available in working load limits from 0.8t up to 32t - or M8 to M48 thread - the HA key eye point is suitable for top mounting, while also being suitable for side mounting as long as the working load limit is reduced.
Datasheets
SKU WLL (0° t) WLL (90° t) Thread (m) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Torque (Nm) Mass (kg) WIL001113 0.8 0.3 M8 25 23 26 11.5 38 45.3 8 8 10 0.11 WIL001114 1 0.4 M10 25 23 26 14 38 45.3 8 10 10 0.12 WIL001115 2 0.75 M12 33 27.5 32 17 43.5 54 10 12 15 0.2 WIL001116 4 1.5 M16 36 31 37.5 24 52 63.5 14 16 30 0.35 WIL001117 6 2.3 M20 47.5 38 44.5 30 63 78.5 20 20 70 0.66 WIL001118 8 3.2 M24 53 47 51.6 35.3 74 92 20 24 150 1.1 WIL001119 12 4.5 M30 68 56 65 45 92 118 24 30 250 2.07 WIL001120 16 7 M36 82 64 76 56.8 105 136 30 36 400 4 WIL001121 24 9 M42 92 75 88 66.5 121.5 160 35 42 500 5.52 WIL001122 32 12 M48 110 82 100 75.5 138 180 42 48 500 8.86
Part Code
8-H22-M08
8-H22-M10
8-H22-M12
8-H22-M16
8-H22-M20
8-H22-M24
8-H22-M30
8-H22-M36
8-H22-M42
8-H22-M48
