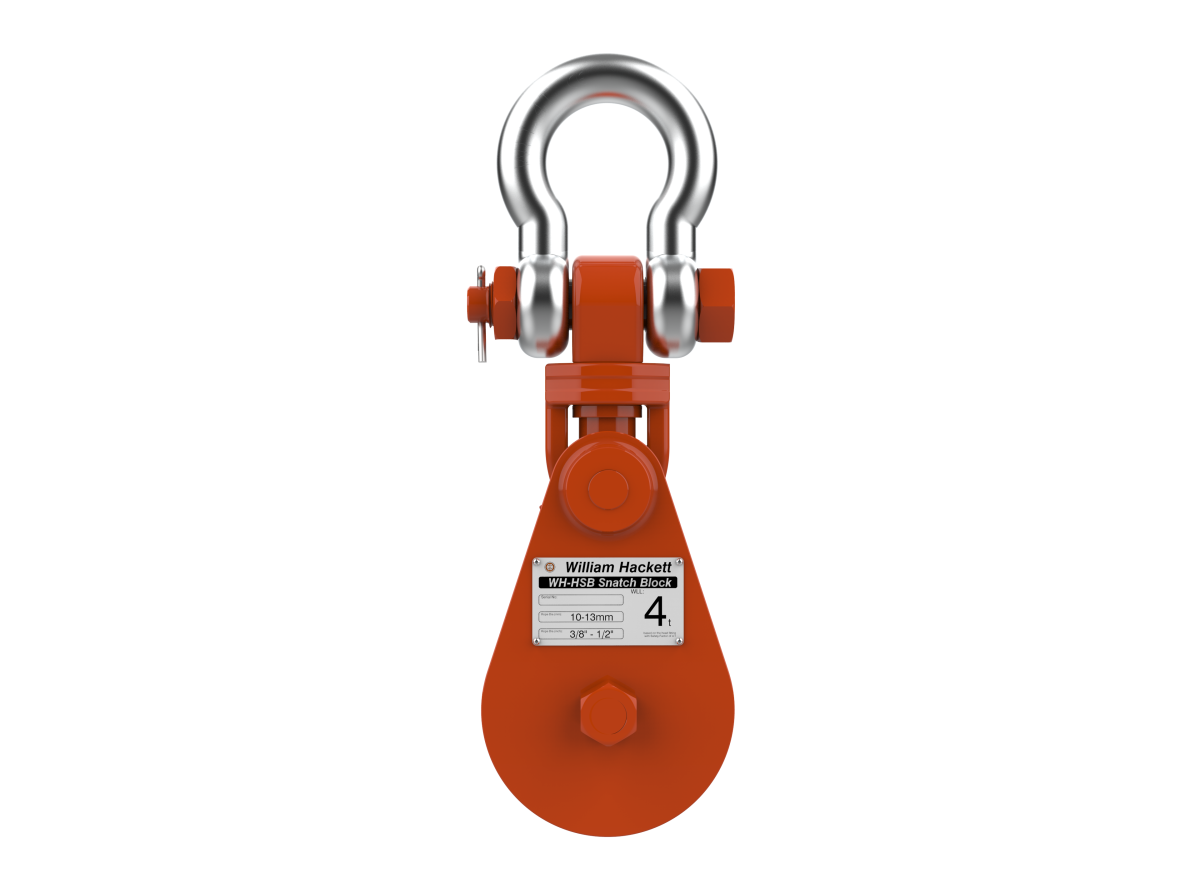

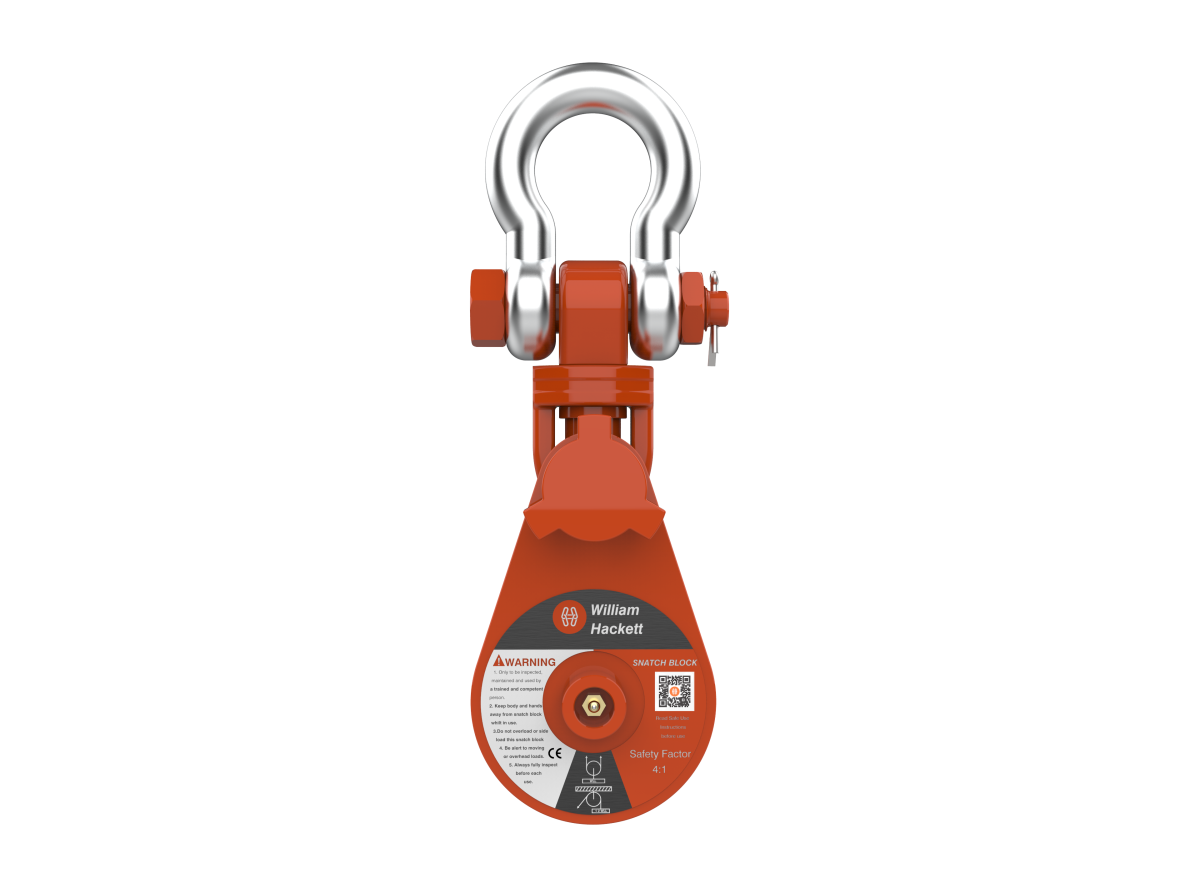

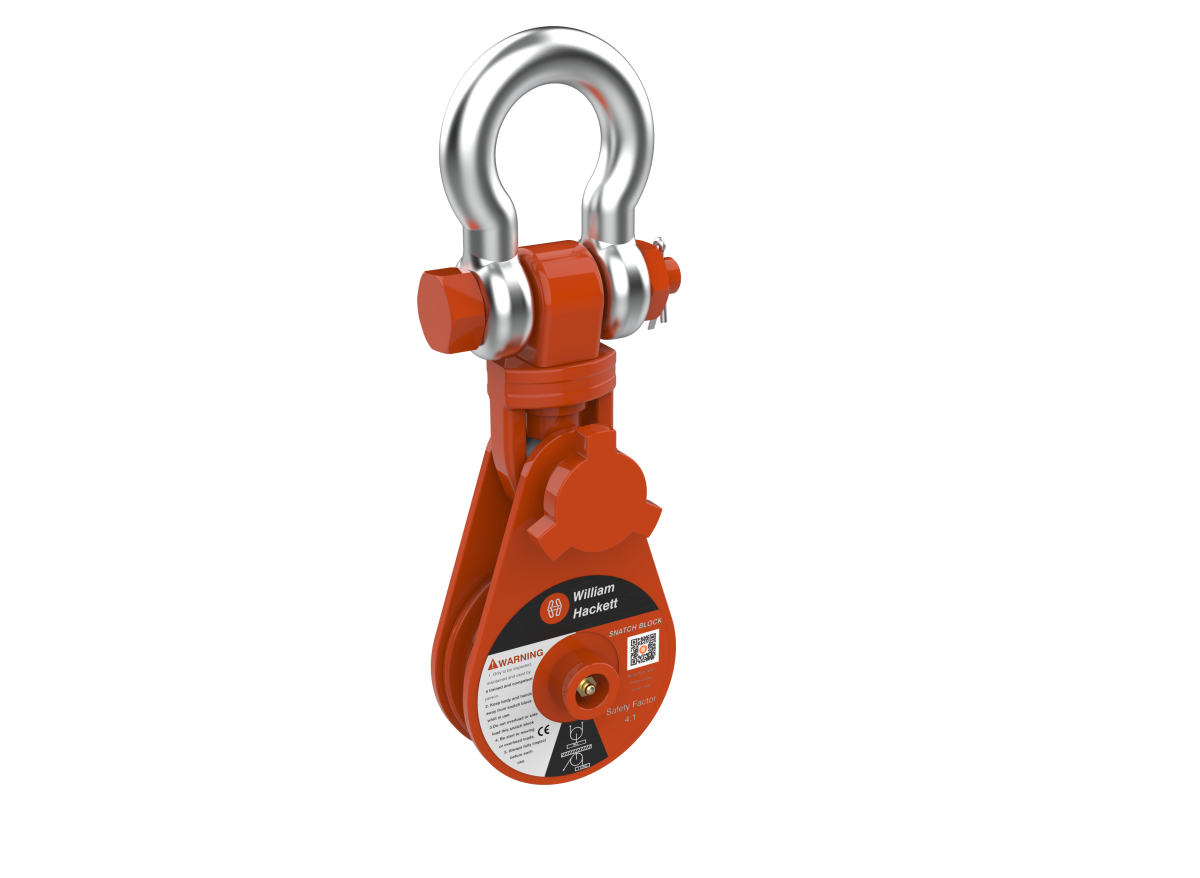

Offering users a mechanical advantage when working with rope and cable systems, William Hackett's Snatch Block with Captive Shackle is engineered from high tensile alloy steel, meeting all the necessary standards including ASME B30/26, EN1357:2004+A1:2009 & AS2089:2008.
Boasting an operating temperature range from - 20°C to + 200°C without reduction in working load limit, these snatch blocks have a safety factor of 4:1 and have been proof load tested to 1.5x the stated working load limit.

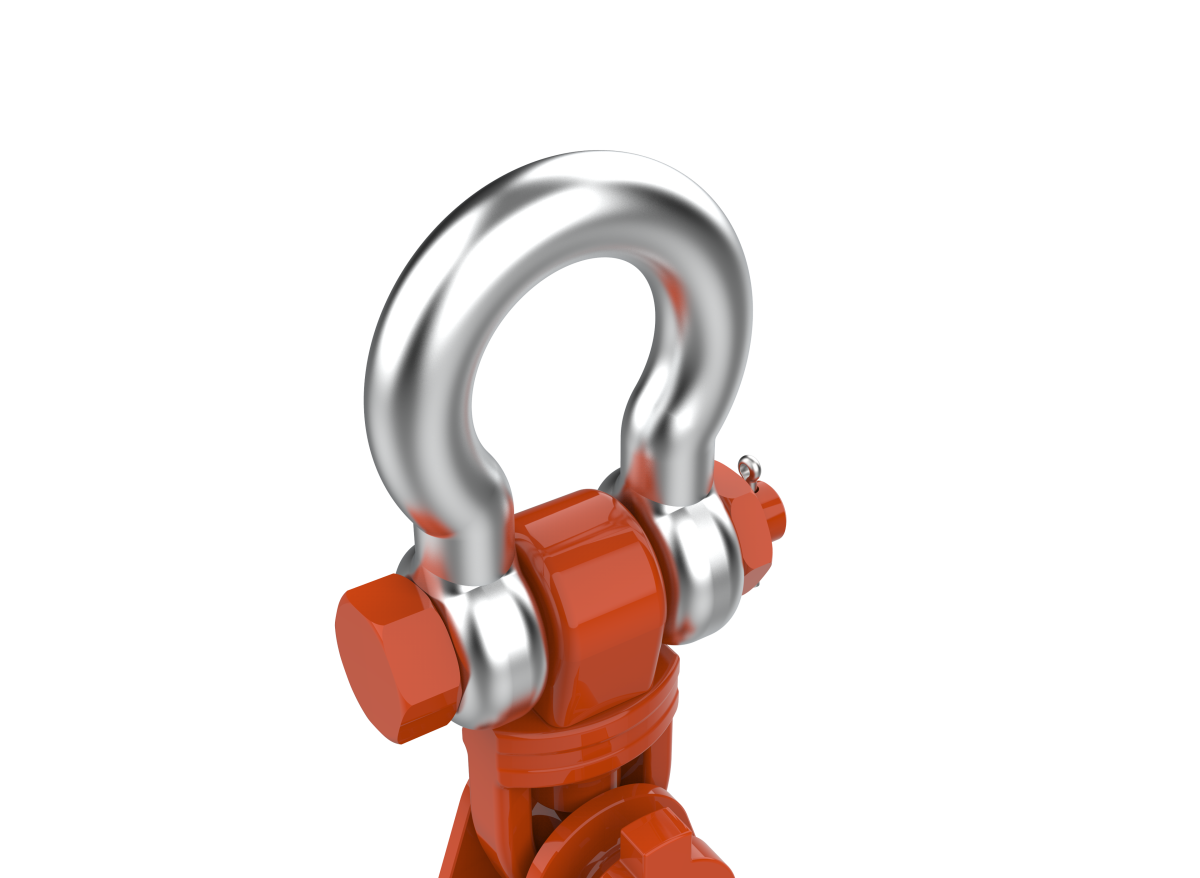

Fitted with tapered roller bearings to ensure a smooth and steady pull, the captive shackle has a generously sized bow that allows easy and effortless attachment to anchor points.

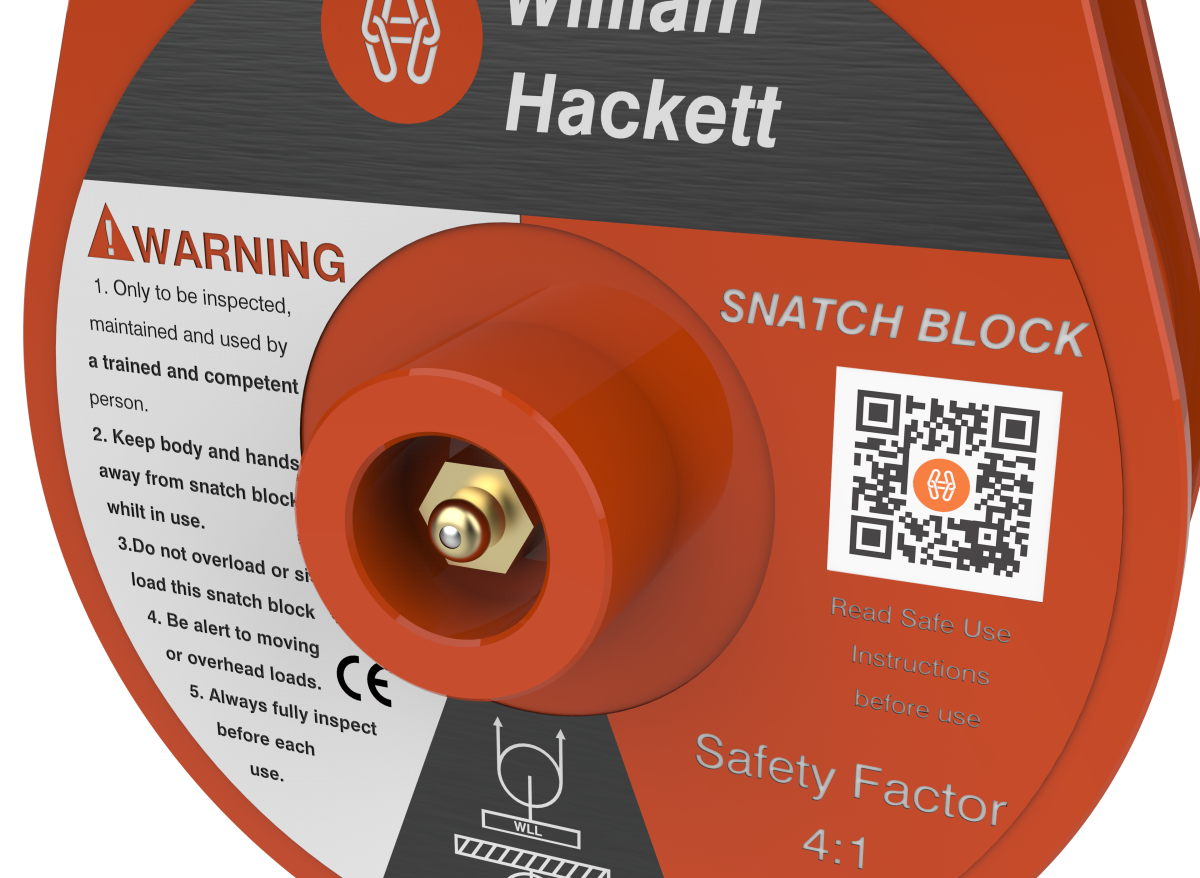

Suitable for a wide range of applications across various industries, maintenance is easy thanks to the built-in grease nozzle.
Ideal for applications in:
- Construction
- Industrial
- Oil & Gas
- Utilities
- Transportation
- Renewables
Datasheets
SKU WLL (t) Wire Rope Dia. (mm) Sheave Dia. (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Mass (kg) WIL001135 2 8-10 75 96 42 48.5 289 82 58 82 16 3.8 WIL001136 4 10-13 115 102 58 72 363 120 90 84.5 22 6.2 WIL001137 8 14-16 150 116 68 83 480.5 160 120 116 25 14.1 WIL001138 8 19-22 200 116 68 83 528.5 210 165 114 25 18.7 WIL001139 12 19-22 150 147 83 95 551 160 120 115 32 22 WIL001140 15 19-22 200 175 99 125 665 210 160 132 38 37 WIL001141 15 24-26 250 175 99 125 723 260 206 156.5 38 45 WIL001142 22 28-32 200 216 127 157.5 800 210 145 172.5 45 50 WIL001143 22 28-32 250 216 127 157.5 862 260 195 172.5 45 68 WIL001144 22 28-32 300 216 127 157.5 893 315 245 172.5 45 80
