In stock
SKU: WIL000099

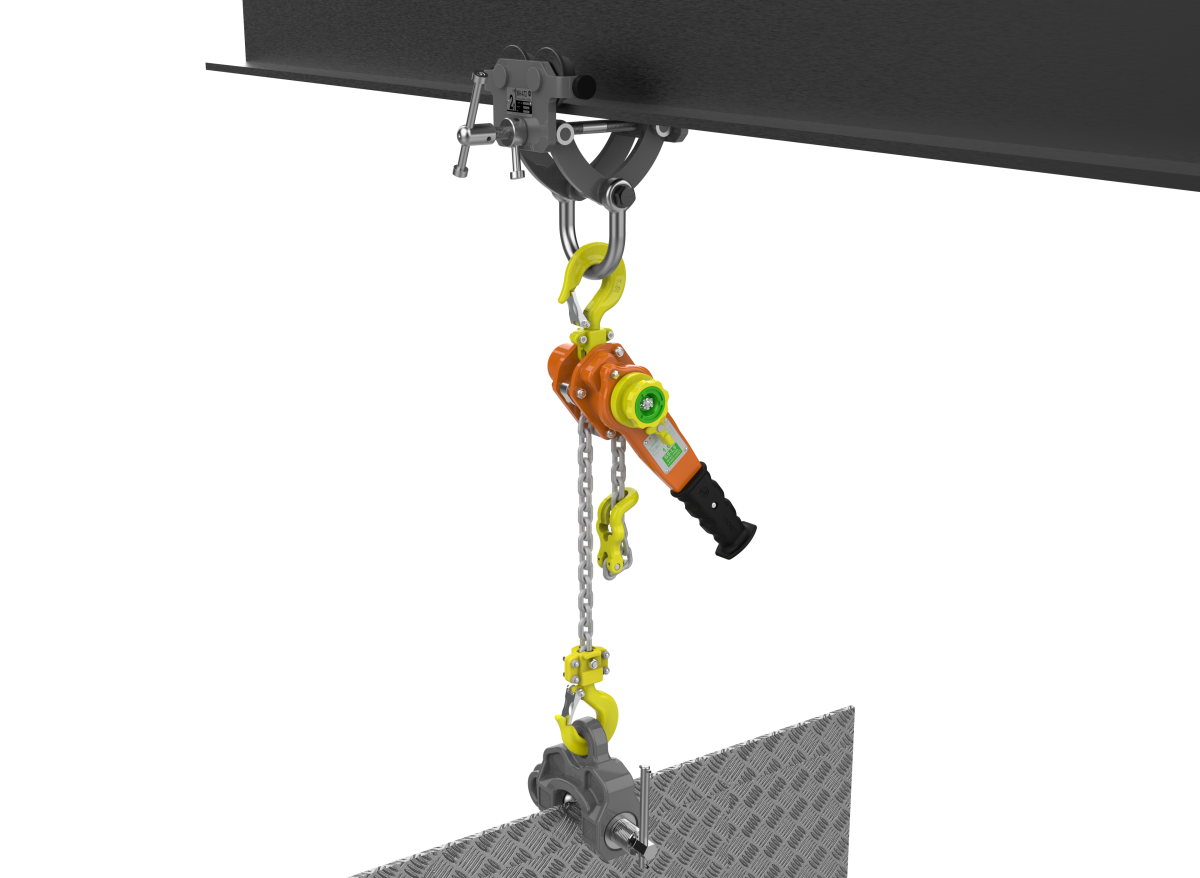

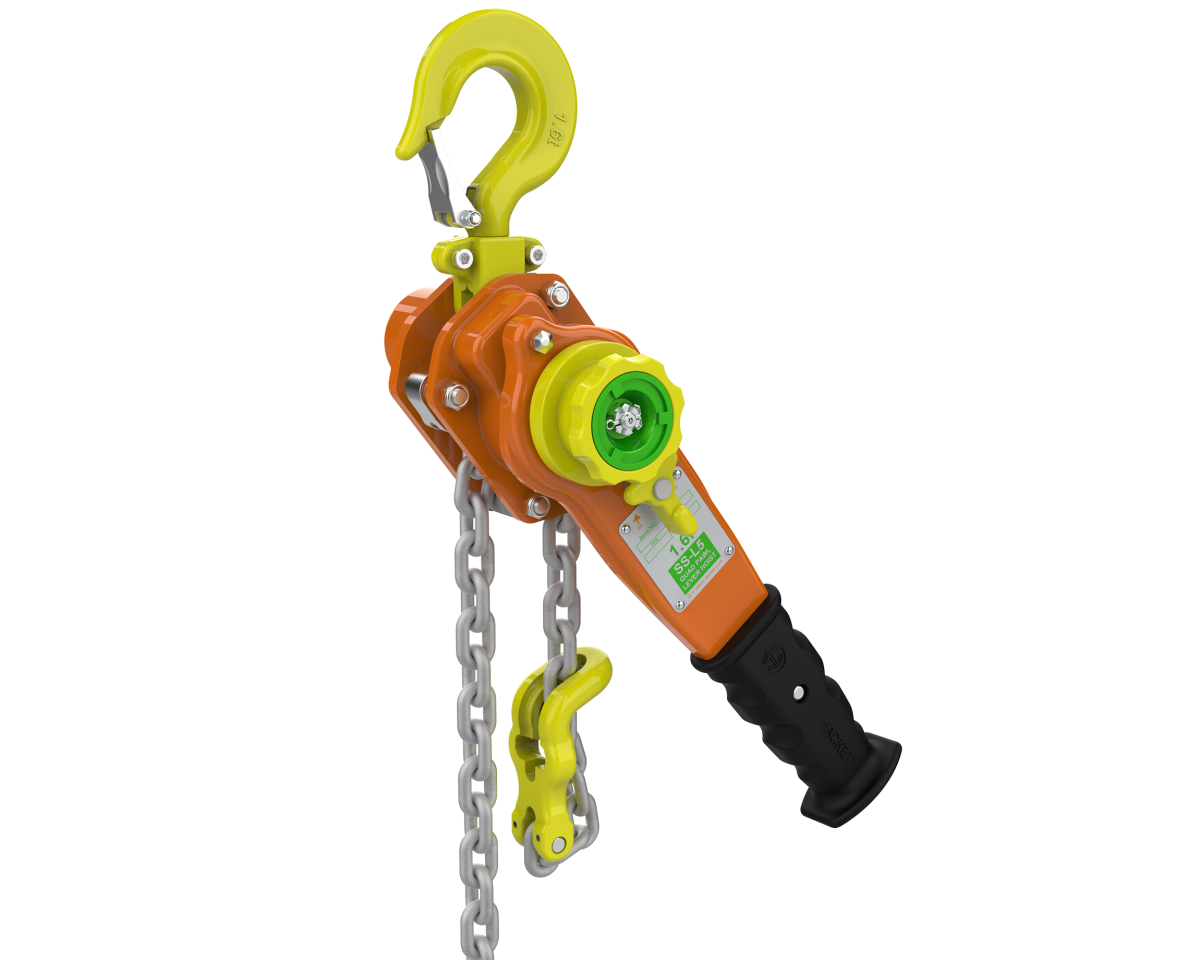

William Hackett Offshore Lever Hoist

From: £188.98
  • Light load capability
  • Dual anti-lock brake system
  • Stainless steel pawl springs
  • Corrosion protection
  • Adjustable end stop
  • 1.5m Lift height, call for longer
  • Optional extras (call us)
Final Configuration Price:
From: £188.98
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

William Hackett designed this lever hoist to accommodate all of the demands of an offshore rigger into an all-in-one specialist offshore lever block for corrosive environments.



LIGHT LOAD CAPABILITY: the SS-L5 QP is tested and certified at 2% of the lever hoist rated capacity.



DABS (Dual Anti-Lock Brake System): allows the load chain to be adjusted in freewheel mode without locking the brake.



CONSTRUCTION AND DESIGN: minimises the ingress of contaminates to the internal brake mechanism surfaces.



STAINLESS STEEL PAWL SPRINGS: Are specially designed to work with the SS-L5 QP patented quad pawls. The stainless steel springs are captivated in the brake chamber protecting them against damage.



SINTERED/FUSED BRAKE DISCS: the brake material of the SS-L5 QP is fused directly onto the ratchet gear. This reduces the number of mating faces where there is a potential for ingress of contaminants that could affect the brake performance. Grooves cut into the brake material allows water to be displaced from the friction surface.



CORROSION PROTECTION: the complete brake mechanism of the SS-L5 QP is corrosion protected including the pinion shaft, disc hub, change gear, ratchet gear, pawls, pawl stands and load sheave. In addition, the load chain guide, stay bolts and chain stripper are also corrosion protected.



ADJUSTABLE TRAVELLING END STOP: the uniquely designed traveling end stop of the SS-L5 QP lever hoist allows the operator to position the end stop at any point of the slack section of the Gr8 load chain. When the lever hoist is in a final rigged position the traveling end stop can be positioned adjacent to the body of the SS-L5 QP. This has the function of preventing the payout of the chain for whatever reason when the next time the lever hoist is operated.



TEMPERATURE RANGE: -40°C to +120°C.



OPTIONAL EQUIPMENT: the SS-L5 QP lever hoist can be fitted with an overload limiter and also hook adaptors to allow any Gr8 fixing to be fitted to the SS-L5 QP to suit varying applications.



The Hackett SS-L5 QP also meets and exceeds the requirements of international standards: British and European Standard BS EN13157: 2004 + AI: 2009; American Standard ASME B30.21-2014 Australian Standard AS 1418.2-1997; NORSOK R-002: 2017.

  • Light load capability
  • Dual anti-lock brake system
  • Stainless steel pawl springs
  • Corrosion protection
  • Adjustable end stop
  • 1.5m Lift height, call for longer
  • Optional extras (call us)
