In stock
SKU: YAL000008

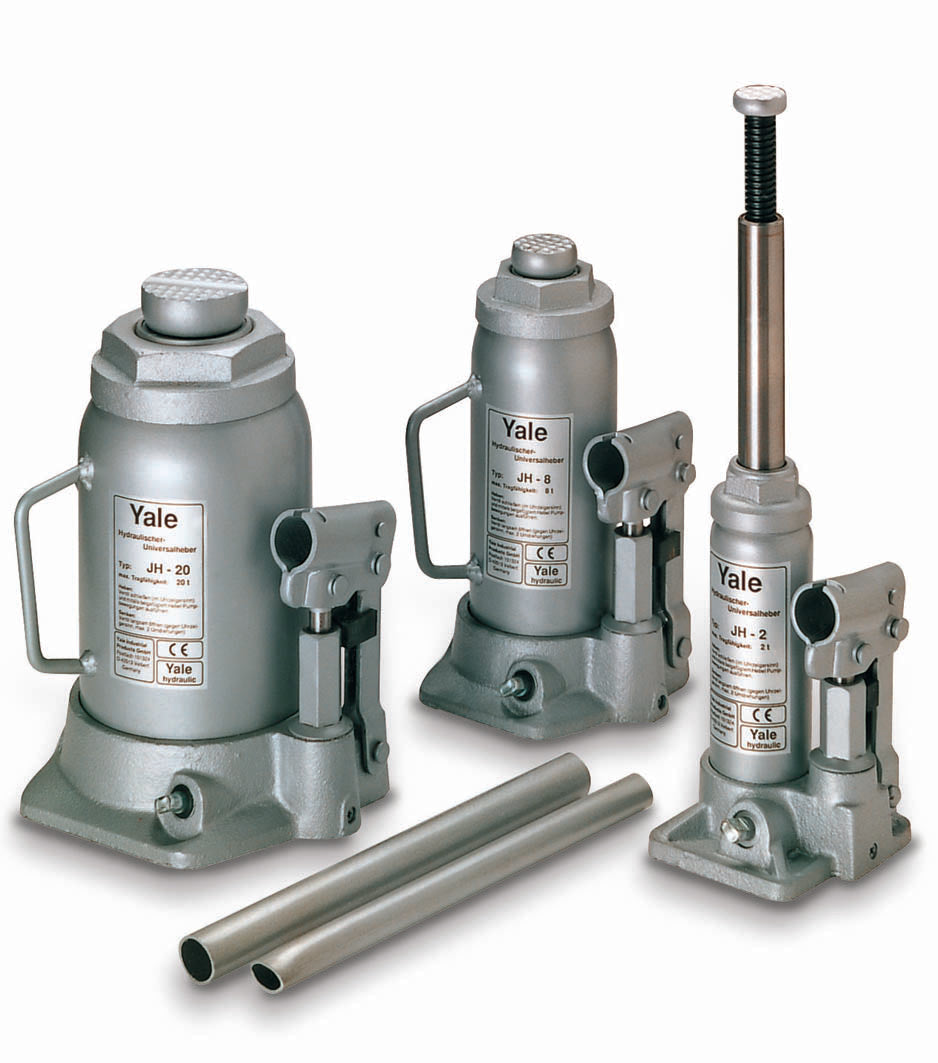

Yale Bottle Jack

From: £29.25
  • Up to 50,000kg lifting capacity
  • Suitable for pushing, lifting, moving and supporting of all kinds of loads.
  • Can be used in vertical positions only
Final Configuration Price:
From: £29.25
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Yale Bottle Jacks provide a universal solution for a variety of applications. Jack up your car and change your tire, Jack up that sit down lawn mower and clean the blade, for all the applications that require a jack. This is the One. Can be used in vertical positions to lift, push and support loads up to 50,000kg (model dependent). Complete with handle.

Operation is easy thanks to the traditional bottle jack design. Ensuring the pressure relief valve is closed the jack can be raised by inserting the handle into the pump, raising and lowering the pump will increase pressure within the cylinder and extend the piston. To lower the jack simply remove the handle and use the end as the lowering key, there are two grooves at the end of the handle which fits on to the pressure relief valve. Turning the valve anti-clockwise slowly provides a controlled lowering of the piston.

The innovative design of the Yale JH Universal Bottle Jack features a screw extension which provides an additional reach to remove the need to provide a taller base for the jack when attempting to reach objects that are further away. For example- lifting a high 4x4 might require you to place wooden blocks under a traditional bottle jack in order to reach the vehicles jacking point, the screw extension in the Yale JH model removes the need for this by providing up to an additional 80mm height (depending on the model- see specification table).

  • Jaw&Jaw configuration
  • Zinc plated
  • smooth greased fittings
  • DNV GL Certified

Model Capacity
Kgs
Closed Height
mm
Stroke
mm
Screw Extension
mm
Weight
Kgs
JH-2B 2,000 181 115 50 2.7
JH-4B 4,000 205 126 60 3.7
JH-6B 6,000 219 130 75 4.7
JH-8B 8,000 225 152 70 5.7
JH12B 12,000 240 153 80 8.0
JH20B 20,000 240 153 80 11.0
JH-30 30,000 280 180 - 22.0
JH50/2 50,000 305 178 - 53.0
