In stock
SKU: YAL003415

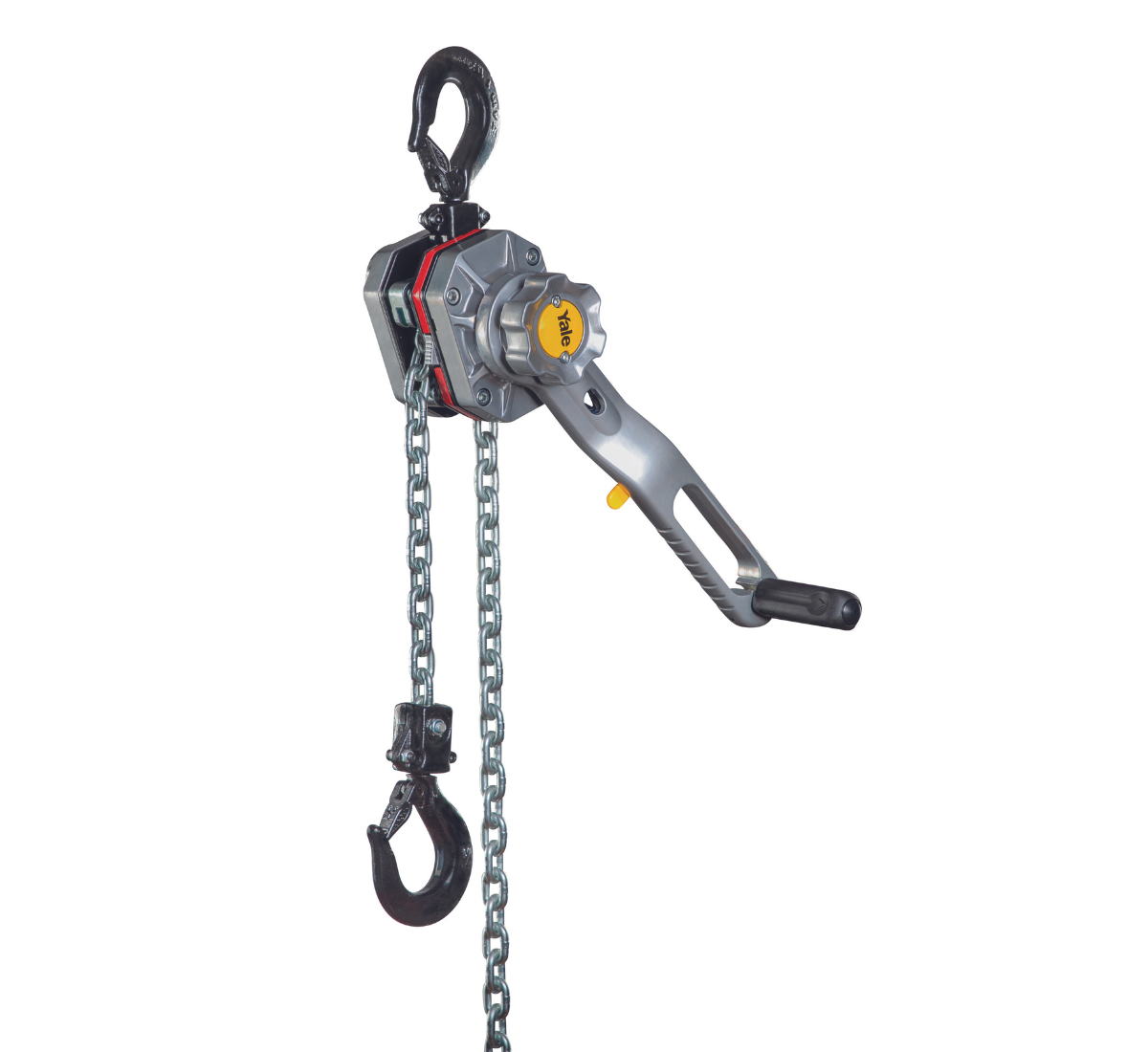

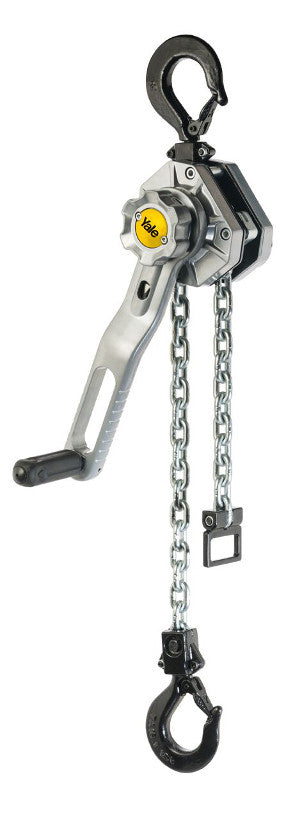

Yale ERGO 360 Ratchet Lever Hoist

From: $626.00
  • Up to 6000kg Capacity
  • Innovative foldable crank handle
  • 1.5 Meter standard height of lift
  • Overload protection available (POA)
Final Configuration Price:
From: $626.00
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Conventional ratchet lever hoists have certain limitations to the working position of the operator. It is difficult for the operator to apply his/her full force. Thanks to the new Yale ERGO 360 ratchet lever hoist this will be very different. The new design of the ERGO hand lever includes a foldable handle that enables the operator to use the lever as a crank from many different positions. This increases the working efficiency a huge amount. Users can work in a much quicker and less tiring way, this is particularly important for work in confined spaces and heavy duty applications. This new design also helps ease the transporting of the device, Simply unfold the handle and use it as a carrying grip (smart!!)

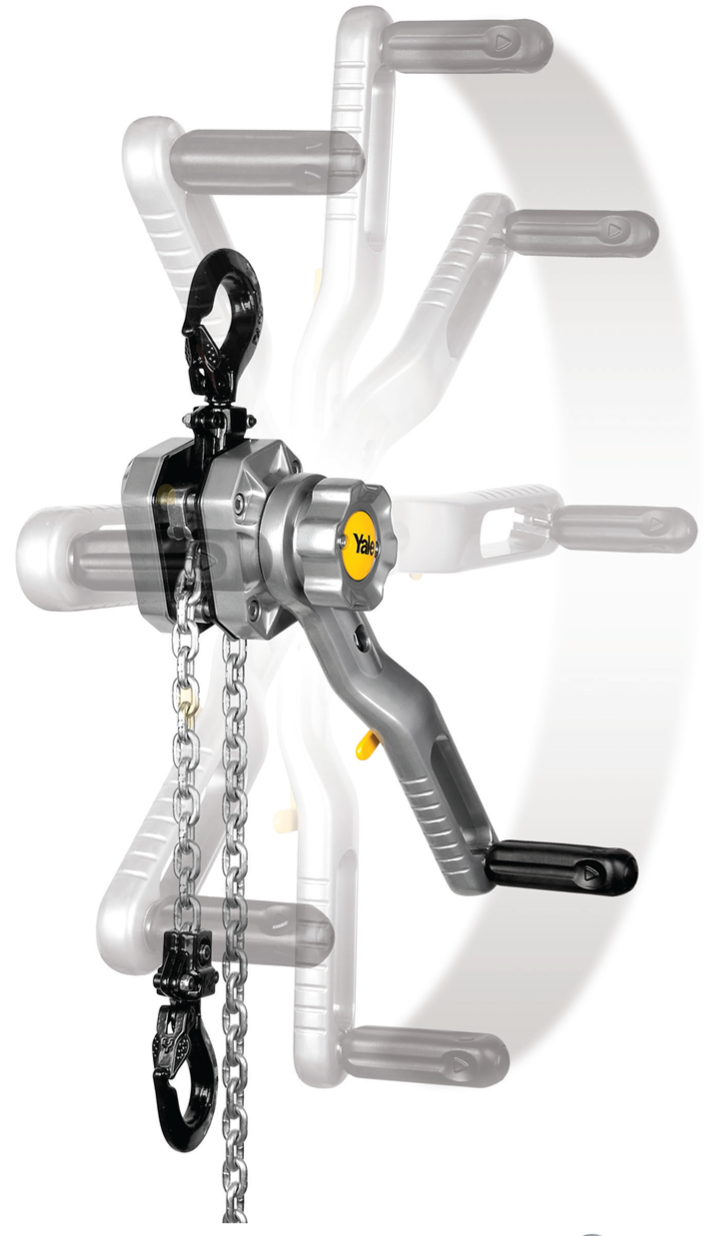

The Completly new designed ergo hand lever makes lifting and lowering operations much easier, working in confined spaces gets much easier. the new crank lever enables a full 360˚ operation and allows to work up to 12 times faster than a conventional ratchet lever hoist.

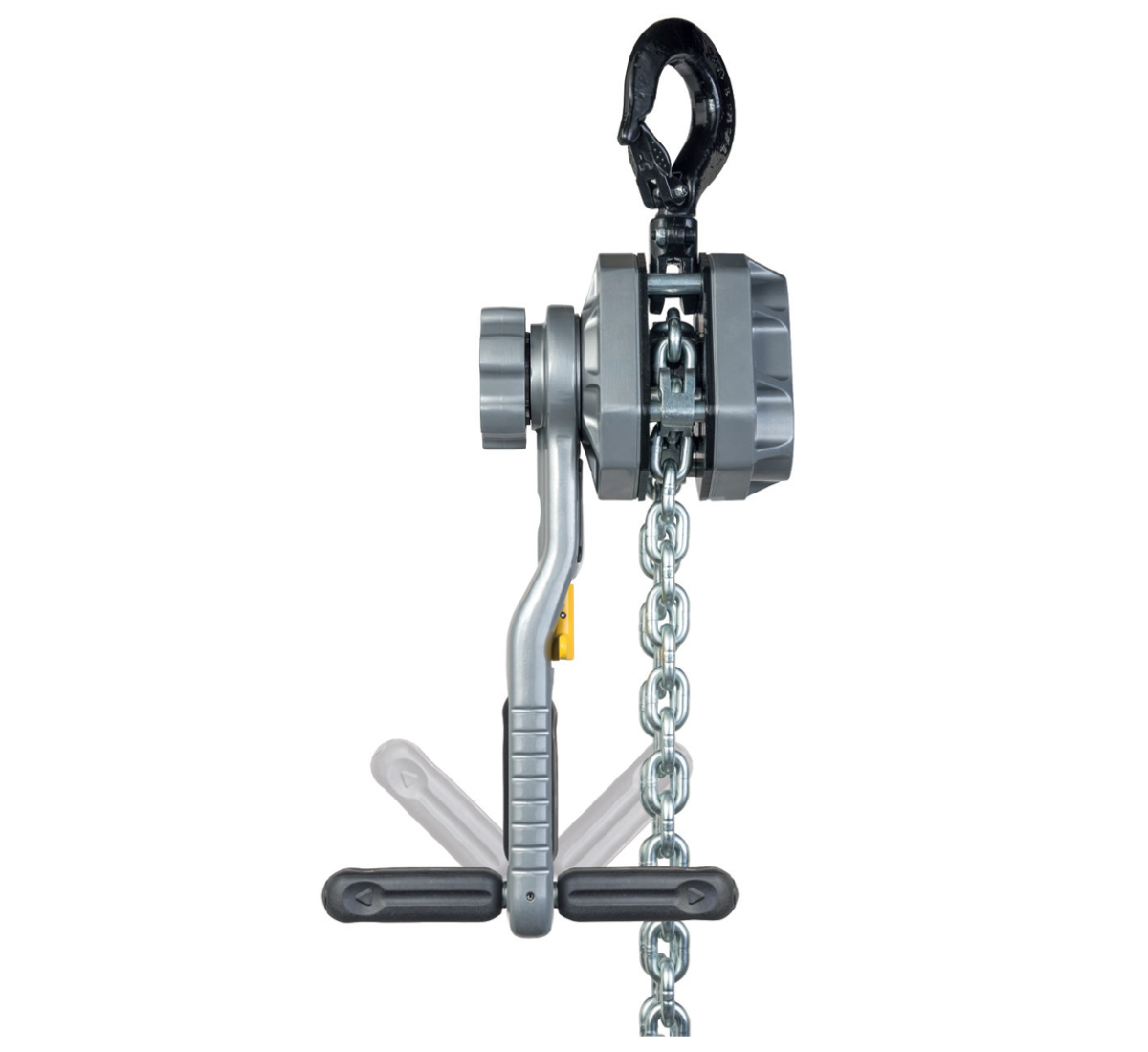

Folding out the handle is as simple as it sounds just give it a little push, can be done with one finger!



  • Up to 6000kg Capacity
  • Innovative foldable crank handle
  • 1.5 Meter standard height of lift
  • Overload protection available (POA)

Model EAN Capacity (kg) Number Of Chain Falls Chain Dimensions (DxP) (mm) Lift With One Lever Turn (mm) Handle Pull @ WLL (daN) Weight @ STD. Lift (kg)
ERGO360-750 4053891976625 750 1 5.6x17.1 27.2 20 6.6
ERGO360-1500 4053981979632 1500 1 7.1x21 21.7 26 9.5
ERGO360-3000 4053981979649 3000 1 10x28 20.1 40 16.8
ERGO360-6000 4053981981055 6000 2 10x28 10.1 42 28.6

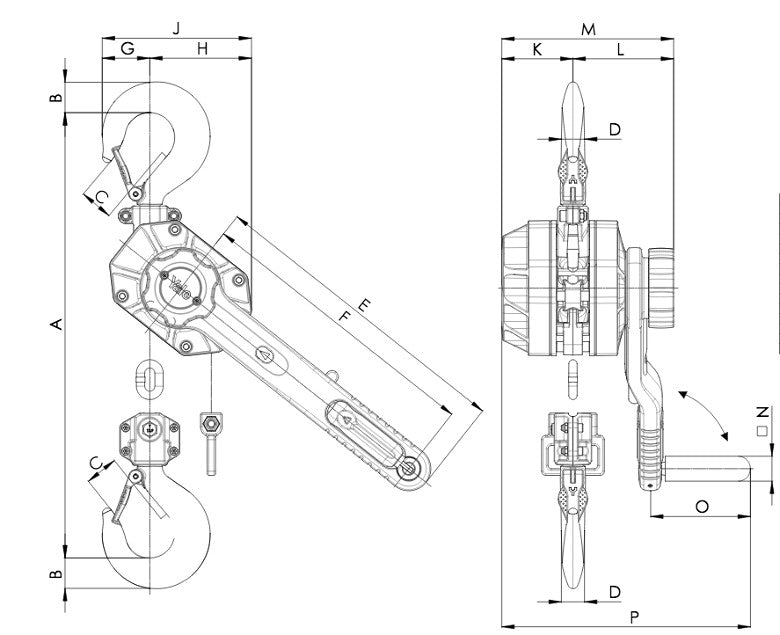

Model ERGO-750 ERGO-1500 ERGO-3000 ERGO-6000
A (mm) 320 375 445 563
B (mm) 20 26 37 45
C (mm) 27 31 40 44
D (mm) 18 21 28 35
E (mm) 327 327 377 377
F (mm) 300 300 350 350
G (mm) 40 51 57 87
H (mm) 81 96 123 162
J (mm) 121 147 180 238
K (mm) 56 69 86 86
L (mm) 105 110 121 121
M (mm) 161 179 207 207
N (mm) 30 30 30 30
O (mm) 120 120 120 120
P (mm) 257 273 299 299
