SKU: YAL005218

Yale Hydraulic Manifolds

From: £61.07
  • Maximum of 700 Bar of pressure
  • Available with shut off valves
  • Up to 6 shut off valves on one manifold
Final Configuration Price:
£61.07
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

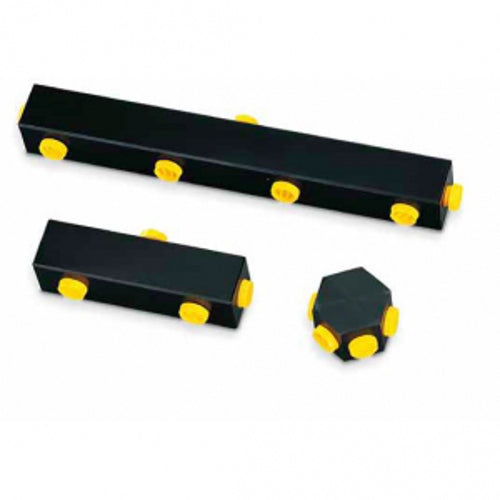

Yale Hydraulic Manifolds are used when several hydraulic cylinders have to be connected to one pump. All MY Manifolds are equipped with 3/8 NPT inner oil ports, so that fittings, hydraulic hoses, and couplers can be easily attached. These are shown in image 1 (with yellow caps).

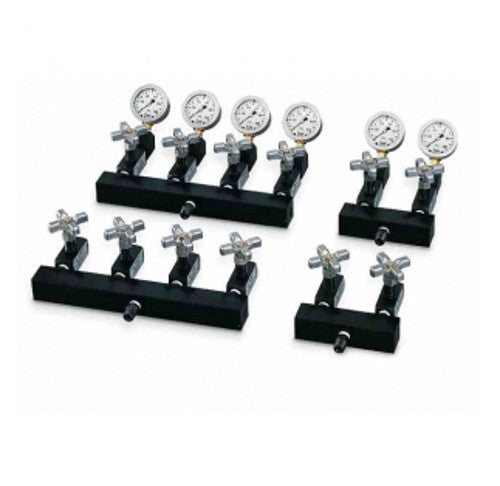

Manifolds with shut off valves are used when different pressures must be maintained in each hydraulic line. Therefore, they allow the lifting of unequal loads. The manifolds are ready assembled and can be connected to a hand pump or power pack via hoses or screwed directly. These are shown in image 2.

  • Ideal for applications with multiple cylinder
  • Manifolds with shut-off valves and guages are ideal for where different pressures are required

Model Description Weight
MY-1 Oil port - 6 x 3/8 - NPT inner 0.5kg
MY-2 Oil port - 4 x 3/8 - NPT inner 0.6kg
MY-4 Oil port - 7 x 3/8 - NPT inner 1.4kg
MY-22 Manifold with 2 shut-off valves 1.8kg
MY-44 Manifold with 4 shut-off valves 3.7kg
MY-66 Manifold with 6 shut-off valves 5.5kg
MY-22-GYA Manifold with 2 shut-off valves and 2 pressure gauges 2.8kg
MY-44-GYA Manifold with 4 shut-off valves and 4 pressure gauges 5.7kg
MY-66-GYA Manifold with 6 shut-off valves and 6 pressure gauges 8.5kg
