SKU: YAL005067

Yale RPA Pneumatic Wire Rope Winches

Price on Application

RPA Pneumatic wire rope winches - pulling force:250-500daN

PLEASE CALL TO ORDER

Estimated time to dispatch
Estimated time to dispatch: 4-6 Weeks
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

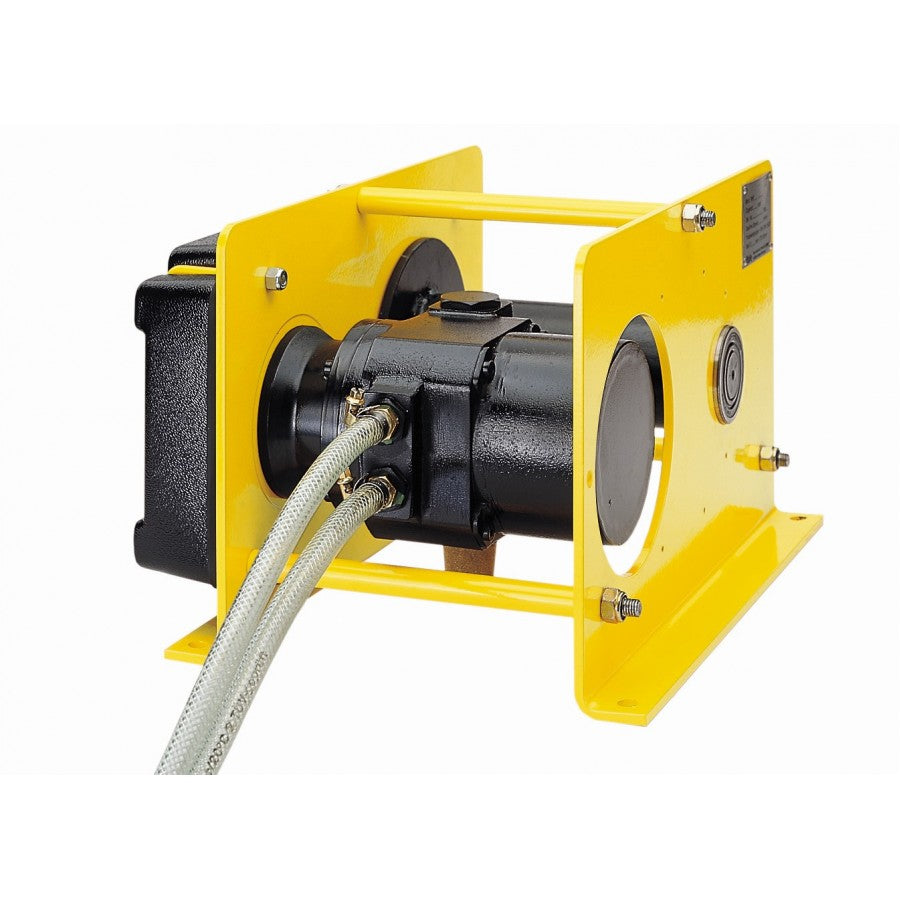

RPA Pneumatic Wire Rope Winch

Boasting a pulling force of 250 - 500daN, these winches have the same concept & design as the Yale RPE models however they also come complete with a 100% duty rating. These have been manufactured to the highest quality meaning an unlimited number of starts making it suitable for heavy duty applications. The RPA winches are not liable to contamination, moisture aggressive ingress of contaminates.


Features of RPA:

  • Top quality rotating motor equipped with high starting torque
  • Designed for operating pressures between 4-6 bar.
  • Sensitive control via direct acting valves in the control
  • Will hold the load even in the event of a power cut due to the spring pressure disc brake.


Two Models are available: (Tech specs below)

RPA 2-13 : Pulling force 250daN
RPA 5-6  : Pulling force 500daN

TECHNICAL SPECIFICATIONS:


Model Pulling force in
upper layer daN
Lifting speed with
rated load m/min
Lifting speed without
load* m/min
Lowering speed with rated load m/min Rope
Diameter
mm
Usable rope  length
1st       layer      mtr
Usable rope length 2nd layer mtr Usable rope length 3rd layer mtr Usable rope length 4th layer mtr Weight

(kg)
RPA 2-13 250 13.6 20.0 22.0 4 11.2 24.4 38.8 54.5 36.7
RPA 5-6 500 6.9 10.0 11.0 6 7 16.4 27 38.8 36.7




Optional Extras (For RPA/RPE Models):



  • Control that includes 2.5mtr hose and air coupler
  • Corrosion proof version available on request
  • Different drum designs available: e.g. extended to hold the larger rope. Machined grooves for exact reeling, with separation web & second rope outlet for working with two ropes and traversing operation.
  • Maintenance unit for the main air supply pipe (pressure regulator, manometer, lubricator and support)






** please note that the prices shown do not include ropes!
