In stock
SKU: YAL004236

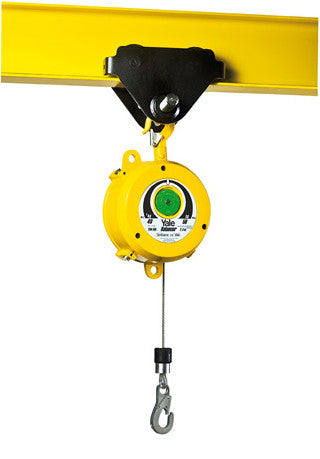

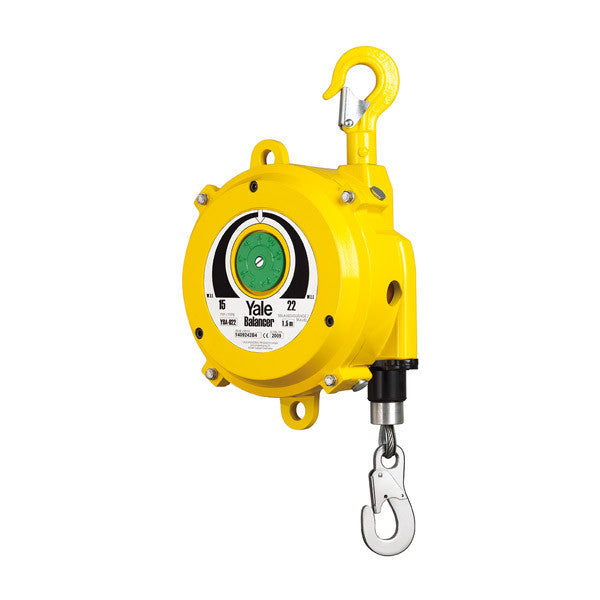

Yale YBA Spring Balancer

From: £606.08
  • Up to 70kg Capacity
  • Available in 1.5-meter standard length and 2.3-meter extended length
Final Configuration Price:
From: £606.08
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

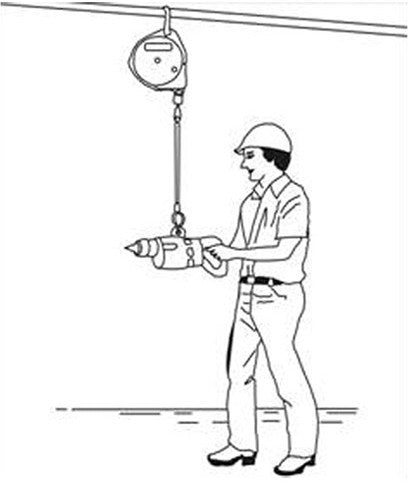

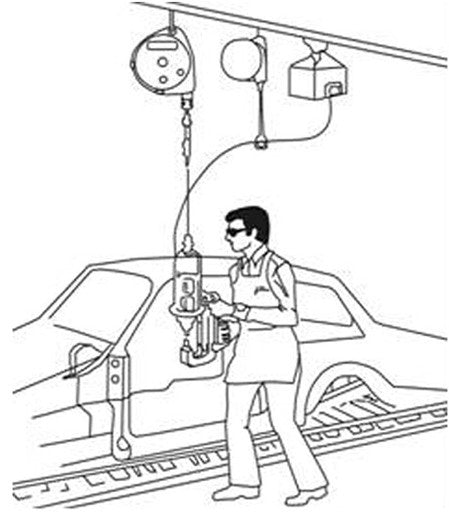

The YBA Spring Balancers allow the worker to move the suspended tool or object up or down with every little effort. Depending on the spring adjustments, the object will remain in position or retract when no force is applied. The YBA Series has all the same features as the YBF series but also has a wire arrest system. This is ideal for applications where there is the possibility of damage to the wire stands e.g. fabrication and welding production lines.

With a spiral groove on a tapered drum, the winding radius is increased to match the torque build up of the spring., thus neutralising it and achieving a balanced condition. This is the main difference between spring balancers and retractors.

Retractors are designed to retract the cable when no force is applied. An amount of downward force must be continually applied to keep the suspended object at its extended position. The Torque output of the rewind spring increases as the cable is extended and retracting the suspended object to the uppermost adjusted position when released.

Please note that these Spring Balancers are NOT lifting devices and should NOT be used as a load arrester.

  • Up to 70kg Capacity
  • Available in 1.5-meter standard length and 2.3-meter extended length

Model Part Number Capacity (kg) Lift Height (mtr) Weight (kg)
YBA-15 N08300033 9 - 15 1.3 5.5
YBA-22 N08300034 15 - 22 1.5 9.5
YBA-30 N08300035 22 - 30 1.5 10
YBA-40 N08300036 30 - 40 1.5 12.5
YBA-50 N08300037 40 - 50 1.5 13
YBA-60 N08300038 50 - 60 1.5 13.5
YBA-70 N08300039 60 - 70 1.5 14
YBA-15L N08300040 9 - 15 2.3 10
YBA-22L N08300041 15 - 22 2.3 10
YBA-30L N08300042 22 - 30 2.3 11
YBA-40L N08300043 30 - 40 2.3 14.5
YBA-50L N08300044 40 - 50 2.3 15
YBA-60L N08300045 50 - 60 2.3 16
YBA-70L N08300046 60 - 70 2.3 16.5
