In stock
SKU: YAL004988

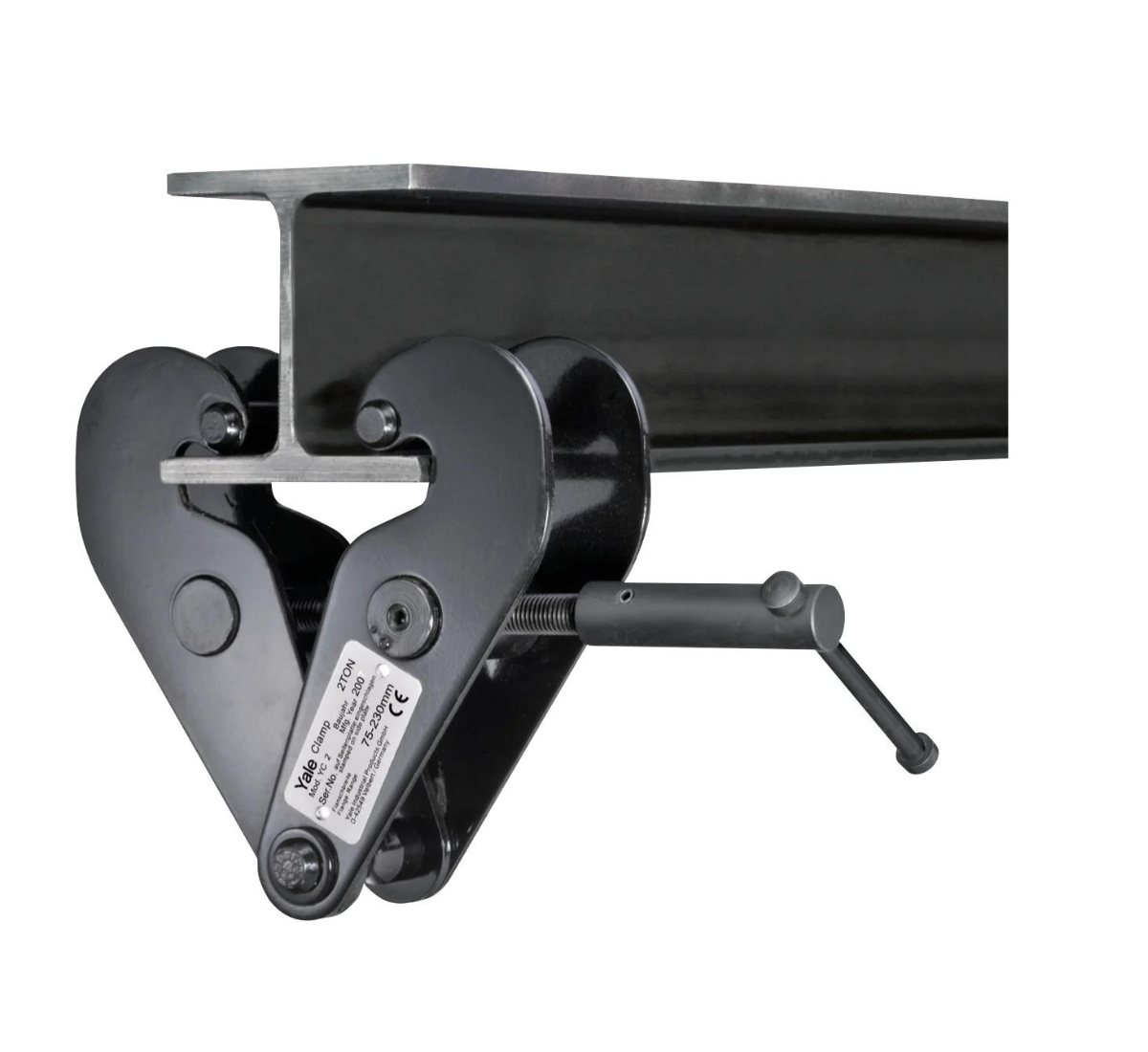

Yale YC Standard Beam Clamp

From: £66.67
  • Yale 'Standard' Beam Clamp
  • Capacity: 1,000kg up to 10,000kg
  • Beam Width: Starting from 75mm up to 320mm (Please See Spec Table)
Final Configuration Price:
£66.67
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

 Yale YC 'Standard' Beam Clamp provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads and comes complete with a locking device. The unit offers flexible applications, due to the wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip to the beam flange.

  • High-quality design and powder-coated finish
  • Black colour- ideal for theatre use
  • Models up to 320mm beam and 10,000kg WLL
  • Lightweight and easy to install
  • Yale 12 month return to base warranty

Model Capacity (SWL)
Kgs
Beam Width
mm
Weight
Kgs
YC1 1,000 75-230 3.8
YC2 2,000 75-230 4.6
YC3 3,000 80-320 9.2
YC5 5,000 90-320 11.0
YC10 10,000 90-320 17.2

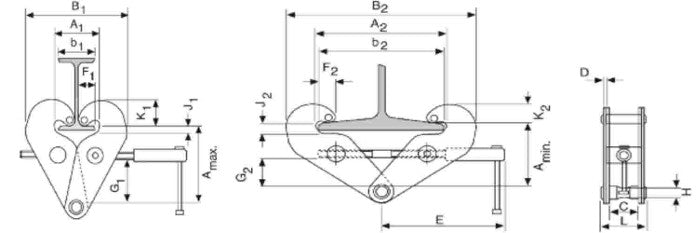

 Dimensions

Model A Min (mm) A Max (mm) A1 (mm) A2 (mm) B1 (mm) B2 (mm) b1 (mm) b2 (mm) C (mm) D (mm) E (mm) F1 (mm) F2 (mm) G1 (mm) G2 (mm) H (mm) J1 (mm) J2 (mm) K1 (mm) K2 (mm) L (mm)
YC1 115 150 78 246 186 350 75 230 50 4 215 34 17 82 44 20 14 21 48 31 84
YC2 115 150 78 246 186 350 75 230 50 6 215 35 18 82 44 20 14 21 50 32 94
YC3 180 225 80 320 232 455 80 320 70 8 255 35 21 120 75 22 30 34 60 40 122
YC5 180 225 90 310 242 445 90 310 70 10 255 35 21 116 75 28 30 34 60 42 129
YC10 175 220 90 320 268 480 90 320 70 14 275 35 20 110 66 38 34 35 60 40 146
