- Supplied with an EC declaration of conformity.
- Supplied with a 3.1 material certificate upon request.
- Supplied without wires; design your own wiring plan.
- Full CAD support available upon request.

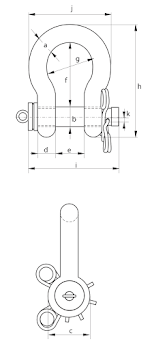

| Product Code | W.L.L | a | b | c | d | e | f | g | h | i | j | k | Weight | Technical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgs / ea | Specification | |
| GPROV53636.5 | 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 5.5 | 1.77 | Download |
| GPROV53639.5 | 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 6.5 | 3.66 | Download |
| GPROV536312 | 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 184 | 147 | 6.5 | 4.91 | Download |
| GPROV536317 | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 6.5 | 8.19 | Download |
| GPROV536325 | 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 8.5 | 14.22 | Download |
| GPROV536355 | 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 330 | 310 | 8.5 | 39.59 | Download |
| GPROV536385 | 85 | 75 | 83 | 162 | 73 | 127 | 329 | 190 | 527 | 380 | 340 | 8.5 | 62 | Download |
