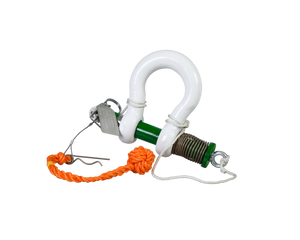

- This shackle is assembled with wire rope slings and monkey’s fist for size starting from WLL 42.5 up to and including 150t.
- A special compression tool (sold separately) is required to assemble the shackle.
- Full CAD support available upon request.

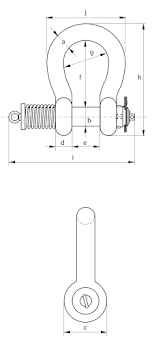

| Product Code | W.L.L | a | b | c | d | e | f | g | h | i | j | Weight | Technical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgs / ea | Specification | |
| GPROV536712 | 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 215 | 188 | 147 | 4.91 | Download |
| GPROV536717 | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 250 | 217 | 175 | 8.19 | Download |
| GPROV536725 | 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 250 | 216 | 14.22 | Download |
| GPROV536755 | 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 330 | 310 | 42 | Download |
| GPROV536785 | 85 | 75 | 83 | 162 | 73 | 127 | 329 | 190 | 527 | 380 | 340 | 67 | Download |
| GPROV5367120 | 120 | 95 | 95 | 208 | 91 | 147 | 399 | 238 | 646 | 687 | 428 | 123 | - |
| GPROV5367150 | 150 | 105 | 108 | 238 | 102 | 169 | 410 | 275 | 688 | 727 | 485 | 168 | - |
