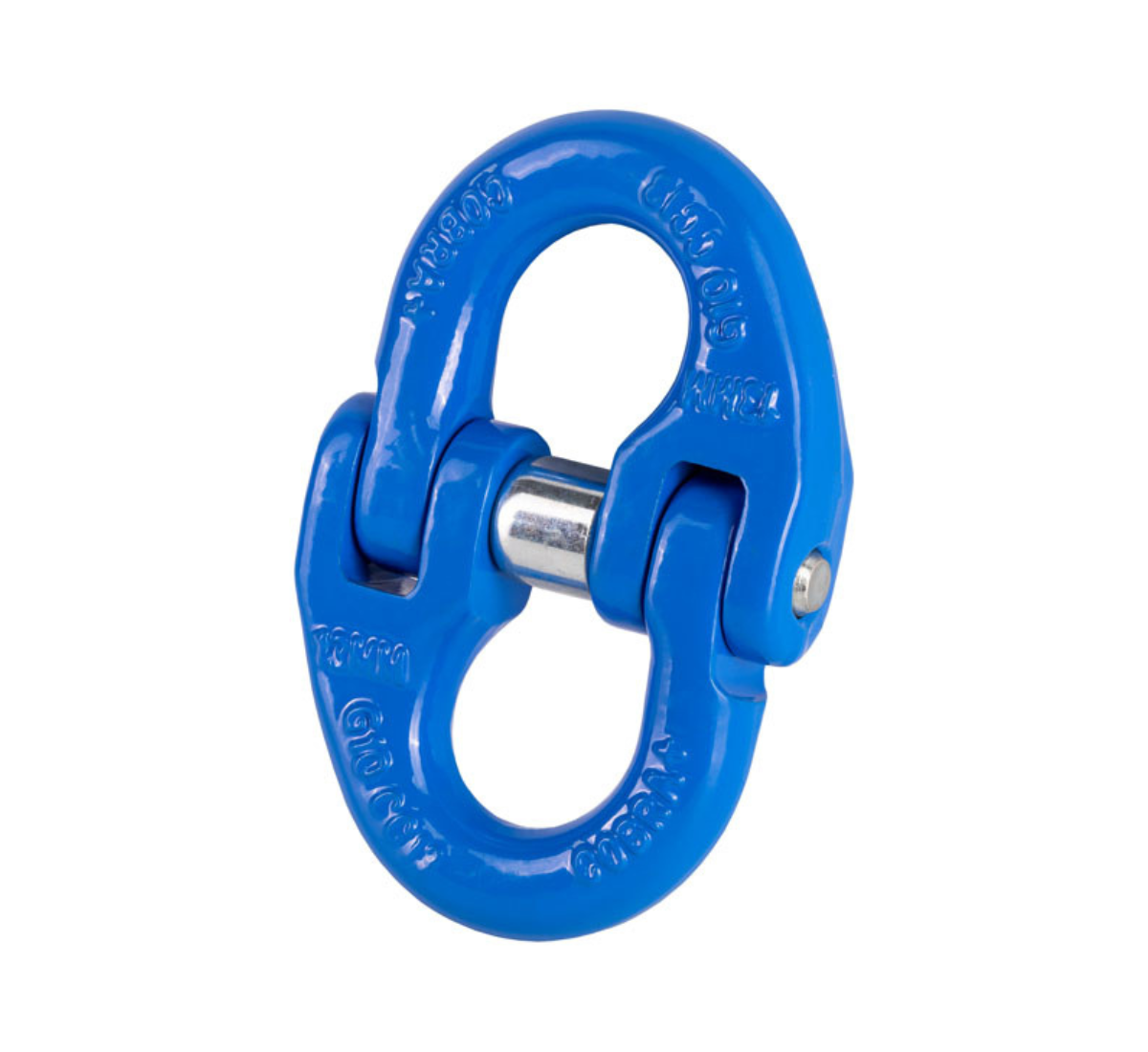

Component Connectors are one of the most vital elements of a chain sling assembly, and there's no better choice that this Grade 10 model from George Taylor's Cobra Plus range.
With options available to suit chain diameters from 6mm up to 16mm, these units are engineered from durable grade 10 alloy steel and can performed exceptionally in temperatures range from -20°C up to +200°C.
For complete traceability, these component connectors are marked with Cobra+, material grade, size, product ID mark and traceability code. Additionally, they meets W.L.L. perf. req. of BS EN 1677-1 +25% of loads.

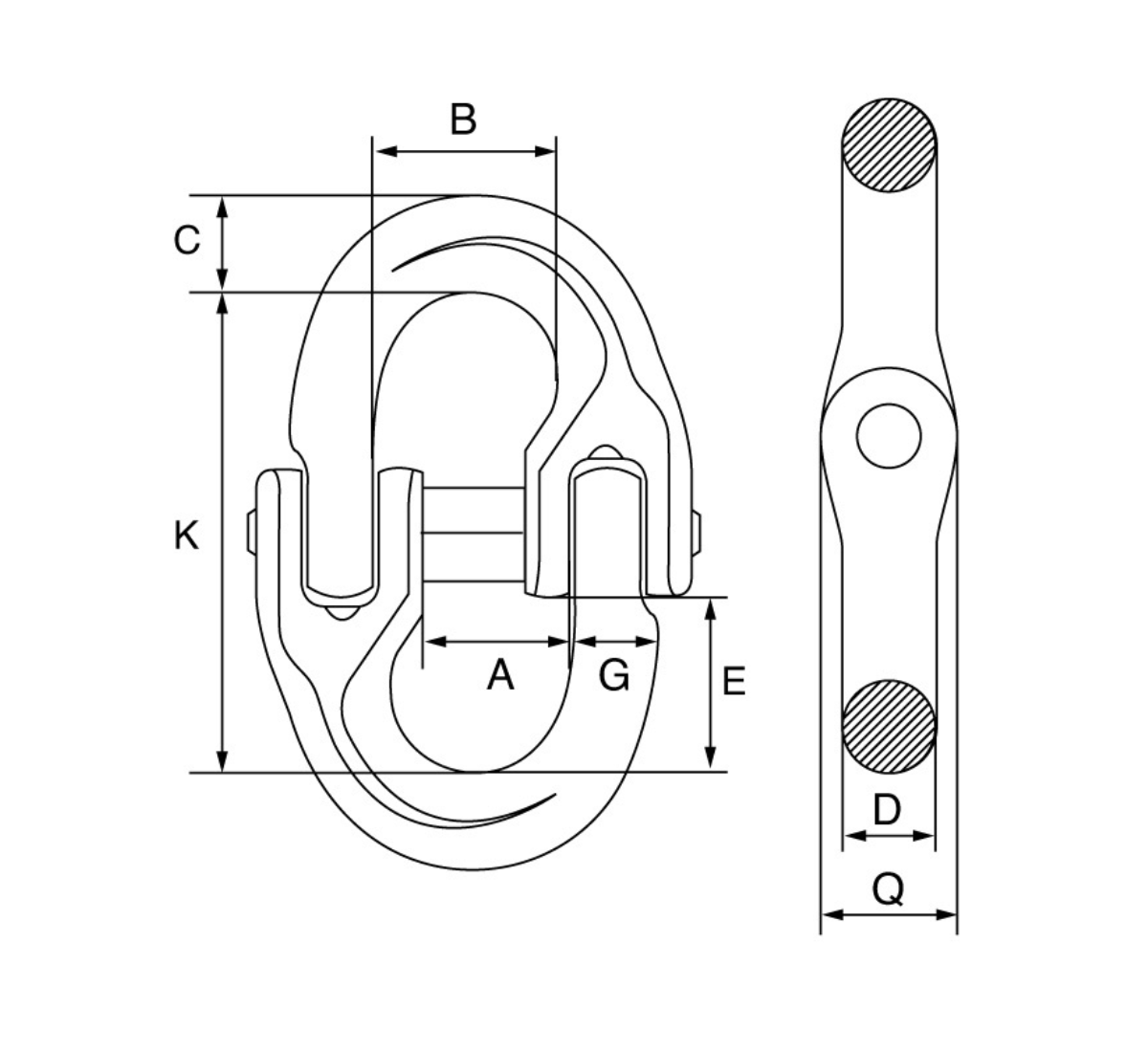

DIMENSIONS
|
SKU |
Chain Dia. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
K (mm) |
E (mm) |
G (mm) |
Q (mm) |
|
G100CC6 |
6 |
14 |
16.9 |
8.5 |
7 |
44.5 |
16 |
7.4 |
12 |
|
G100CC8 |
8 |
18.5 |
22.7 |
10.5 |
10 |
63 |
24 |
10.2 |
14 |
|
G100CC10 |
10 |
23 |
27.7 |
12.6 |
12.6 |
71 |
28 |
12.6 |
18 |
|
G100CC13 |
13 |
28 |
33.2 |
16.5 |
16.5 |
92.5 |
34 |
17 |
23 |
|
G100CC16 |
16 |
33.5 |
39 |
20 |
20 |
106.5 |
39 |
20 |
29.5 |
TECHNICAL DATA
|
Chain Dia. (mm) |
W.L.L (t) |
M.P.F (t) |
M.B.F (t) |
Weight (kgs) |
|
6 |
1.4 |
3.5 |
5.6 |
0.08 |
|
8 |
2.5 |
6.25 |
10 |
0.17 |
|
10 |
4 |
10 |
16 |
0.34 |
|
13 |
6.7 |
16.75 |
26.8 |
0.68 |
|
16 |
10 |
25 |
40 |
1.22 |
