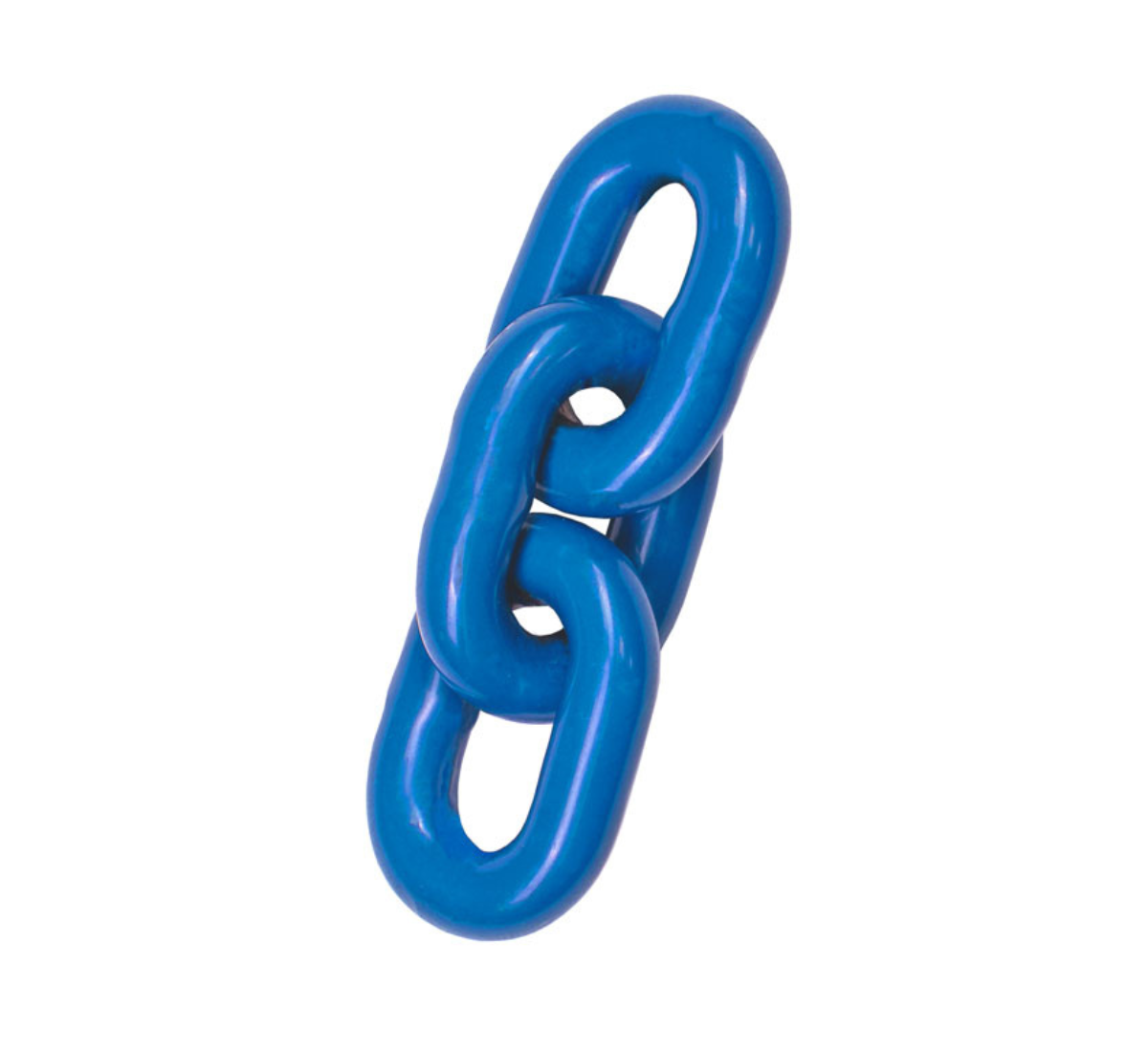

Grade 10 alloy steel, heat treated.
- Blue painted finish.
- To PAS 1061 & Meets W.L.L. perf. req. of BS EN 818-2 +25% of loads.
- Temp. Range -20°C up to +200°C.
- M.B.L. equals 4 x W.L.L.
- Marked with material grade, manufacturers ID, size and traceability code.

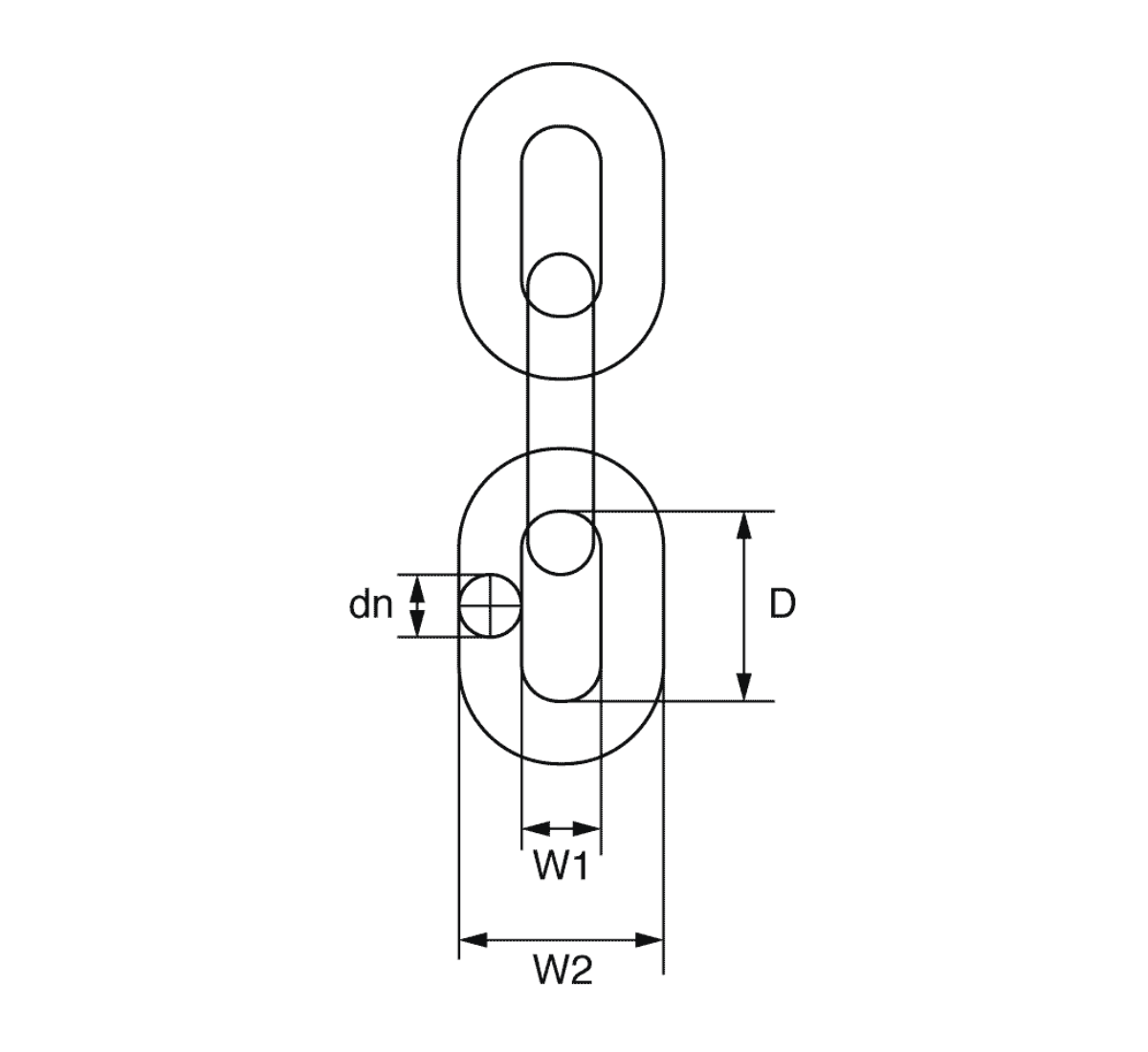

DIMENSIONS
|
Code |
W.L.L (t) |
M.P.L (kN) |
M.B.L (kN) |
dn (mm) |
D (mm) |
W1 Min (mm) |
W2 Max (mm) |
Weight (kgs/m) |
|
G100C6 |
1.4 |
35.3 |
56.5 |
6 |
18 |
7.8 |
22.2 |
0.8 |
|
G100C8 |
2.5 |
62.8 |
101 |
8 |
24 |
10.4 |
29.6 |
1.5 |
|
G100C10 |
4 |
98.1 |
157 |
10 |
30 |
13 |
37 |
2.3 |
|
G100C13 |
6.7 |
166 |
265 |
13 |
39 |
16.9 |
48.1 |
3.9 |
|
G100C16 |
10 |
251 |
402 |
16 |
48 |
20.8 |
59.2 |
5.8 |
