In stock
SKU: GRE000029

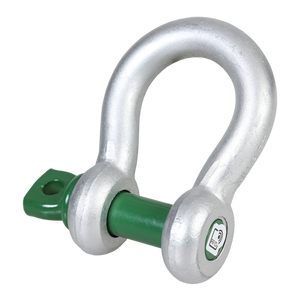

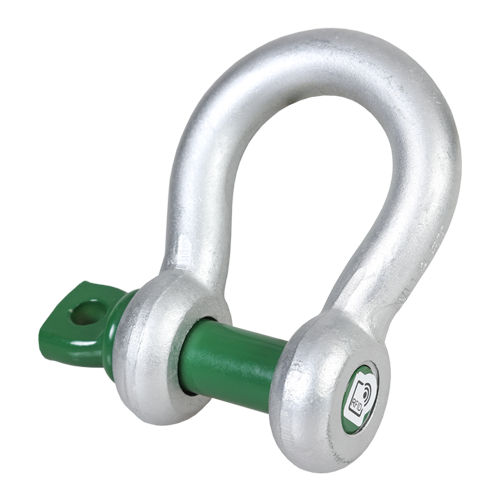

Green Pin Standard Bow Shackles With Screw Collar Pin

From: £2.89
  • Vanbeest Green Pin Brand
  • Anchor Shackle (Bow Shackle)
  • Screw Pin
  • DNV Type Approved
  • Choose Your Capacity/Size Below
  • Made in The Netherlands
Final Configuration Price:
From: £2.89
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Green Pin Bow Shackles are premium quality and of Dutch (European) quality- you can be sure you are buying the best when it comes to Lifting Shackles.
Featuring a wide bow and galvanised finish, each Green Pin Bow Shackle can be instantly recognized afar with its vivid green screw pin.

Material: Bow & Pin high tensity steel
Safety Factor: MBL equals 6 x WLL
Standard: EN 13889 and meets the performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
Finish: Hot dipped galvanised
Temperature Range: -20C to +200C

  • Vanbeest Green Pin Brand
  • Anchor Shackle (Bow Shackle)
  • Screw Pin
  • DNV Type Approved
  • Choose Your Capacity/Size Below
  • Made in The Netherlands

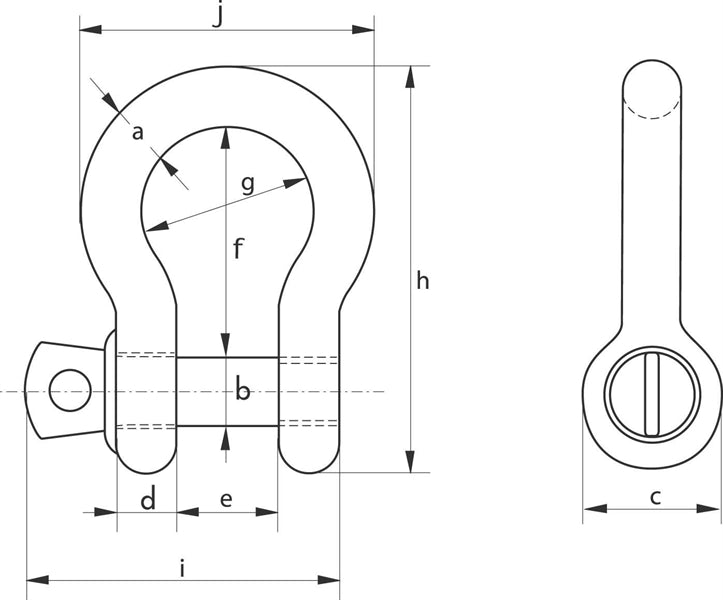

Code

WLL

(Tonnes)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

I

(mm)

J

(mm)

Weight

(Kgs)

A0101 0.33 5 6 12.5 5 9.5 22 16 41 31 28 0.02
A0102 0.50 7 8 17 7 12 29 20 54 40 37 0.05
A0103 0.75 9 10 21 9 13.5 32 22 61 49 42 0.10
A0104 1.00 10 11 23 10 17 36.5 26 71 56 49 0.14
A0105 1.50 11 13 26 11 19 43 29 80 68 54 0.19
A0106 2.00 13.5 16 34 13.5 22 51 32 91 76 63 0.36
A0107 3.25 16 19 40 16 27 64 43 114 93 79 0.63
A0108 4.75 19 22 47 19 31 76 51 136 107 94 1.01
A0109 6.50 22 25 53 22 36 83 58 157 123 107 1.50
A0110 8.50 25 28 60 25 43 95 68 176 141 124 2.21
A0111 9.50 28 32 67 28 47 108 75 197 158 137 3.16
A0112 12.00 32 35 74 32 51 115 83 218 176 154 4.31
A0113 13.50 35 38 80 35 57 133 92 240 192 170 5.55
A0114 17.00 38 42 89 38 60 146 99 262 208 183 7.43
A0115 25.00 45 50 104 45 74 178 126 314 250 226 12.84
A0116 35.00 50 57 111 50 83 197 138 358 281 250 18.15
  42.50 57 65 134 57 95 222 160 414 321 287 26.29
A0117 55.00 65 70 145 65 105 260 180 463 355 329 37.60
