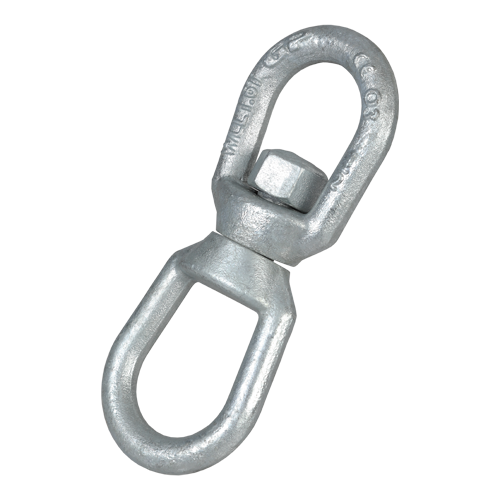

Thrust bearing swivels are used to prevent wire rope or chain from transferring their normal twisting motion to the item being lifted. Green Pin swivels are not designed to rotate under load, but are intended as positioning devices only. For rotating under load; thrust bearing swivels should be used. Our swivels can be supplied with two types of end fittings.
Green Pin swivels ranging from WLL 0.39 up to 20.5 tones, with Eye/Eye or Jaw/Eye terminations. Thrust bearing swivels, ranging from WLL 1 up to 40 tones, with Eye/Eye terminations.
LES can also offer other types of swivels in Grade 8 & Grade 10 upon request. Please contact our office for more information.
Datasheets

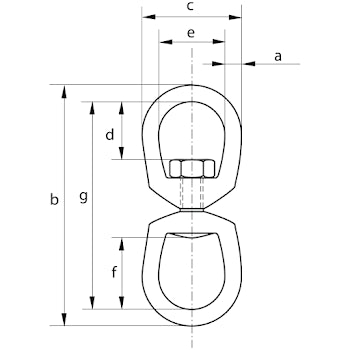

| Code | WLL | A | B | C | D | E | F | G | Weight |
|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | kgs / ea | |
| GPSEE6 | 0.39 | 6 | 87 | 32 | 18 | 19 | 27 | 75 | 0.1 |
| GPSEE8 | 0.57 | 8 | 106 | 41 | 21 | 25 | 32 | 90 | 0.18 |
| GPSEE10 | 1.02 | 10 | 129 | 51 | 24 | 32 | 38 | 109 | 0.32 |
| GPSEE13 | 1.6 | 13 | 164 | 64 | 33 | 38 | 51 | 138 | 0.6 |
| GPSEE16 | 2.4 | 16 | 199 | 76 | 40 | 44 | 60 | 167 | 1.13 |
| GPSEE19 | 3.3 | 19 | 221 | 89 | 44 | 51 | 67 | 183 | 1.82 |
| GPSEE22 | 4.5 | 22 | 257 | 102 | 52 | 57 | 78 | 213 | 2.83 |
| GPSEE25 | 5.7 | 25 | 295 | 114 | 59 | 64 | 89 | 245 | 4.06 |
| GPSEE32 | 8.2 | 32 | 337 | 143 | 68 | 80 | 94 | 273 | 7.43 |
| GPSEE38 | 20.5 | 38 | 501 | 178 | 102 | 102 | 150 | 425 | 20.8 |
