In stock
SKU: MOD000048

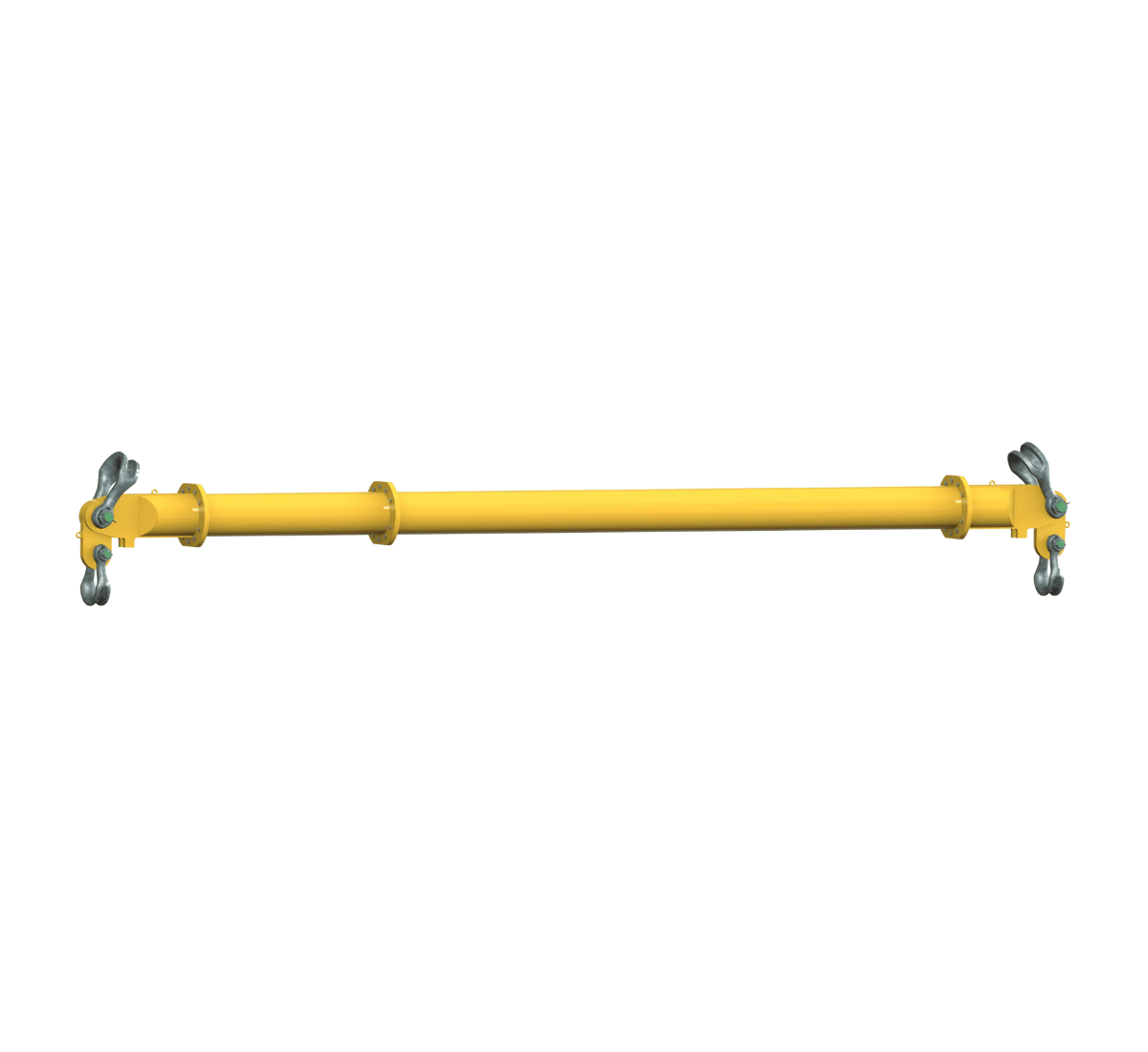

Modulift MOD24 24 Tonne Modular Spreader Beam

From: £1,493.33
Made in the UK
  • Maximum Capacity (WLL): 24 Tonnes
  • Span Range: 1m - 8m
  • Sling To Vertical Angles (STV): 20º / 30º / 45º
  • Interchangeable components
  • Each kit contains: 2 x End Units (0.5m each), 2 x Drop Links
  • Strut lengths: 0.5m, 1m, 2m
  • Please note: shackles are not included, please use the complete your order section below to add them to your cart
Final Configuration Price:
£1,493.33
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

If you’re in the market for a premium off-the-shelf spreader beam, we guarantee that global leading specialist Modulift has a solution that suits your lifting requirements, no matter how niche your marketplace is.

Expertly designed by experienced industry professional engineers utilising specialist machinery and techniques, Modulift Spreader Beams are a super lightweight solution that enables your crane(s) to work at maximum capacity by reducing the weight of your below-the-hook lifting tackle.

Versatile and cost-effective, the modular configuration and easily interchangeable components of Modulift Spreader Beams mean that they can be used and reused over an extended period of time for different lifting scenarios - Modulift puts the power in your hands. Should at any point you require a longer span, just contact us and we can arrange the purchase of a single strut length to add to your kit. Available strut lengths for the MOD24 kit are 0.5m, 1m, and 2m.

Boasting a maximum safe working load limit of 24 Tonnes, the MOD24 Modular Spreader Beam kit consists of a pair of End Units and a pair of Drop Links, with your chosen span made up of interchangeable struts, from 0.5m up to 2m, that are simply bolted into the assembly between the end units – giving you the freedom to shorten or lengthen your assembly at any point to suit different types of lifts.

To order, please select your required span from the drop down menu to the right. Please see the 'Specifications' tab Table 2 for working load limits and STV angles, as well as spreader beam span configurations.

We suggest having the following tools on hand to complete the assembly of your Modulift Spreader Beam: Torque wrench, podger spanner, and ring spanner. Bolt tightening torque is 60Nm, 17mm spanner size is required.

What top sling types are recommended?

At LES, we suggest the use of textile slings, wire rope slings with soft eyes, or chain slings with small end fittings with your Modulift MOD6 Spreader Beam. If thimble eyes are used with your wire rope slings, please ensure that the sling angle is 30 degrees or less. Click the links above to view our available slings.

WARNING:

All personnel using this Modulift spreader beam system should be suitably trained, competent, and have a clear understanding of safe slinging procedures. The use of Modulift equipment MUST BE in accordance with 'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER). NOTE: Please see Specifications/Downloads tab(s) for sling angles and safe working load limits.

PLEASE NOTE: LARGER CAPACITIES UP TO 400 TONNES ARE AVAILABLE ON SPECIAL REQUEST. PLEASE CONTACT OUR SALES TEAM OVER THE PHONE OR VIA OUR ONLINE ENQUIRY FORM FOR FURTHER DETAILS.

  • Maximum Capacity (WLL): 24 Tonnes
  • Span Range: 1m - 8m
  • Sling To Vertical Angles (STV): 20º / 30º / 45º
  • Interchangeable components
  • Each kit contains: 2 x End Units (0.5m each), 2 x Drop Links
  • Strut lengths: 0.5m, 1m, 2m
