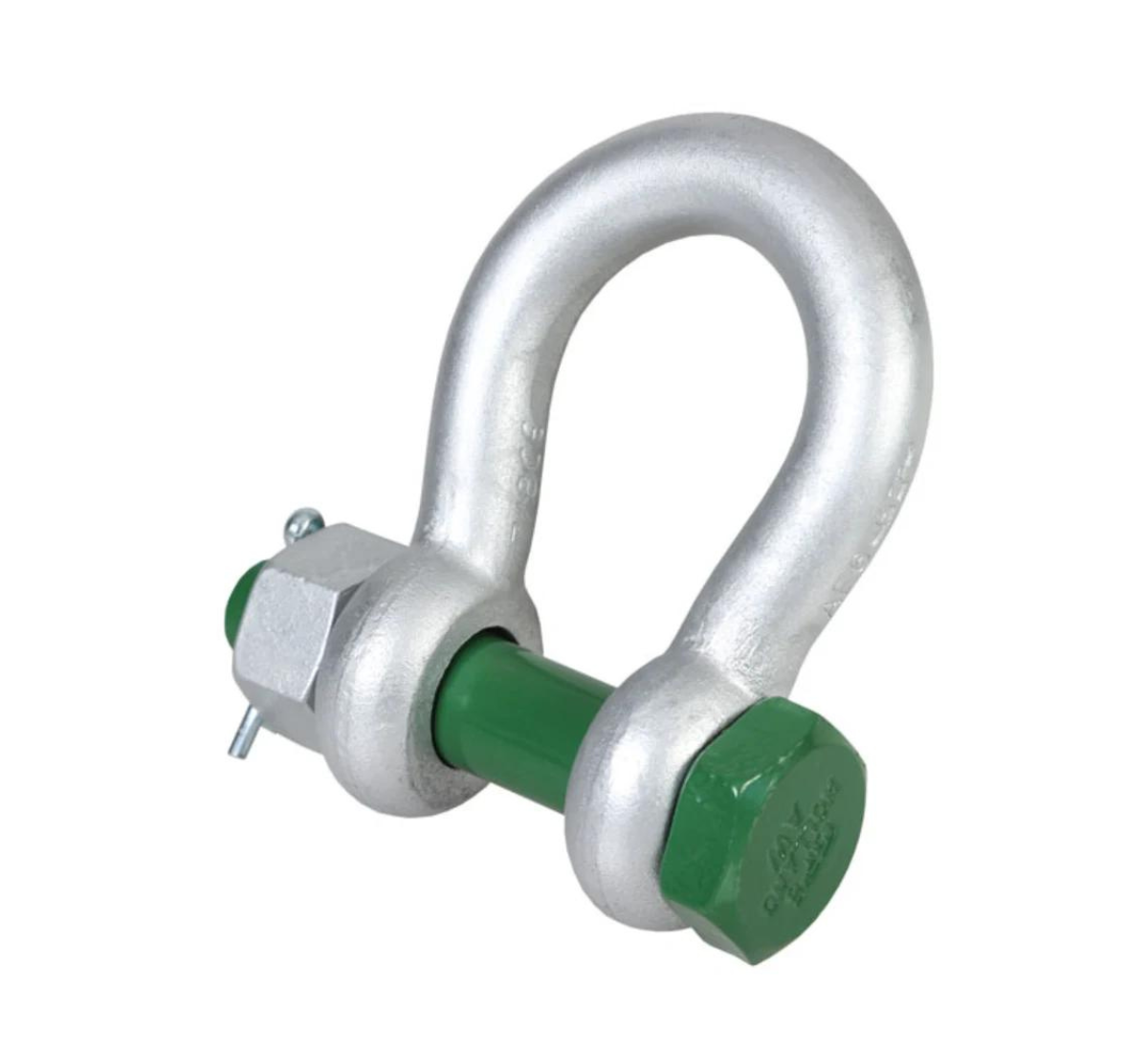

Green Pin Bow Safety Pin Shackles are premium quality and of Dutch (European) quality- you can be sure you are buying the best when it comes to Lifting Shackles.
Featuring a wide bow and galvanised finish, each Green Pin Safety Pin Bow Shackle can be instantly recognised afar with its vivid green screw pin.
Material: Bow & Pin high tensity steel
Safety Factor: MBL equals 6 x WLL
Standard: EN 13889 and meets the performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
Finish: Hot dipped galvanised
Temperature Range: -20C to +200C
DNV Type Approved
Supplied with proof load certificate.

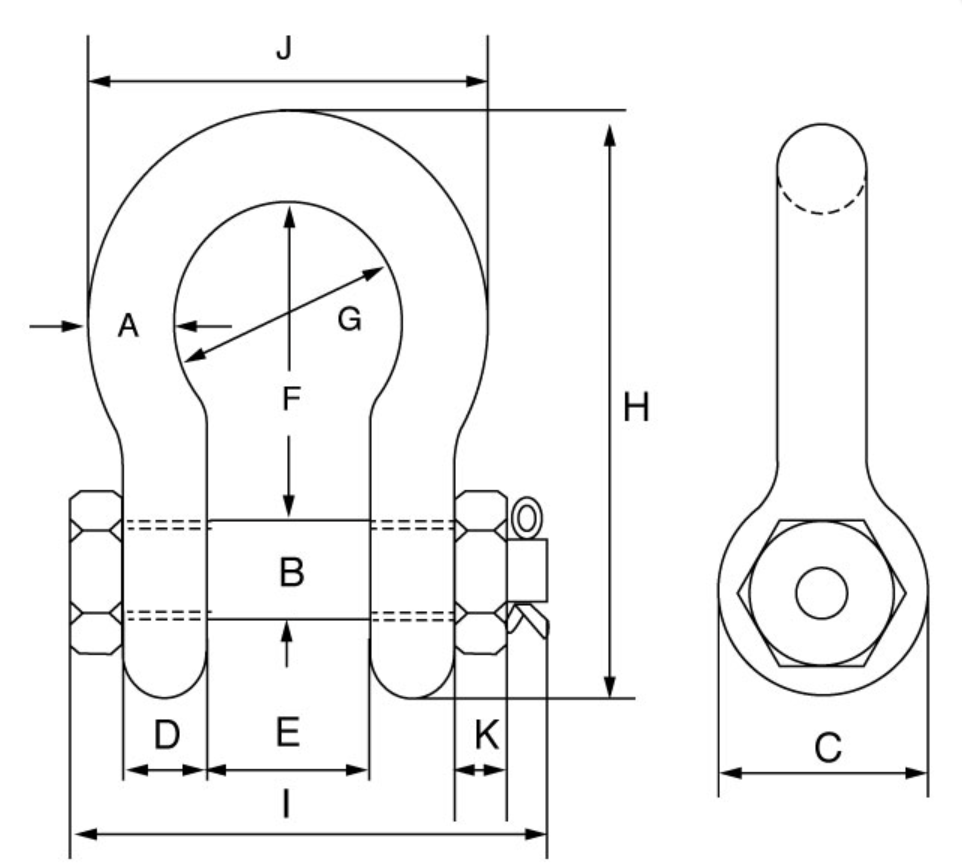

| Green Pin Article Number | Code |
WLL (Tonnes) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
Weight (Kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPGHMB06 | A0302 | 0.50 | 7 | 8 | 17 | 7 | 12 | 29 | 20 | 54 | 43 | 37 | 4 | 0.06 |
| GPGHMB08 | A0303 | 0.75 | 9 | 10 | 21 | 9 | 13.5 | 32 | 22 | 61 | 51 | 42 | 5 | 0.11 |
| GPGHMB10 | A0304 | 1.00 | 10 | 11 | 23 | 10 | 17 | 36.5 | 26 | 71 | 61 | 49 | 8 | 0.16 |
| GPGHMB11 | A0305 | 1.50 | 11 | 13 | 26 | 11 | 19 | 43 | 29 | 80 | 68 | 54 | 11 | 0.22 |
| GPGHMB13 | A0306 | 2.00 | 13.5 | 16 | 34 | 13.5 | 22 | 51 | 32 | 91 | 83 | 63 | 13 | 0.42 |
| GPGHMB16 | A0307 | 3.25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 114 | 99 | 79 | 17 | 0.74 |
| GPGHMB19 | A0308 | 4.75 | 19 | 22 | 47 | 19 | 31 | 76 | 51 | 136 | 115 | 94 | 20 | 1.18 |
| GPGHMB19 | A0309 | 6.50 | 22 | 25 | 53 | 22 | 36 | 83 | 58 | 157 | 131 | 107 | 23 | 1.77 |
| GPGHMB25 | A0310 | 8.50 | 25 | 28 | 60 | 25 | 43 | 95 | 68 | 176 | 151 | 124 | 25 | 2.58 |
| GPGHMB28 | A0311 | 9.50 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 197 | 167 | 137 | 28 | 3.66 |
| GPGHMB32 | A0312 | 12.00 | 32 | 35 | 74 | 32 | 51 | 115 | 83 | 218 | 179 | 154 | 31 | 4.91 |
| GPGHMB35 | A0313 | 13.50 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 240 | 198 | 170 | 34 | 6.54 |
| GPGHMB38 | A0314 | 17.00 | 38 | 42 | 89 | 38 | 60 | 146 | 99 | 262 | 202 | 183 | 19 | 8.19 |
| GPGHMB45 | A0315 | 25.00 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 314 | 244 | 226 | 24 | 14.22 |
| GPGHMB50 | A0316 | 35.00 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 358 | 270 | 250 | 27 | 19.85 |
| GPGHMB57 | A0330 | 42.50 | 57 | 65 | 134 | 57 | 95 | 222 | 160 | 414 | 302 | 287 | 30 | 28.33 |
| GPGHMB65 | A0317 | 55.00 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 463 | 330 | 329 | 33 | 39.59 |
| GPGHMB75 | A0318 | 85.00 | 75 | 83 | 163 | 75 | 127 | 329 | 190 | 556 | 376 | 355 | 40 | 62.00 |
