SKU: PEW001513

Pewag PLAW Prolift Alpha Metric Thread

From: £51.08
  • Up to 20,000kg capacity
  • Up to M48 Bolt size
  • Metric Thread
Final Configuration Price:
From: £51.08
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

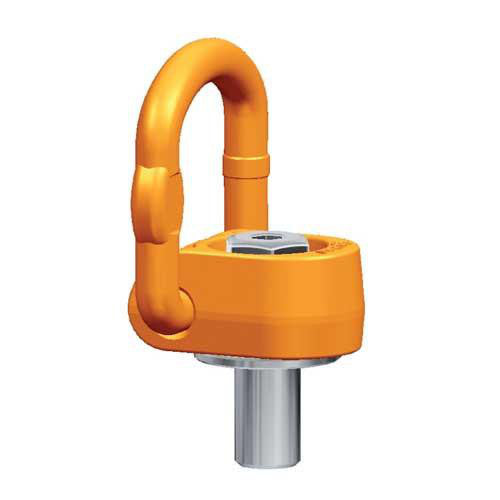

The Pewag PLAW Prolift Alpha Metric Thread is a 360˚ rotatable lifting point. The load ring can be loaded to its full capacity throughout the 130˚ load range and can be positioned at the required angle of load via the patented interchangeable spring clip. The 10.9-grade special hex head bolt is interchangeable and is secured within the body forging. The bolt is 100% crack detection tested and has a VI-Free protective coating applied to the lifting point in order to protect against corrosion. The head of the bolt is marked with the lifting point working load limit and thread size on all lifting points.



PLAW lifting points have a safety factor of 4:1 against breakage in all directions within the 130˚ load range. Each lifting point is marked during manufacture with an individual serial number which allows full product traceability. The PLAW range is available with either a Metric or UNC thread and can be supplied with custom thread lengths on request. Each lifting point is supplied packed with a user manual which includes load tables for the various applications of use.



** Please contact one of our sale team for Custom thread sizes**

  • Up to 20,000kg capacity
  • Up to M48 Bolt size
  • Metric Thread

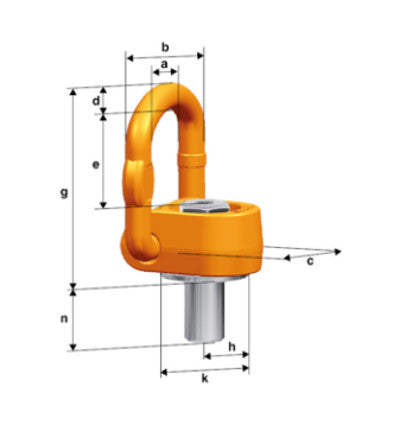

SKU Thread Size (mm) Load Capacity (kg) a (mm) b (mm) c (mm) d (mm) e (mm) g (mm) h (mm) k (mm) n (mm) n max (mm) Weight (kg)
PLAW 0.3 M8  300 45 67 40 11 41 95 23 55 20 150 0.57
PLAW 0.63 M10 630 45 67 40 11 41 95 23 55 20 250 0.58
PLAW 1 M12 1000 45 67 40 11 41 95 23 55 33 170 0.60
PLAW 1.5 M16 1500 45 67 40 11 41 95 23 55 33 260 0.62
PLAW 2.5 M20  2500 54 81 50 13 55 112 33 67 33 335 1.10
PLAW 4  M24 4000 75 115 67 20 68 143 45 100 36 364 3.00
PLAW 6 M30 6000 75 115 67 20 68 143 45 100 49 364 3.10
PLAW 7  M36 7000 75 115 67 20 65 143 45 100 55 - 3.30
PLAW 8  M36 8000 93 147 85 27 85 188 52 120 55 365 6.10
PLAW 10 M42 10,000 93 147 85 27 85 188 52 120 65 365 6.40
PLAW 15 M42 15,000 115 181 105 33 108 246 63 150 63 340 12.00
PLAW 20 M48 20,000 115 181 105 33 108 246 63 150 73 340 12.30
