In stock
SKU: STA000689

Stainless Steel Bow Shackles E Type With Safety Pin 316 High Corrosion

From: £13.85
  • Up to 5000kg capacity
  • Available with a Nylok Nut
  • Stainless Steel EN1008 1.4404 (Marine Grade 316L)
  • Safety Factor 6:1
Final Configuration Price:
From: £13.85
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

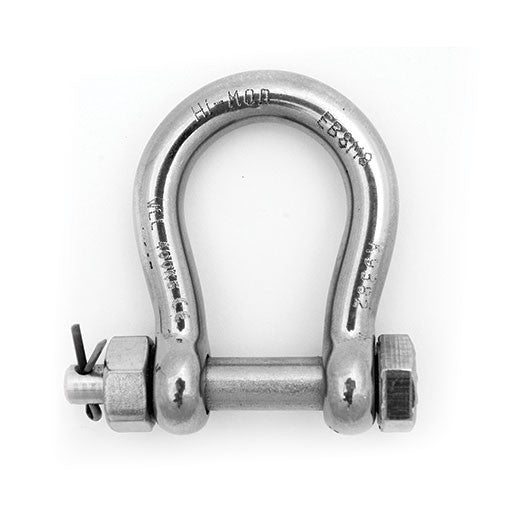

These Peterson Bow Shackles have an E Type Safety Pin and are manufactured from Stainless Steel that is EN1008 1.4404 (Marine Grade 316) and is manufactured using the latest technology in electrical upset forging. The Bow Shackles are excellent for lifting applications where a high level of corrosion resistance is required and feature a safety rating of 6:1. The special design of the bolt ensures the nut is positioned correctly allowing sufficient room for the cotter pin.



The Bow Shackles are available in two different pin types:-

  • E Type Safety Pin with Standard Nut (E Type)
  • Nylok Nut (E Type-NY)



Every Shackle is proof tested to 2x its certified working load limit at Peterson's manufacturing facility in the north east of England. All Shackles are manufactured in accordance to machinery directive 2006/42EC. These shackles are available with inspection certificates BS EN 10204 3.1 on request.

  • Up to 5000kg capacity
  • Available with a Nylok Nut
  • Stainless Steel EN1008 1.4404 (Marine Grade 316L)
  • Safety Factor 6:1

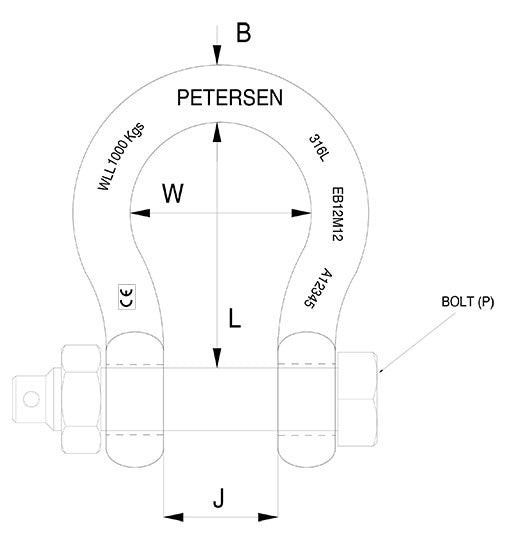

E Type SKU With Nylok Nut SKU Working Load Limit (kg) Bolt Size B (mm) J (mm) W (mm) L (mm) Weight (kg)
EB6M6 EB6M6-NY 280 M6 6 13 19 28 0.05
EB8M8 EB8M8-NY 400 M8 8 16 25 35 0.08
EB10M10 EB10M10-NY 600 M10 9.5 19 28 38 0.15
EB11M12 EB11M12-NY 800 M12 11 22 33 46 0.22
EB12M12 EB12M12-NY 1000 M12 12.7 26 38 52 0.35
EB14M16 EB14M16-NY 1500 M16 14.3 29 43 60 0.63
EB16M20 EB16M20-NY 2500 M20 16 32 50 68 0.80
EB19M22 EB19M22-NY 3000 M22 19 38 58 76 1.25
EB22M24 EB22M24-NY 4000 M24 22 44 66 88 1.82
EB25M27 EB25M27-NY 4500 M27 25.4 50 76 100 2.70
