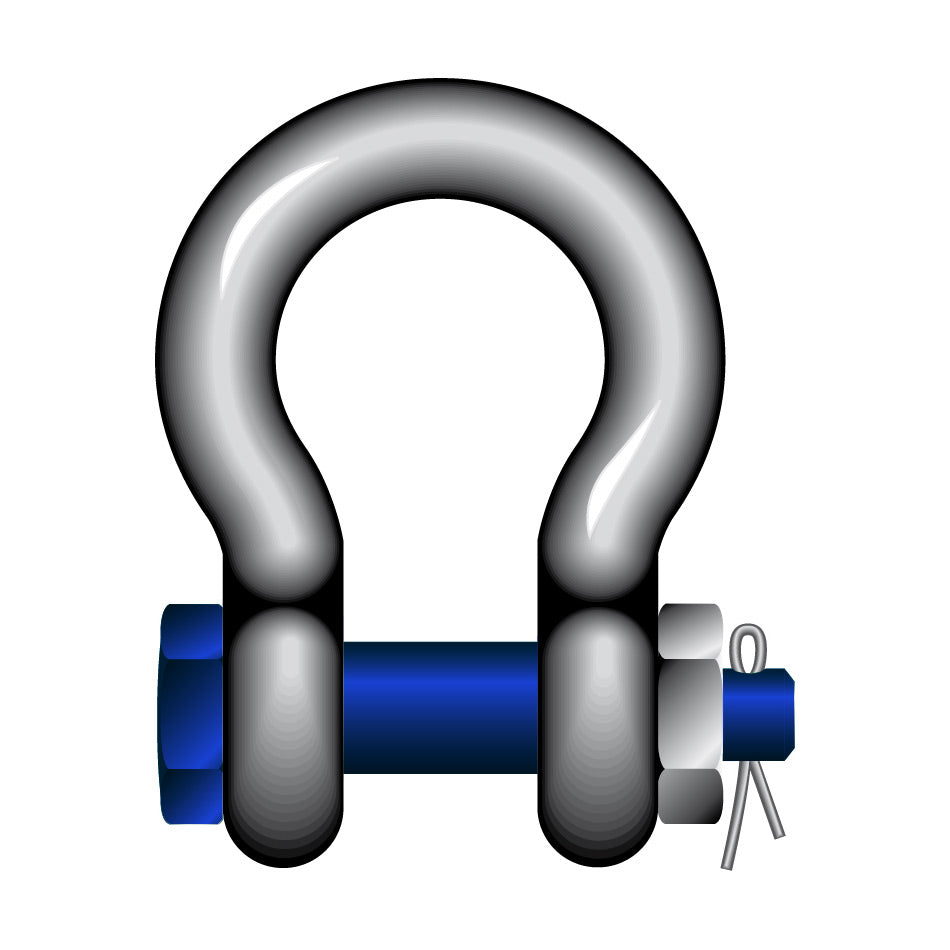

Our Standard Bow Shackle 'Blue Pin' with screw pin is a cost effective load rated lifting shackle and rigging attachment. Meeting the requirements of EN13889 0.5Tonne up to 25 Tonne and US Fed Spec RR C 271 mean that the standard blue pin bow shackle is suitable for most industrial and entertainment applications.
Quenched and tempered for strength with a galvanised finish for protection against harsh environments and for the longevity of the shackle. A high safety factor of 6:1 while always shipped with ED declaration of conformity ensures a quality product fit for purpose.
|

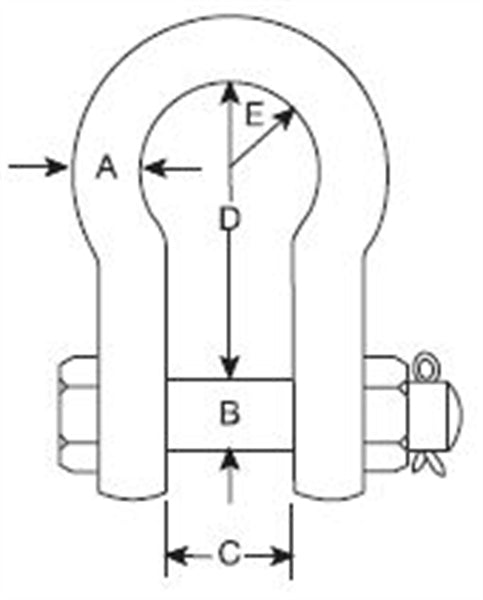

Code |
W.L.L |
A |
B |
C |
D |
2E |
Weight |
|
|
(tonnes) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kgs/each) |
|
A1302 |
0.50 |
6.4 |
8.0 |
12.0 |
28.6 |
20 |
0.07 |
|
A1303 |
0.75 |
8.0 |
10.0 |
13.0 |
31.0 |
21 |
0.13 |
|
A1304 |
1.00 |
9.5 |
12.0 |
17.0 |
36.5 |
26 |
0.17 |
|
A1305 |
1.50 |
11.0 |
12.0 |
18.0 |
42.5 |
29 |
0.25 |
|
A1306 |
2.00 |
12.7 |
16.0 |
20.6 |
47.3 |
32 |
0.44 |
|
A1307 |
3.25 |
16.0 |
19.8 |
27.0 |
60.5 |
43 |
0.79 |
|
A1308 |
4.75 |
19.0 |
22.0 |
32.0 |
71.5 |
51 |
1.26 |
|
A1309 |
6.50 |
22.0 |
27.0 |
36.6 |
84.0 |
58 |
1.88 |
|
A1310 |
8.50 |
25.0 |
30.0 |
43.0 |
96.0 |
68 |
2.78 |
|
A1311 |
9.50 |
28.5 |
33.0 |
46.0 |
108.0 |
75 |
3.87 |
|
A1312 |
12.00 |
31.8 |
36.0 |
51.6 |
119.0 |
83 |
5.26 |
|
A1313 |
13.50 |
34.9 |
39.0 |
57.0 |
133.5 |
92 |
6.94 |
|
A1314 |
17.00 |
38.0 |
42.0 |
60.0 |
147.0 |
99 |
8.79 |
|
A1315 |
25.00 |
44.0 |
52.0 |
73.0 |
178.0 |
126 |
14.99 |
|
A1316 |
35.00 |
50.0 |
56.0 |
82.0 |
197.0 |
138 |
20.65 |
|
A1317 |
55.00 |
63.5 |
68.0 |
105.0 |
267.0 |
180 |
41.05 |
|
A1318 |
85.00 |
75.0 |
85.0 |
127.0 |
320.0 |
190 |
62.00 |
|
A1319 |
120.00 |
88.0 |
95.0 |
133.0 |
372.0 |
240 |
106.00 |
