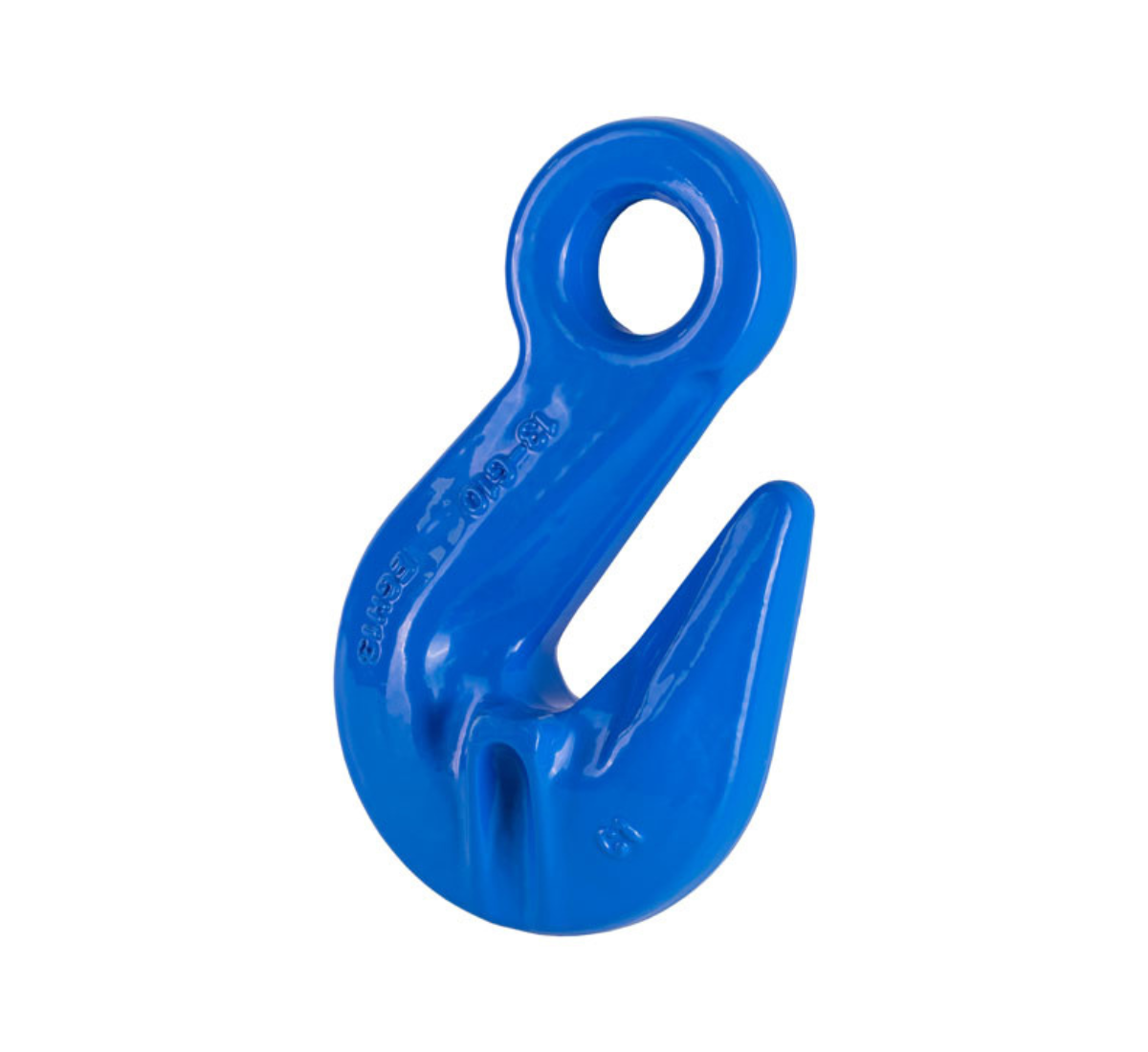

Looking for a secure hook connection for you chain sling assembly? George Taylor's Cobra Plus Grade 10 Eye Grab Hook offers everything your looking for in a quality sling end fitting.
Engineered from quality Grade 10 quenched and tempered alloy steel, these eye grab hooks are available to suit chain diameters from 6mm - 16mm (1.4t - 10t) and can operate safely and efficiently in temperatures from -20°C up to +200°C.
Marked with Cobra+, material grade, size, product ID mark and traceability code.
Datasheets

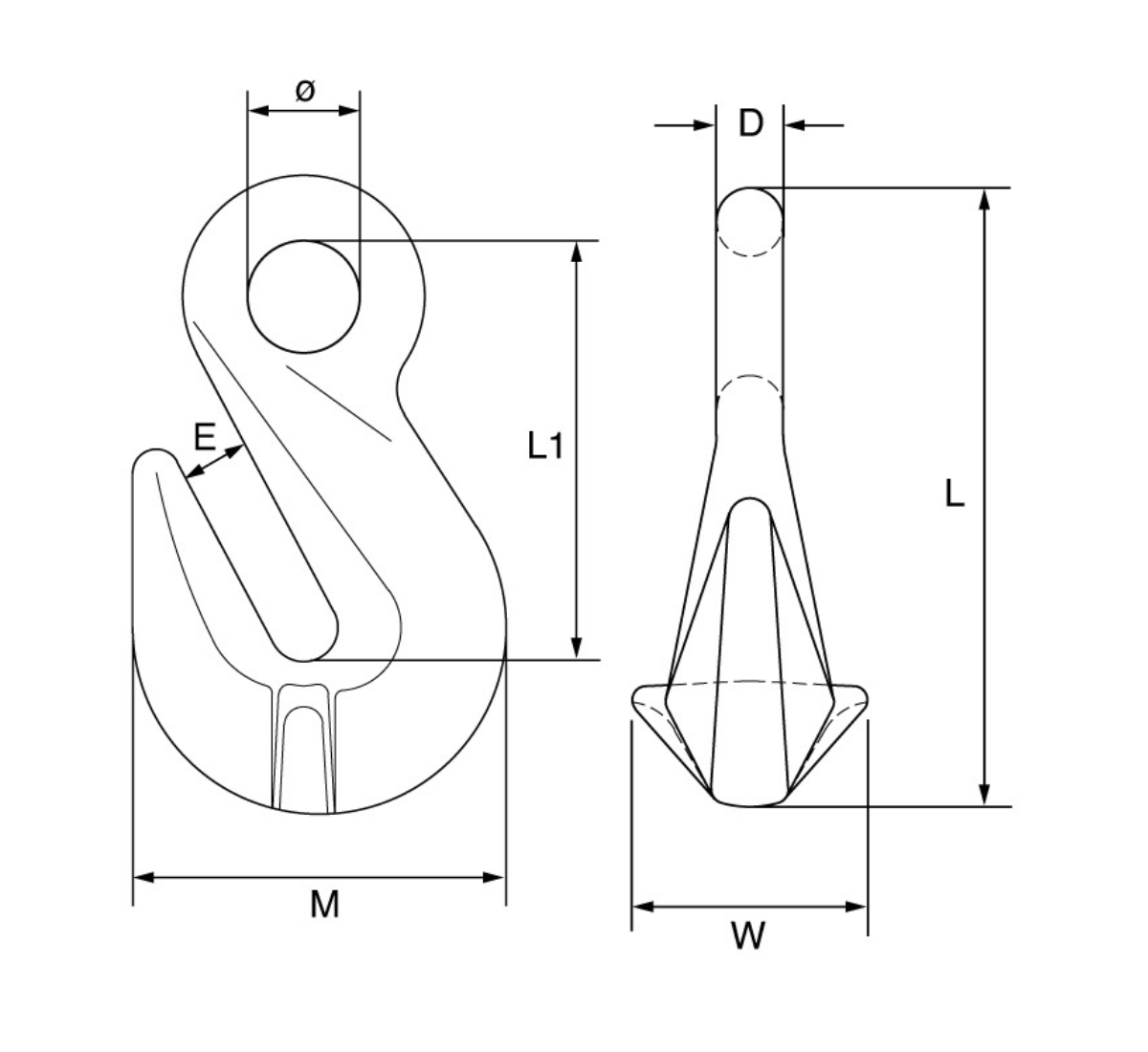

DIMENSIONS
|
SKU |
Chain Dia. (mm) |
E (mm) |
Ø (mm) |
D (mm) |
M (mm) |
W (mm) |
L (mm) |
L1 (mm) |
|
G100EGH6 |
6 |
8 |
13.5 |
8 |
46.5 |
25.5 |
73 |
46 |
|
G100EGH8 |
8 |
11 |
17.5 |
10.5 |
53 |
33.5 |
93 |
61 |
|
G100EGH10 |
10 |
13.5 |
22 |
14 |
74 |
42 |
129 |
85 |
|
G100EGH13 |
13 |
17 |
27 |
18.5 |
96 |
53.5 |
166 |
104 |
|
G100EGH16 |
16 |
19 |
36 |
22 |
116 |
74 |
186 |
119 |
TECHNICAL DATA
|
Chain Dia. (mm) |
W.L.L (t) |
M.P.F (t) |
M.B.F (t) |
Weight (kgs) |
|
6 |
1.4 |
3.5 |
5.6 |
0.15 |
|
8 |
2.5 |
6.25 |
10 |
0.3 |
|
10 |
4 |
10 |
16 |
0.79 |
|
13 |
6.7 |
16.75 |
26.8 |
1.67 |
|
16 |
10 |
25 |
40 |
2.74 |
