In stock
SKU: COB000146

Cobra Plus Grade 10 Clevis Shortening Clutch with Pin

From: £12.67
Final Configuration Price:
From: £12.67
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

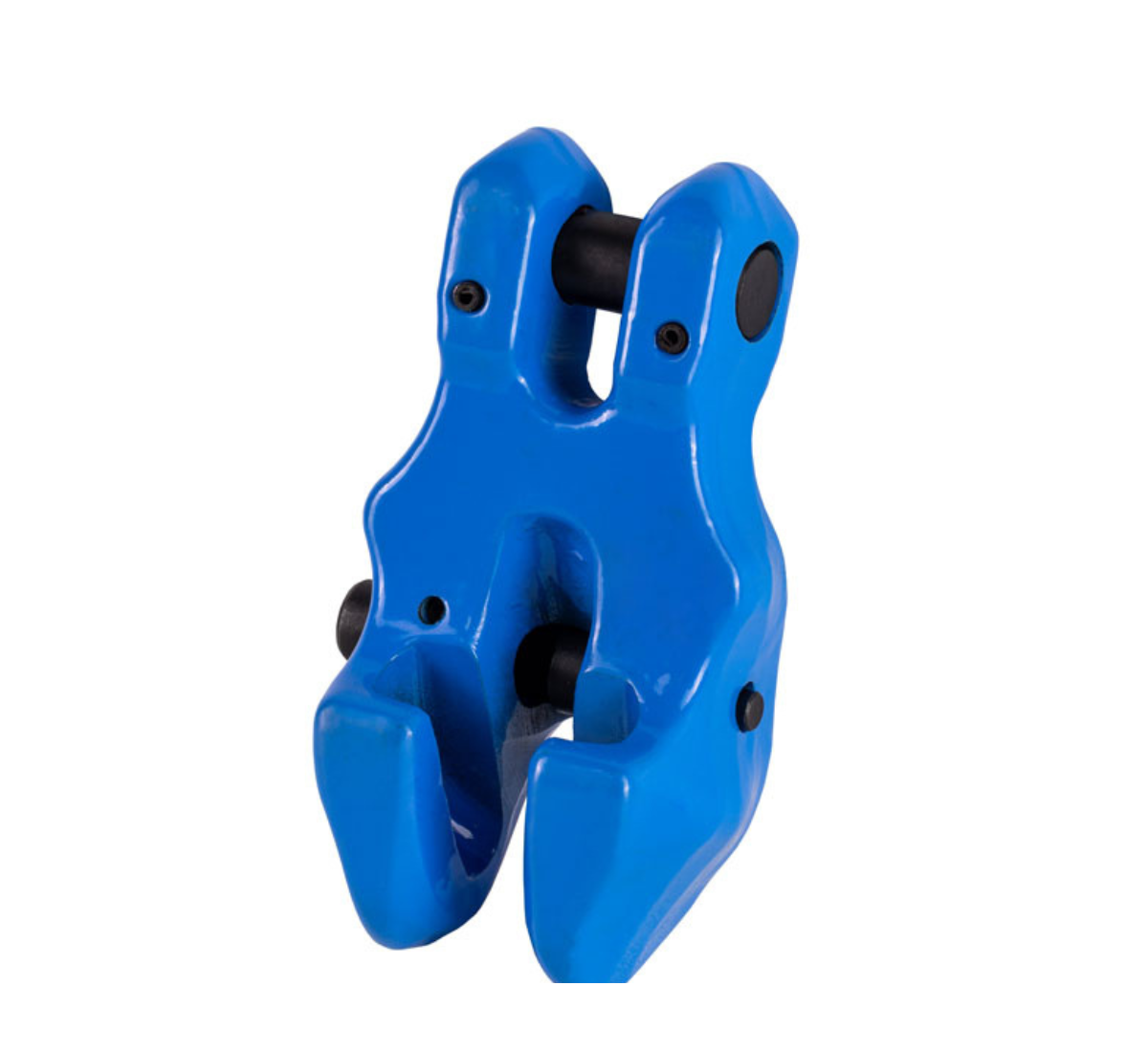

Designed to shorten lengths of chain with ease and security, George Taylor's Cobra Plus Clevis Shortening Clutch with Pin is available to suit chain diameters from 8mm to 13mm.

Manufactured from quality Grade 10 alloy steel (quenched & tempered), these chain shorteners meet the WLL preferred requirements of BS EN 1677-1 +25% of loads, and boast and MBL of 4 times the stated WLL.

For traceability purposes, each shortening clutch is marked with Cobra+, material grade, size, product ID mark, and traceability code.

  • Chain Dia. 8mm / 10mm / 13mm
  • Grade 10 alloy steel, quenched and tempered.
  • Blue painted finish.
  • Meets W.L.L. perf. req. of BS EN 1677-1 +25% of loads.
  • Temp. Range -20°C up to +200°C.
  • M.B.L. equals 4 x W.L.L.
  • Marked with Cobra+, material grade, size, product ID mark and traceability code.

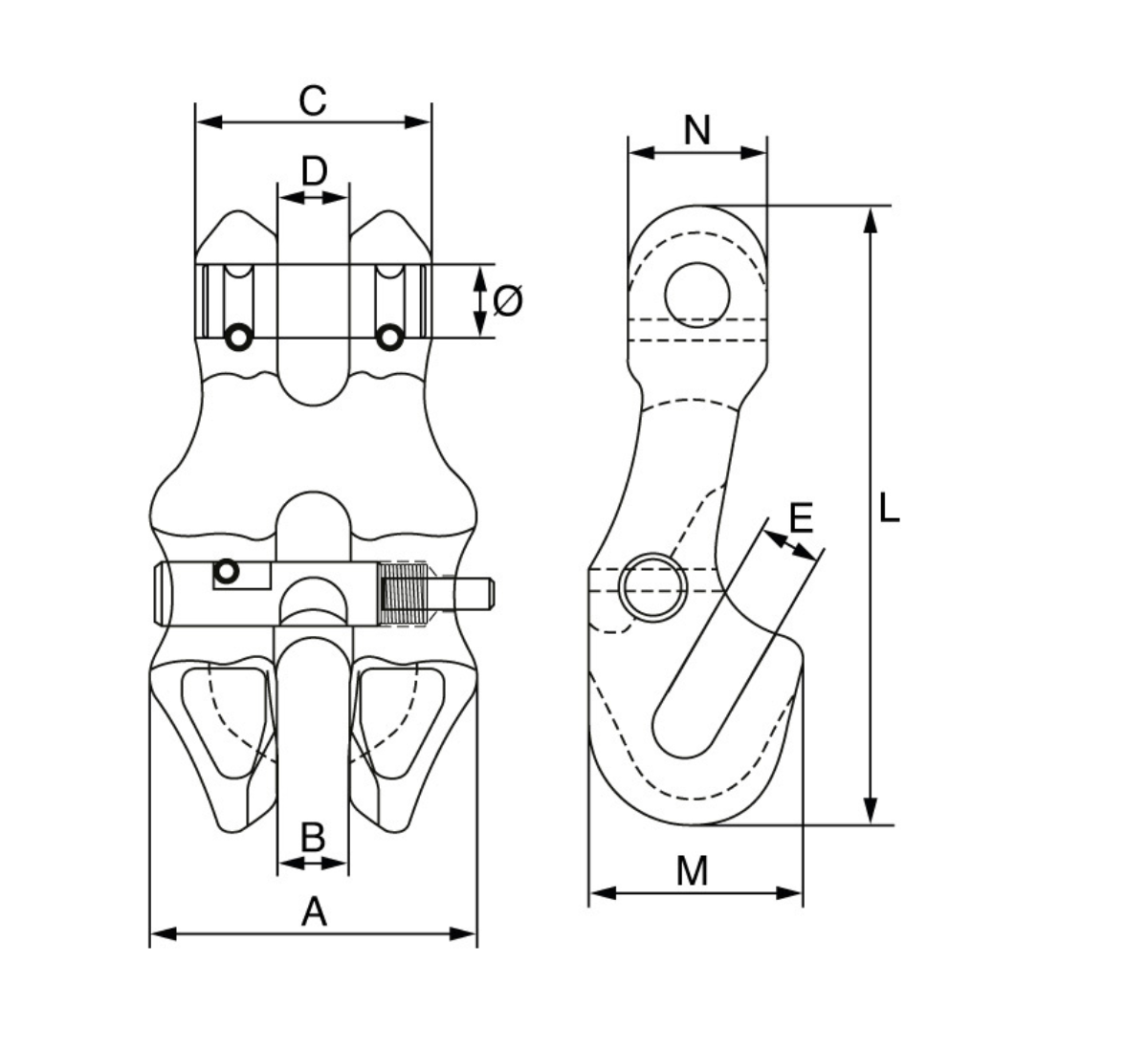

DIMENSIONS



SKU

Chain Dia.

(mm)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

M

(mm)

N

(mm)

Ø

(mm)

L

(mm)

G100CSCP8

8

50

9.5

33

9.5

9.2

36

23

9

92

G100CSCP10

10

60

11.7

43.5

11.7

12

45.4

26

13

115

G100CSCP13

13

79

15

55

15

15.5

54

34

16

149

TECHNICAL DATA

Chain Dia.

(mm)

W.L.L

(t)

M.P.F

(t)

M.B.F

(t)

Weight

(kgs)

8

2.5

6.25

10

0.41

10

4

10

16

0.8

13

6.7

16.75

26.8

1.67
