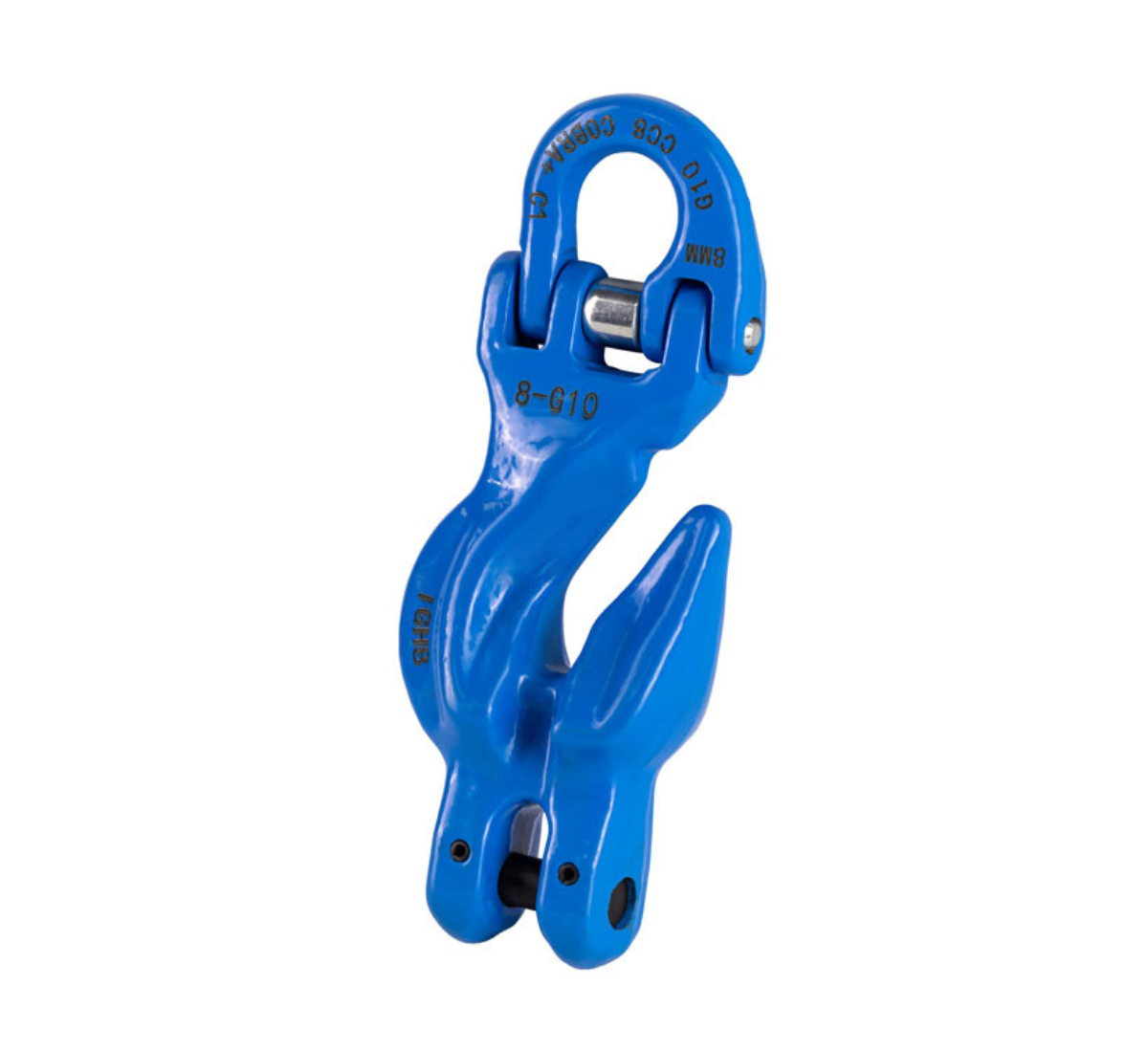

Engineered from quenched and tempered Grade 10 alloy steel, George Taylor's Cobra Plus In-Line Grab Hook end fitting is available in diameters from 6mm up to 16mm (1.4t - 10t).
Capable of efficiently operating in temperatures from -20°C up to +200°C, these in-line end fittings meet the working load preferred requirements of BS EN 1677-1 +25% of loads, and have an M.B.L equals to 4 times the stated W.L.L.
For complete traceability and total peace of mind, each unit is marked with Cobra+, material grade, size, product ID mark, and traceability code.

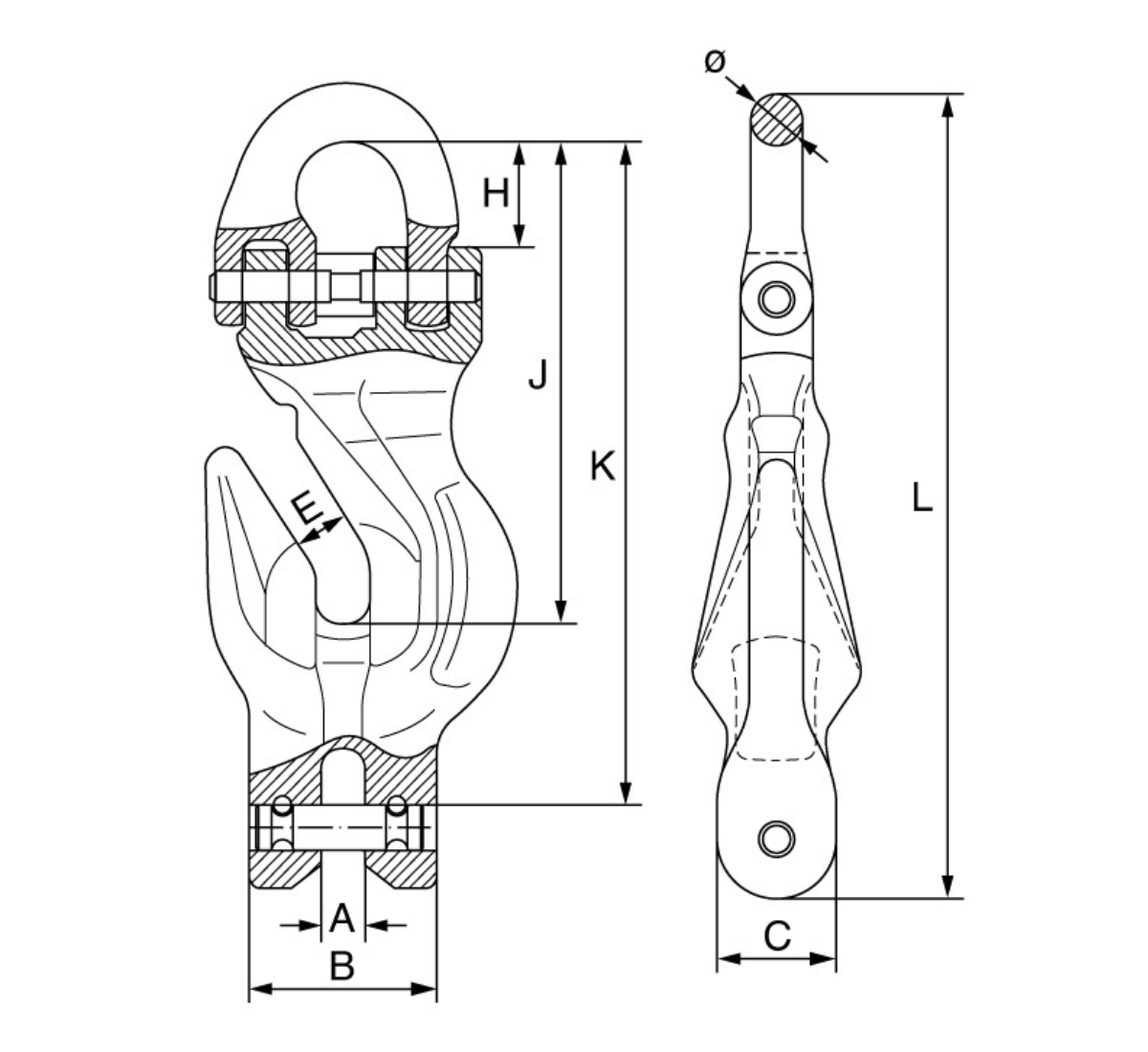

DIMENSIONS
|
Code |
Chain Dia. (mm) |
A (mm) |
B (mm) |
C (mm) |
E (mm) |
H (mm) |
L (mm) |
K (mm) |
J (mm) |
Ø (mm) |
|
G100IGH6 |
6 |
8 |
32 |
18 |
8.3 |
16 |
128.7 |
80 |
104.7 |
7 |
|
G100IGH8 |
8 |
9.5 |
37 |
24 |
10.5 |
25 |
165 |
136 |
100 |
10 |
|
G100IGH10 |
10 |
12.5 |
48 |
29.5 |
13 |
28 |
203 |
167 |
123 |
12.6 |
|
G100IGH13 |
13 |
16 |
59 |
37 |
15.5 |
37 |
269 |
223 |
163 |
16.5 |
|
G100IGH16 |
16 |
18.5 |
70 |
46 |
18.5 |
40 |
328 |
271 |
194 |
20 |
TECHNICAL DATA
|
Chain Dia. (mm) |
W.L.L (t) |
M.P.F (t) |
M.B.F (t) |
Weight (kgs) |
|
6 |
1.4 |
3.5 |
5.6 |
0.36 |
|
8 |
2.5 |
6.25 |
10 |
0.79 |
|
10 |
4 |
10 |
16 |
1.5 |
|
13 |
6.7 |
16.75 |
26.8 |
3.4 |
|
16 |
10 |
25 |
40 |
5.7 |
