In stock
SKU: GRE000204

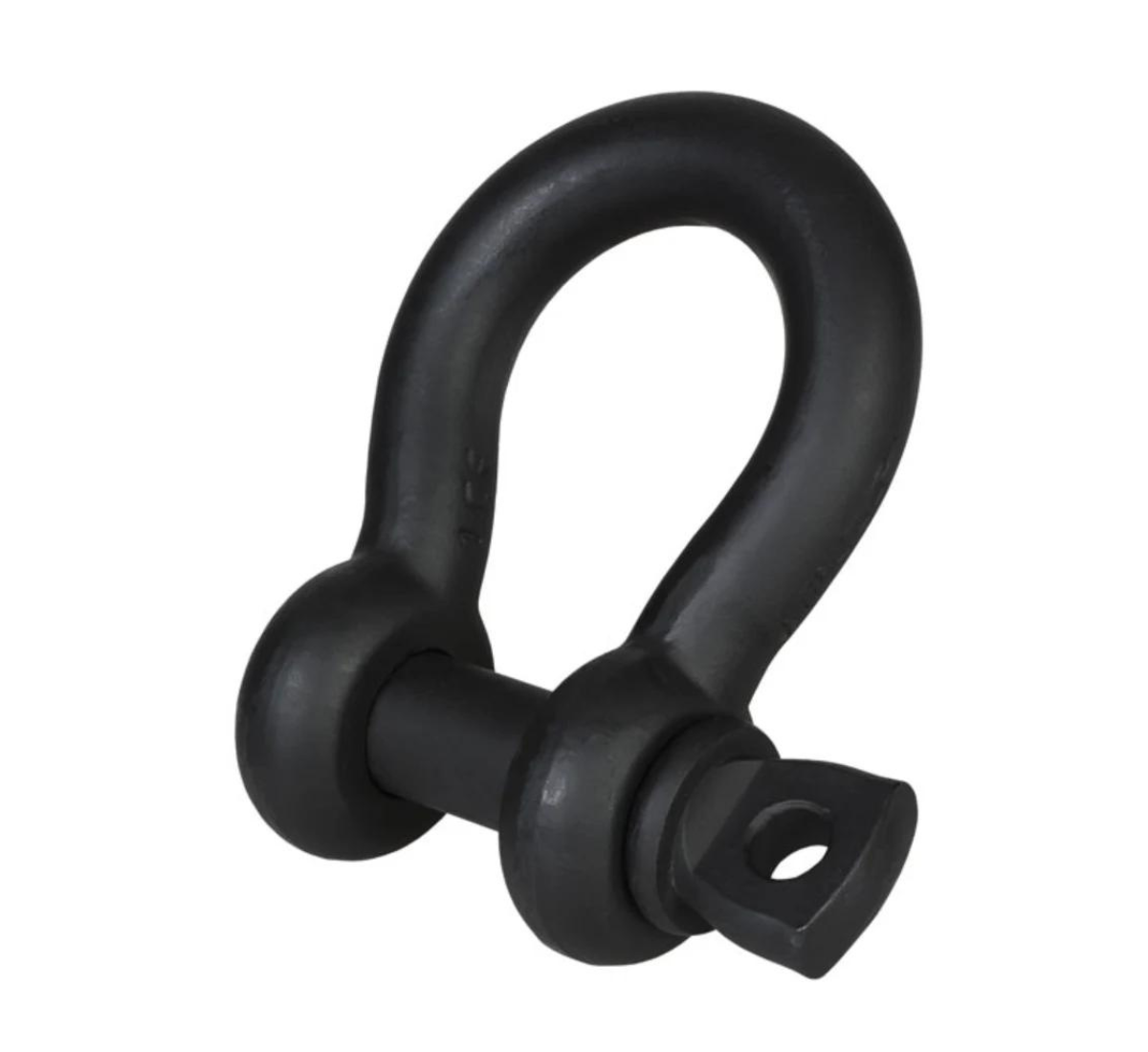

Green Pin Theatre Bow Shackles with Screw Collar Pin

From: £3.38
  • Model: G-4161T
  • Grade 6 high tensile steel, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A, from 2t and upward these shackles comply with ASME B30.26.
  • Painted black matt RAL 7021.
  • Temperature range -40 ° C up to +200 ° C.
  • Supplied with proof load certificate, material certificate available on request
Final Configuration Price:
From: £3.38
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

All of the performance, none of the reflections. The Green Pin Standard Bow Shackle with Screw Collar has been specially developed for use in theatres and other entertainment venues. Due to its black matte finish, the Theatre Shackle shows no sheen or light reflections and therefore does not distract from the performance on stage. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

  • Model: G-4161T
  • Grade 6 high tensile steel, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A, from 2t and upward these shackles comply with ASME B30.26.
  • Painted black matt RAL 7021.
  • Temperature range -40 ° C up to +200 ° C.
  • Supplied with proof load certificate, material certificate available on request

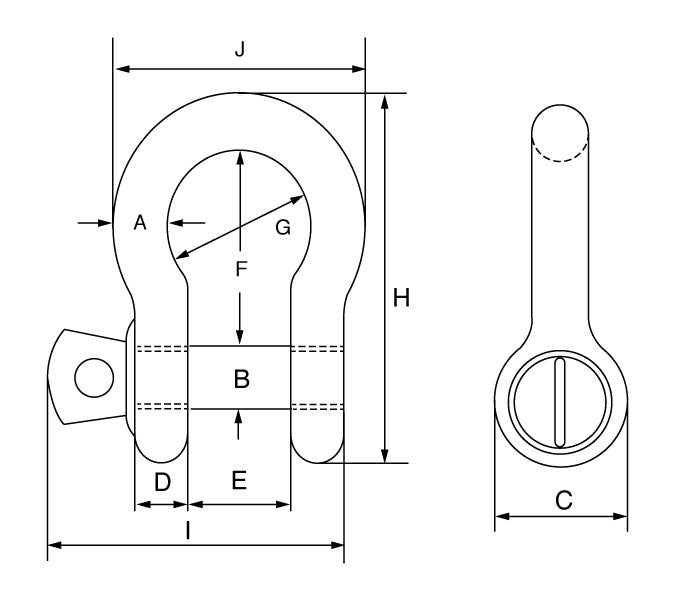

Product Code W.L.L A B C D E F G H I J Weight
  t mm mm mm mm mm mm mm mm mm mm kgs / ea
GPTHB.33 0.33 5 6 12 5 9.5 22 16 36 29.5 26 0.02
GPTHB.5 0.5 7 8 16.5 7 12 29 20 48.5 38 34 0.05
GPTHB.75 0.75 9 10 20 9 13.5 32 22 56 46.5 40 0.1
GPTHB1 1 10 11 22.5 10 17 36.5 26 63.5 54 46 0.14
GPTHB1.5 1.5 11 13 26.5 11 19 43 29 74 59.5 51 0.19
GPTHB2 2 13.5 16 34 13 22 51 32 89 73 58 0.36
GPTHB3.25 3.25 16 19 40 16 27 64 43 110 89 75 0.63
GPTHB4.75 4.75 19 22 46 19 31 76 51 129 103 89 1.01
GPTHB6.5 6.5 22 25 52 22 36 83 58 144 119 102 1.5
GPTHB8 8.5 25 28 59 25 43 93 68 164 137 118 2.21
