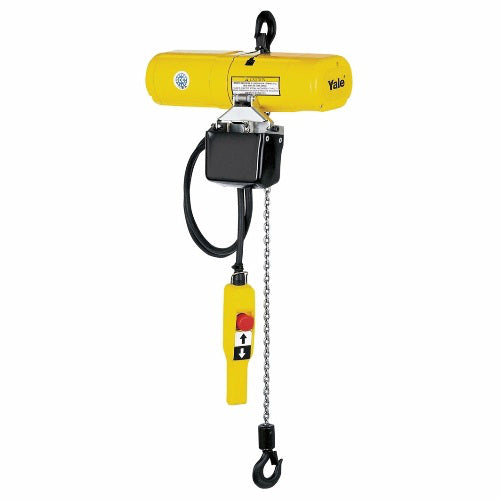

Yale CPS Electric Chain Hoists

£1,488.24
  • 1 Year Warranty
  • 125kg or 250kg Capacity
  • 110v, 230v or 400v
  • 2-10 mpm Lifting Speed
  • 40% Duty
Final Configuration Price:
£1,488.24
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The Yale CPS is one of the smallest Electric Chain Hoists in the world, with optional hoisting speeds (selected at the time of purchase) this hoist can be combined with any Yale Push or Geared Travel Trolley to give cost-effective horizontal travel.

Weighing just 12kg* with a 3m height of lift, this hoist can easily be lifted with one hand.

*125kg model

*12kg is the unit weight complete with 3m Height of lift, adding more height of lift will increase the overall weight.

MPM= meters per Minute



For higher HOL options please give one of the sales team a call on 01384567430

  • Easy Installation & Maintenance
  • IP54 as Standard
  • 48v Control Voltage
  • Overload protection device as standard
  • 10-Pocket oblique-lay lift wheel for smooth chain operation, constant chain speed and reduced chain wear.
  • Optional Impact Resistant Chain Container
  • Gear Train lifetime lubricated with non-oxidising grease
  • Alloy Load Chain for smooth operation and maximum chain life
  • Thermally protected hoist duty motor
  • Dual braking system- D.C. plus regenerative
  • Rugged cast aluminum alloy hoist frame
  • 5:1 safety factor
  • small, compact design for commercial and industrial applications
  • Rigid latch-style upper hook prevents tangling of the power cord
  • Hardened forged steel latch-style lower hook rotates 360 degrees
  • Totally enclosed non-ventilated hoist frame protects the motor from environmental contamination
  • True vertical lift
  • Precision bearings used in hoist
  • Designed and manufactured by Yale

Model Capacity Supply Lifting Speed ED Duty Weight
CPS 110/1-4 125kg 110v 1ph 50hz 4 mpm 40% 12kg*
CPS 230/1-4 125kg 230v 1ph 50hz 4 mpm 40% 12kg*
CPS 400/1-4 125kg 400v 3ph 50hz 4 mpm 40% 12kg*
CPS 400/1-10 125kg 400v 3ph 50hz 10 mpm 40% 12kg*
CPS 110/2-2 250kg 110v 1ph 50hz 2 mpm 40% 14kg*
CPS 230/2-2 250kg 230v 1ph 50hz 2 mpm 40% 14kg*
CPS 400/2-2 250kg 400v 3ph 50hz 2 mpm 40% 14kg*
CPS 400/2-5 250kg 400v 3ph 50hz 5 mpm 40% 14kg*

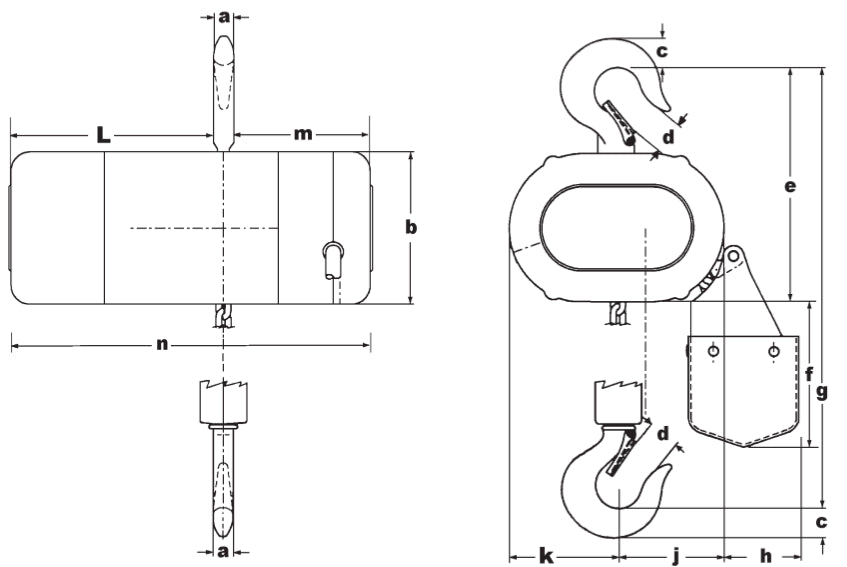

Rated
Capacity
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
j
mm
k
mm
l
mm
m
mm
n
mm
125kg 14 103 21 22 159 98 276 53 75 76 225 150 375
250kg 14 103 21 22 159 98 304 53 60 89 225 150 375
