In stock
SKU: YAL004364

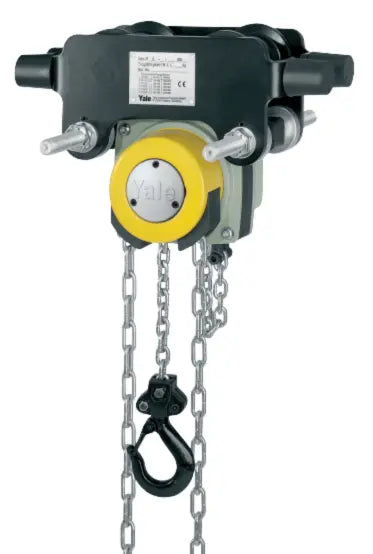

Yalelift 360 Integral Push Trolley Chain Hoist

From: £396.07
  • 500 - 5000kg lifting capacity
  • Fitted with integral low headroom push travel trolley
  • Featuring Yale's unique Yalelift 360 chain hoist
  • Anti drop and tilt devices as standard
  • Optional rubber buffers, chain container, overload device, beam locking device and corrosion resistant model available on request
Final Configuration Price:
From: £396.07
Estimated time to dispatch
Estimated time to dispatch: 1 day
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

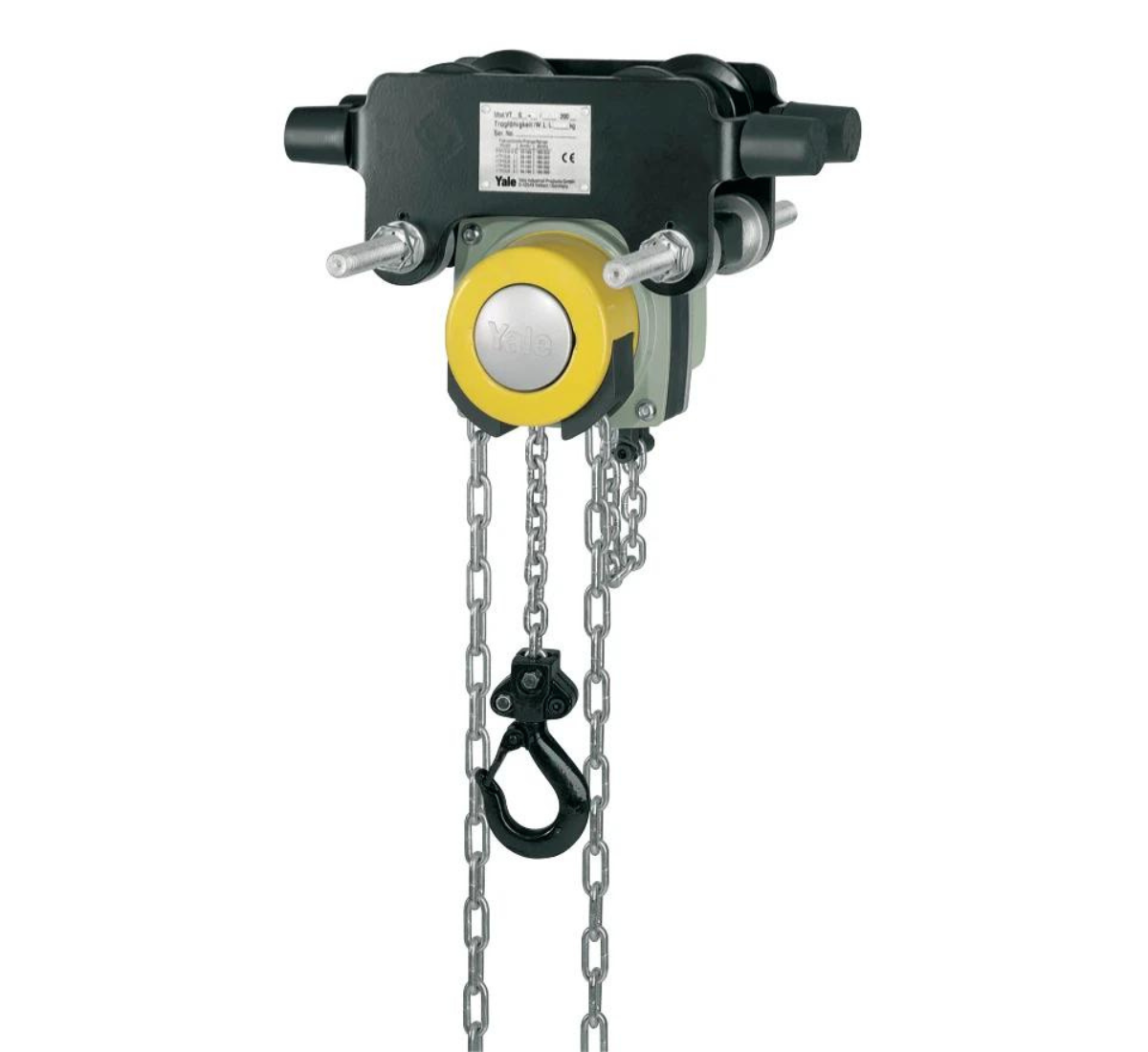

The Yalelift 360 Integral Push Trolley Chain Hoist is ideal for low headroom applications up to 5000kg. All the units of this series up to 3000kg capacity are provided with a single fall of chain and the minimum headroom had been further reduced, this makes the hoist ideal for use in applications where there is low ceilings or low headroom. The proven and almost stepless adjustment system allows quick and easy assembly of the trolley. Trolleys up to 5000kg are offered in two different beam types. Type A for a flange width up to 180mm is standard and covers more than 80% of all requirements. Conversion to Type B is for where beam widths are needed more than 180mm up to 300mm and can easily be accomplished.

The trolley wheels are designed for a maximum beam incline of up to 14% (DIN 1025-Part1), Excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings. The hoist has an integrated anti-drop and anti-tilt devices as standard. The combination of the yalelift 360 and a low headroom manual trolley provides, even more, flexibility than the standard yalelift 360.

  • 500 - 5000kg lifting capacity
  • Fitted with integral low headroom push travel trolley
  • Featuring Yale's unique Yalelift 360 chain hoist
  • Anti drop and tilt devices as standard
  • Optional rubber buffers, chain container, overload device, beam locking device and corrosion resistant model available on request

Capacity Falls of Load Chain Lifting Height Beam Width Type A Beam Width Type B Closed Height mm Weight
A
Weight
500kg 1 3m 60-180mm 180-300mm 188mm 27kg 27kg
1000kg 1 3m 70-180mm 180-300mm 211mm 35kg 36kg
2000kg 1 3m 82-180mm 180-300mm 264mm 61kg 62kg
3000kg 1 3m 100-180mm 180-300mm 316mm 107kg 109kg
5000kg 2 3m 110-180mm 180-300mm 425mm 152kg 156kg
10000kg 3 3m 125-180mm 180-310mm 565mm - -
