In stock
SKU: GRE000046

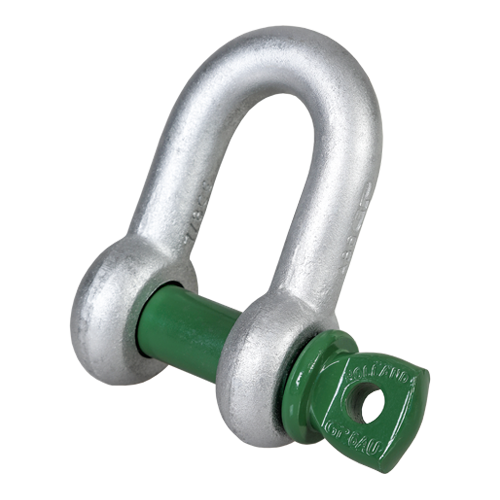

Green Pin Standard Dee Shackles With Screw Collar Pin

From: £2.99
  • Up to 55 Tonne Capacity
  • Up to 2-1/2 Inch in Nominal Size
  • All markings fully forged at time of manufacture
Final Configuration Price:
From: £2.99
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Green Pin Standard Dee Shackles are of the highest quality on the market. Manufactured in Holland, Green Pin are highly respected throughout the rigging industry.

  • Grade 6 high tensile steel, quenched and tempered.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
  • Temperature range -20 ° C upto +200 ° C.
  • Up to 55 Tonne Capacity
  • Up to 2-1/2 Inch in Nominal Size
  • All markings fully forged at time of manufacture

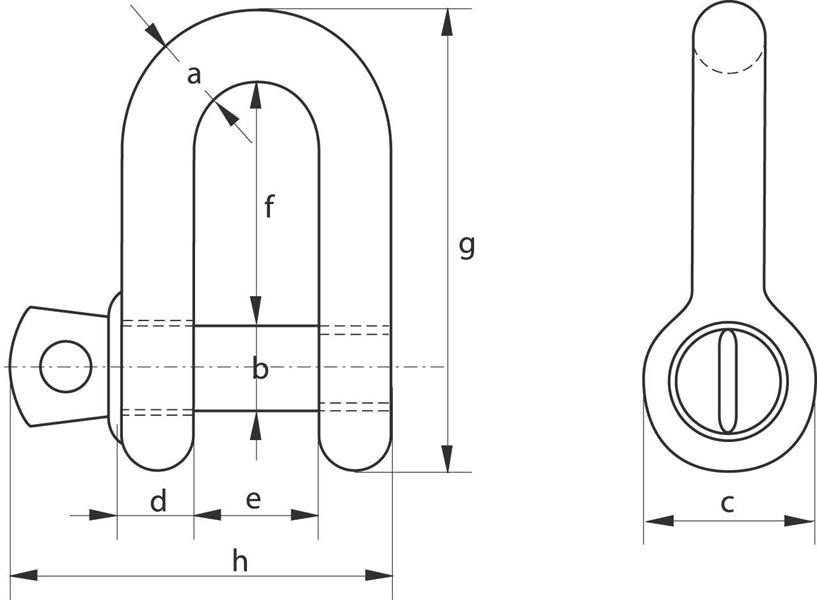

Code

WLL

(Tonnes)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

G

(mm)

H

(mm)

Weight

(Kgs)

A0201 0.33 5 6 12.5 5 9.5 19 38 31 0.02
A0202 0.50 7 8 17 7 12 22 47 40 0.05
A0203 0.75 9 10 21 9 13.5 26 56 49 0.09
A0204 1.00 10 11 23 10 17 32 66 56 0.14
A0205 1.50 11 13 26 11 19 37 74 68 0.19
A0206 2.00 13.5 16 34 13.5 22 43 85 76 0.32
A0207 3.25 16 19 40 16 27 51 105 93 0.54
A0208 4.75 19 22 47 19 31 59 125 107 0.87
A0209 6.50 22 25 53 22 36 73 144 123 1.34
A0210 8.50 25 28 60 25 43 85 161 141 2.08
A0211 9.50 28 32 67 28 47 90 179 158 2.77
A0212 12.00 32 35 74 32 51 94 199 176 3.72
A0213 13.50 35 38 80 35 57 115 220 192 5.14
A0214 17.00 38 42 89 38 60 127 239 208 6.87
A0215 25.00 45 50 104 45 74 149 283 250 11.45
A0216 35.00 50 57 111 50 83 171 333 281 16.86
  42.50 57 65 134 57 95 190 360 321 24.61
A0217 55.00 65 70 145 65 105 203 399 355 32.65
