SKU: LES4154

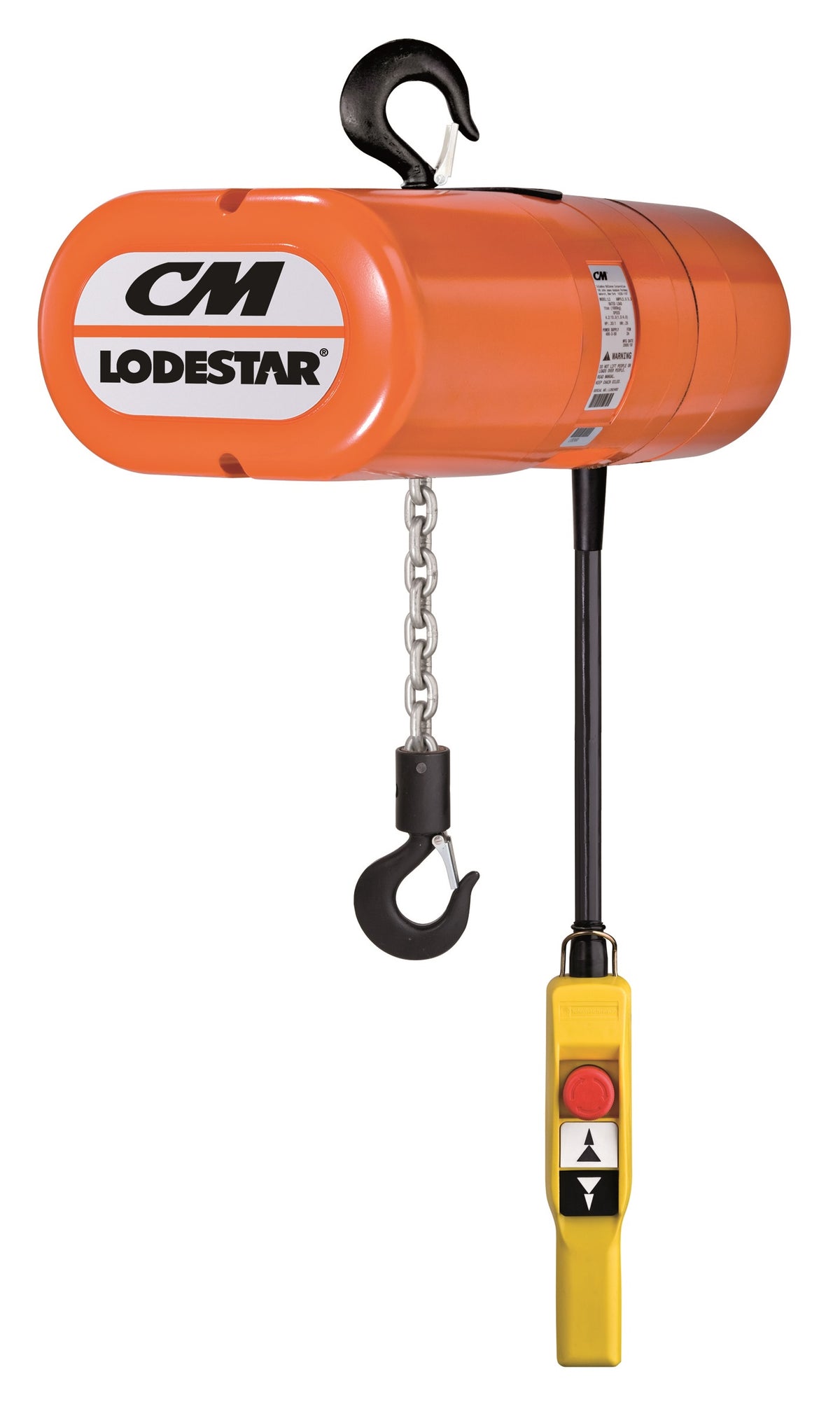

Lodestar Electric Chain Hoists

£2,083.67

Quick Overview:

  • Extremely robust Lodestar hoists are made to last
  • Fully enclosed aluminum casing makes each model rugged and lightweight.
  • Up to 3000kg capacity
  • Standard operating voltage:110v 1Ph 50Hz and 230v 1Ph 50Hz, 400v 3Ph 50Hz are available ex-Stock
  • Powered Travel Not Available In 230V Options
Final Configuration Price:
£2,083.67
Estimated time to dispatch
Estimated time to dispatch: Same Day Before 2pm
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00 from £9.99

Highlands Delivery: 1-2 Day Courier (after dispatch) for post codes LV, PH, KW1-14, PA37-39. from £35.00

UK Before 10:30AM: (please call first to check availability) from £25.00

UK Express Saturday Delivery: from £65.00

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man) from £45.00

Western Europe: (Netherlands, France, Belgium, Spain, Portugal) from £45.00

Eastern Europe: Price on Request

Rest of the world: Price on Request

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Perfectly suited and favored by the hire industry for its tough and durable construction which is designed to operate in the most aluminum applications. High duty and long heights of lift can easily be achieved with the CM Lodestar Electric Chain Hoist.

One of only a few hoists in the industry that is available in 110v and 230v single phase- ideal for building sites and applications where three phase power is not available.

* Powered Travel Not available in 230V options.

Quick Overview:

  • Extremely robust Lodestar hoists are made to last
  • Fully enclosed aluminum casing makes each model rugged and lightweight.
  • Up to 3000kg capacity
  • Standard operating voltage:110v 1Ph 50Hz and 230v 1Ph 50Hz, 400v 3Ph 50Hz are available ex-Stock
  • Powered Travel Not Available In 230V Options

  • Capacities from 250kg to 3,000kg
  • Available with hook suspension, push travel trolley or electric travel trolley
  • Lift speeds up to 8m/min (depending upon the capacity)
  • Electric trolley speeds- 1 speed (18m/min) 2 speed (18 & 4.5m/min)



Model Voltage Capacity (WLL) (kg)  Falls Of Load Chain Lifting Speed (m/min) Load Chain Depth x Pitch mm Hoist Motor kW
250C 230v 1Phase 250 1 8 6.3 x 18.9 0.37
250C 110v 1Phase 250 1 8 6.3 x 18.9 0.37
500F 230v 1Phase 500 1 4 6.3 x 18.9 0.37
500F 110v 1Phase 500 1 4 6.3 x 18.9 0.37
500J 230v 1Phase 500 1 8 7.9 x 21.7 0.75
500J  110v 1Phase 500 1 8 7.9 x 21.7 0.75
1000L 230v 1Phase 1000 1 4 7.9 x 21.7 0.75
1000L 110v 1Phase 1000 1 4 7.9 x 21.7 0.75
1000LL 400v 3Phase 1000 1 8 7.9 x 21.7 0.75
1000LL2 400v 3Phase 1000 1 8/2.5 7.9 x 21.7 0.75
2000R 230v 1Phase 2000 2 2 7.9 x 21.7 0.75
2000R 110v 1Phase 2000 2 2 7.9 x 21.7 0.75
2000RR 400v 3Phase 2000 2 4 7.9 x 21.7 0.75
2000RR2 400v 3Phase 2000 2 4/1.3 7.9 x 21.7 0.75
3000RT 230v 1Phase 3000 3 1.33 7.9 x 21.7 0.75
3000RT 110v 1Phase 3000 3 1.33 7.9 x 21.7 0.75

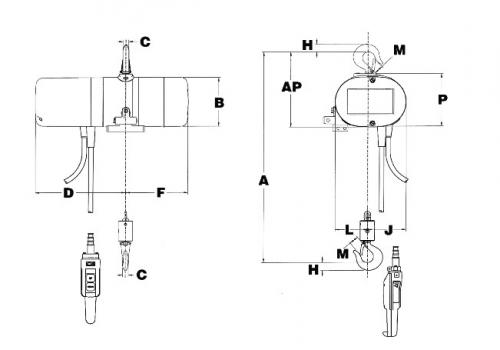

Model Lodestar250/500 Lodestar 500/1000 Lodestar2000 Lodestar 3000
Frame Type A,B,C,F, And AA J, L, JJ, And LL R, RR RT
A (mm) 413 471 613 750
B (mm) 156 194 194 194
C (mm) 17 22 28 28
D (mm) 279 241 241 241
F (mm) 197 271 271 271
H (mm) 25 30 38 38
J (mm) 100 138 165 165
L (mm) 122 184 157 157
M (mm) 25 28 33 33
P (mm) 168 198 198 198
AP (mm) 235 271 284 319
