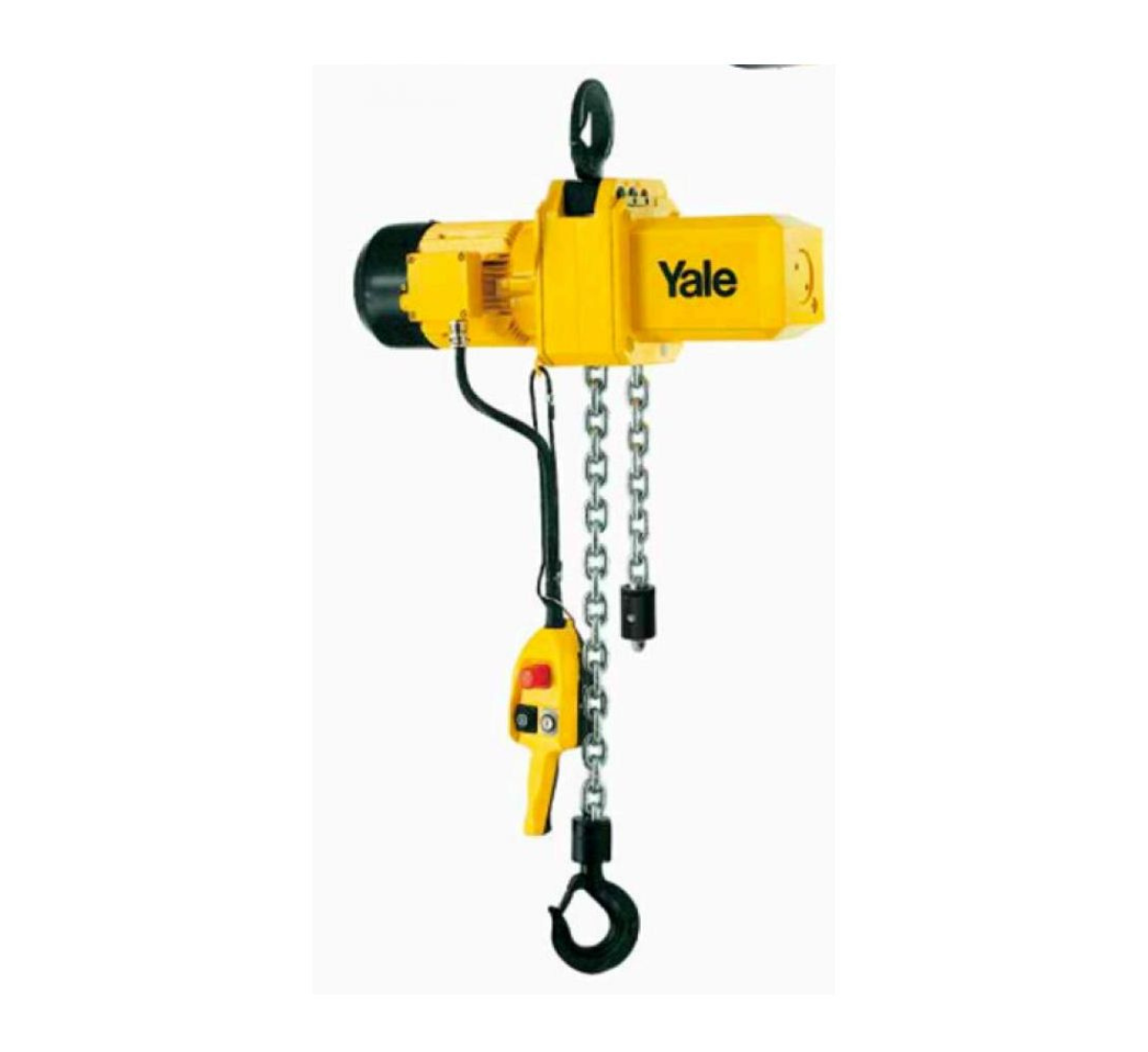

Yale CPE 400v Electric Chain Hoist

£3,698.56
Final Configuration Price:
£3,698.56
Estimated time to dispatch
Estimated time to dispatch: 2-3 Days
  • We Accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Shipping & Delivery

We don't send anything by standard post, all of our deliveries are by trusted couriers which are fully traceable to ensure your orders arrive safe and on time.

Delivery Prices & Transit Times

Delivery costs can be found at checkout.

EXPRESS DELIVERY - Next Working Day Courier, delivered between 08:30-17:00

Scottish Delivery: 1-2 Day Courier (after dispatch)

UK Before 10:30AM: (please call first to check availability)

UK Express Saturday Delivery: (please call first to check availability)

Click & Collect: Free!

Channel Islands: 1-3 Day Courier (Jersey, Guernsey and Isle of Man)

Western Europe: (Netherlands, France, Belgium, Spain, Portugal)

Eastern Europe: Find out in checkout

Rest of the world: Find out in checkout

DELIVERY CUT-OFF

  • For all orders placed by 2pm we will endeavour to dispatch same day for delivery the following day.
  • All orders after 2pm will dispatch the following working day.
  • For urgent shipments and 'last minute' requirements, please call our Sales Team -  it's always worth asking if we can still get it out the door today!

Please be aware that some of our products have a lead time, and therefore the quoted transit times above are only applicable after the goods have been dispatched. We always make it clear in the description if our products have a lead time.

We regret that we cannot provide time slots for deliveries unless you have selected pre 10:30AM delivery, all standard express deliveries are delivered between 08:30-17:00 the next working day from dispatch.

Collection of most goods can be made from our warehouse upon request. Did you know that we have a range of slings, shackles and hoists available for instant Click & Collect? While nearly all items on our website can be collected next working day! Call our sales team now on 01384567430

Flexible Payment
Choose from a range of payment options to suit you from Klarna to a credit account.
Same Day Dispatch
Place your order before 2:00pm Monday-Thursday to receive your order the next working day*
Best Rated
We are the best rated Lifting Company in the UK with 50 years of experience & knowledge
Price Match Guarantee
We always strive to be the best on price and never knowingly undersold

The Yale CPE in slang terms is the CPV's harder working brother. It is the heavy duty option of Yale's range. Built to last under heavy usage, this range can lift up to 10000kg (10TON), the standard length of load chain is three meters but this can be extended at a small cost.

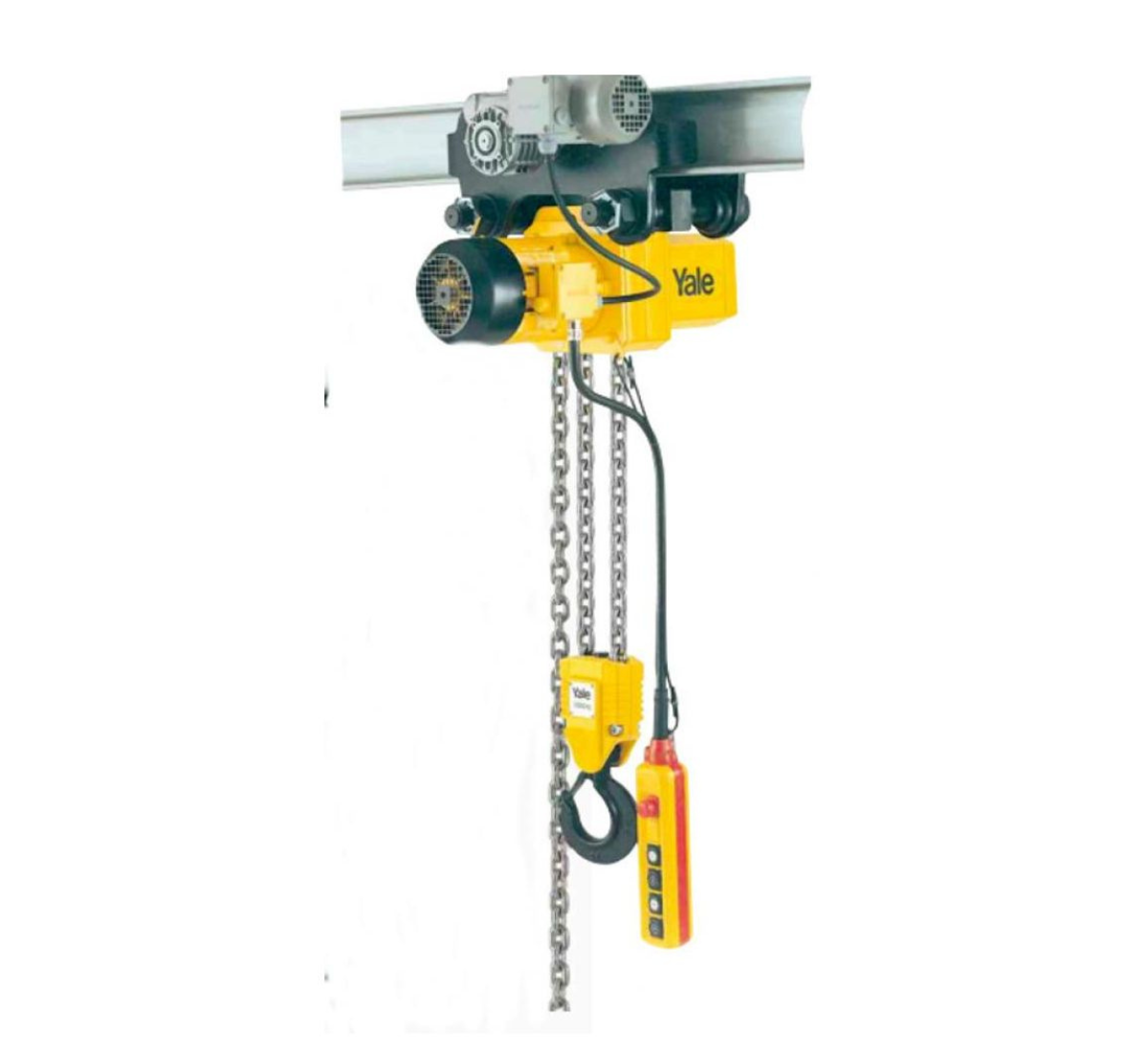

The ability to be suspended from existing beam clamps or trolleys using the secure top hook or be suspended using push, electric or geared trolleys. Electric trolleys can be specified in one or two speeds of travel to make transporting delicate items safer.

Slack chain can be easily hidden away and thus protecting your load by the addition of a chain container, starting from just £33 this small addition is a great tool to add. The addition of a plastic or metal box is secured on to the hoist unit just below where the excess chain is released, instead of the excess chain dangling down and potentially damaging your load it is carefully fed into the plastic or metal container and stored where it is clean and dry, free from damaging a load.

The 400v 3phase 50hz operation voltage fits perfectly with that of the industry standard, alternative voltages can be requested. The pendant control is connected via a 48v low voltage cable to increase safety efficiency. The motor is protected against dust and water jets to IP54 standards, insulation class F. The unit's motor is also fitted with biometric thermal protection.

The case hardened zinc plated load chain is combined perfectly with its 5-pocket load chain sheave, this ensures smooth precise chain motion. Complimented by the oil bath lubricated gearbox that "runs like a dream" also provides a low height overall.

Just three main components make this unit service friendly and inexpensive to maintain.



  • Extra height of lift upon request
  • Engineered for friendly cost effective service
  • Limit switches available as an option
  • Push, Geared and electric travel trolleys available
  • Dual speed option (extra) (travel and hoisting speeds)

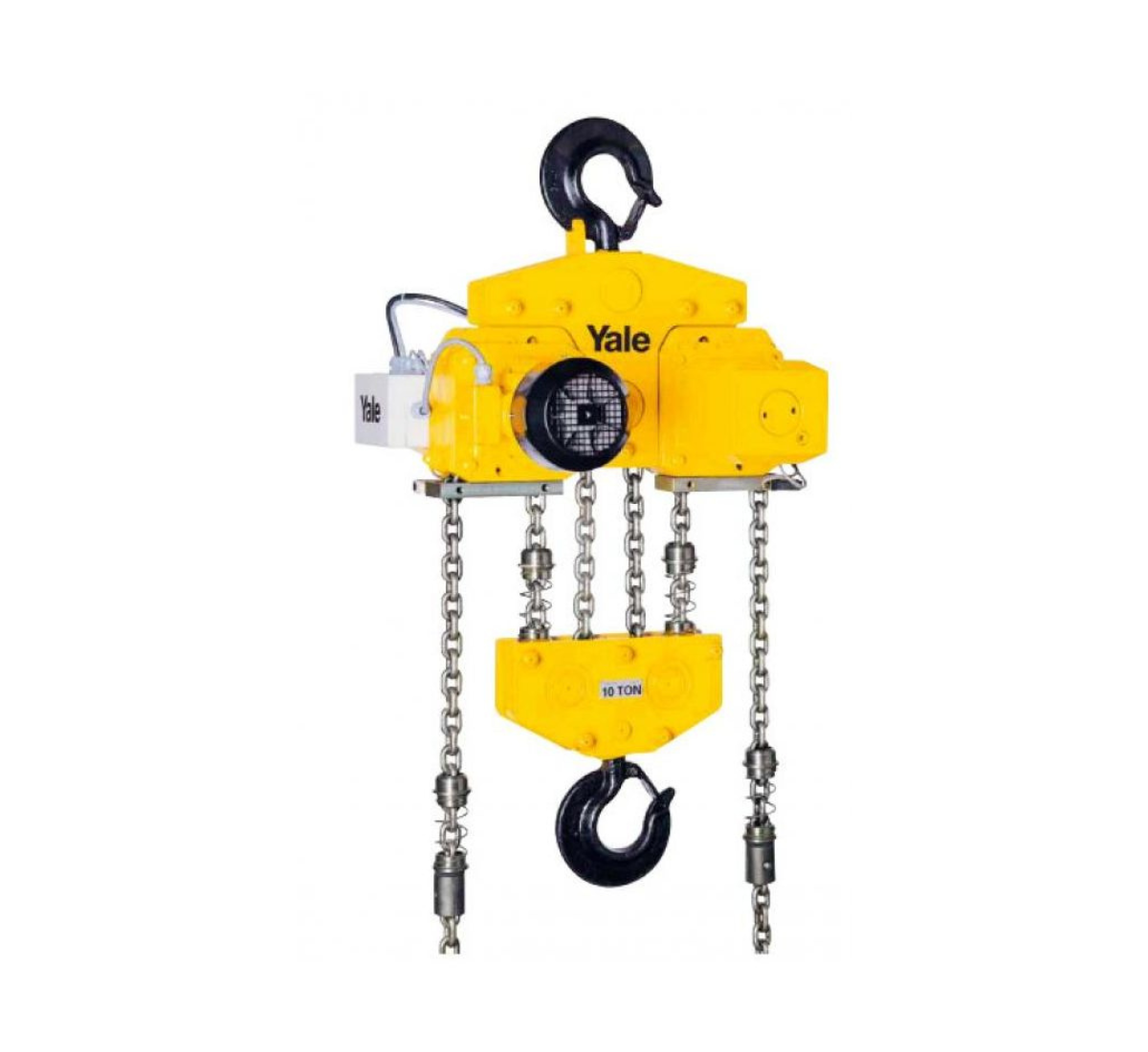

  • Models up to 10TON capacity
  • Low voltage pendant control
  • Radio control option (extra)



If you have any queries please don't hesitate to give us a call on 01384 567430

  • Extra height of lift upon request
  • Engineered for friendly cost effective service
  • Limit switches available as an option
  • Push, Geared and electric travel trolleys available
  • Dual speed option (extra) (travel and hoisting speeds)
  • Models up to 10TON capacity
  • Low voltage pendant control
  • Radio control option (extra)

Model Capacity (kg) Chain Falls  Chain Dimensions d x p (mm) FEM Classification Lifting Speed (main) Lifting Speed (fine) Hoist Motor kW Motor Rating ED % Weight Suspension Hook (kg) Weight Push Trolley (kg Weight Electric Trolley (kg)
CPE 16-8 1600 1 11x31 1 Am 8 - 2.3 40 88 150 164
CPE/F 16-8 1600 1 11x31 1Am 8 2 2.3/0.58 40.20 93 155 169
CPE 20-8 2000 1 11x31 1Bm 8 - 2.8 25 88 150 164
CPE/F 20-8 2000 1 11x31 1Bm 8 2 2.8/0.7 25/15 93 155 169
CPE 25-5 2500 1 11x31 1Am 5 - 2.3 40 88 150 164
CPE/F 25-5 2500 1 11x31 1Am 5 1.25 2.3/0.58 40/20 93 155 169
CPE 30-5 3000 1 11x31 1Bm 5 - 2.8 25 88 150 164
CPE/F 30-5 3000 1 11x31 1Bm 5 1.25 2.8/0.7 25/15 93 155 169
CPE 32-4 3200 2 11x31 1Am 4 - 2.3 40 107 169 182
CPE/F 32-4 3200 2 11x31 1Am 4 1 2.3/0.58 40/20 112 174 187
CPE 40-4 4000 2 11x31 1Bm 4 - 2.8 25 107 169 182
CPE/F 40-4 4000 2 11x31 1Bm 4 1 2.8/0.7 25/15 112 174 187
CPE 50-2 5000 2 11x31 1Am 2.5 - 2.3 40 107 169 182
CPE/F 50-2 5000 2 11x31 1Am 2.5 0.6 2.3/0.58 40/20 112 174 187
CPE 75-2 7500 3 11x31 1Am 1.6 - 2.8 40 220 320 340
CPE/F 75-2 7500 3 11x31 1Am 1.6 0.4 2.8/0.58 40/20 226 32 346
CPE 100-2 10,000 4 11x31 1Am 2.5 - 2x2.3 40 282 N/A 406
CPE/F 100-2 10,000 4 11s31 1Am 2.5 0.6 2x2.3 / 0.58 40/20 287 N/A 411



Technical Data For Trolleys

Capacity (kg) Size Beam Flange Width B (mm) Beam Flange Thickness T Max. (mm) Curve Radius Min. (m) Electric Trolley Travel Speed m/min at 50 Hz Electric Trolley Motor kW at 50 Hz
1600-5000 A 98-180 27 2.0 11 or 11/2.8 0.37 or 0.3/0.09
1600-5000 B 180-300 27 1.8 11 or 11/2.8 0.37 or 0.3/0.09
7500- 10,000 B 125-310 40 1.8 5 or 5/1.25 0.55 or 0.55/0.12
